LP5-E2K32R

OTTLP5_E2K32R
Heilind Number:OTTLP5-E2K32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-E2K32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

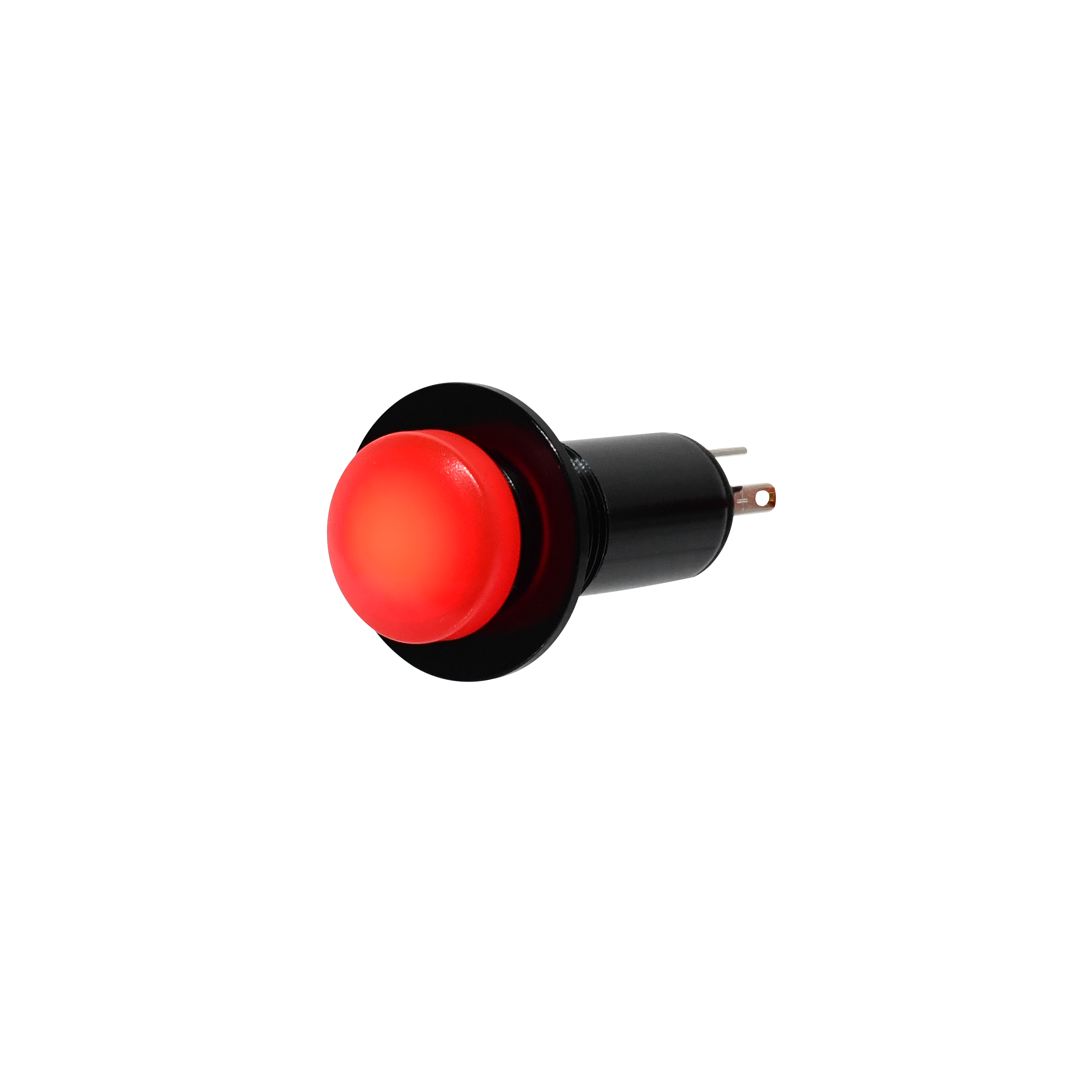

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-E2K32R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.44 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-E2K32R

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch, LP5-E2K32R, is a high-performance panel-mounted switch designed for reliable operation in demanding environments. Featuring a durable aluminum housing and a sealed construction with an IP6K8S rating, this switch is built to withstand harsh conditions. The exposed dome button actuator with red translucent cap provides tactile feedback and easy visibility, while the silver-plated brass contacts ensure efficient electrical conductivity. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and an illumination voltage of 24V, this switch is suitable for a wide range of applications. The SPDT contact configuration and On-On switch function offer versatility in use. Operating temperature ranges from -55°C to 85°C, making it ideal for both indoor and outdoor use. With a durability rating of 25,000 cycles, this switch guarantees long-lasting performance. Ideal for use in industries requiring high reliability and performance, the LP5 Series is a top choice for push button switches.
