LP5-E2K32W

OTTLP5_E2K32W
Heilind Number:OTTLP5-E2K32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-E2K32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

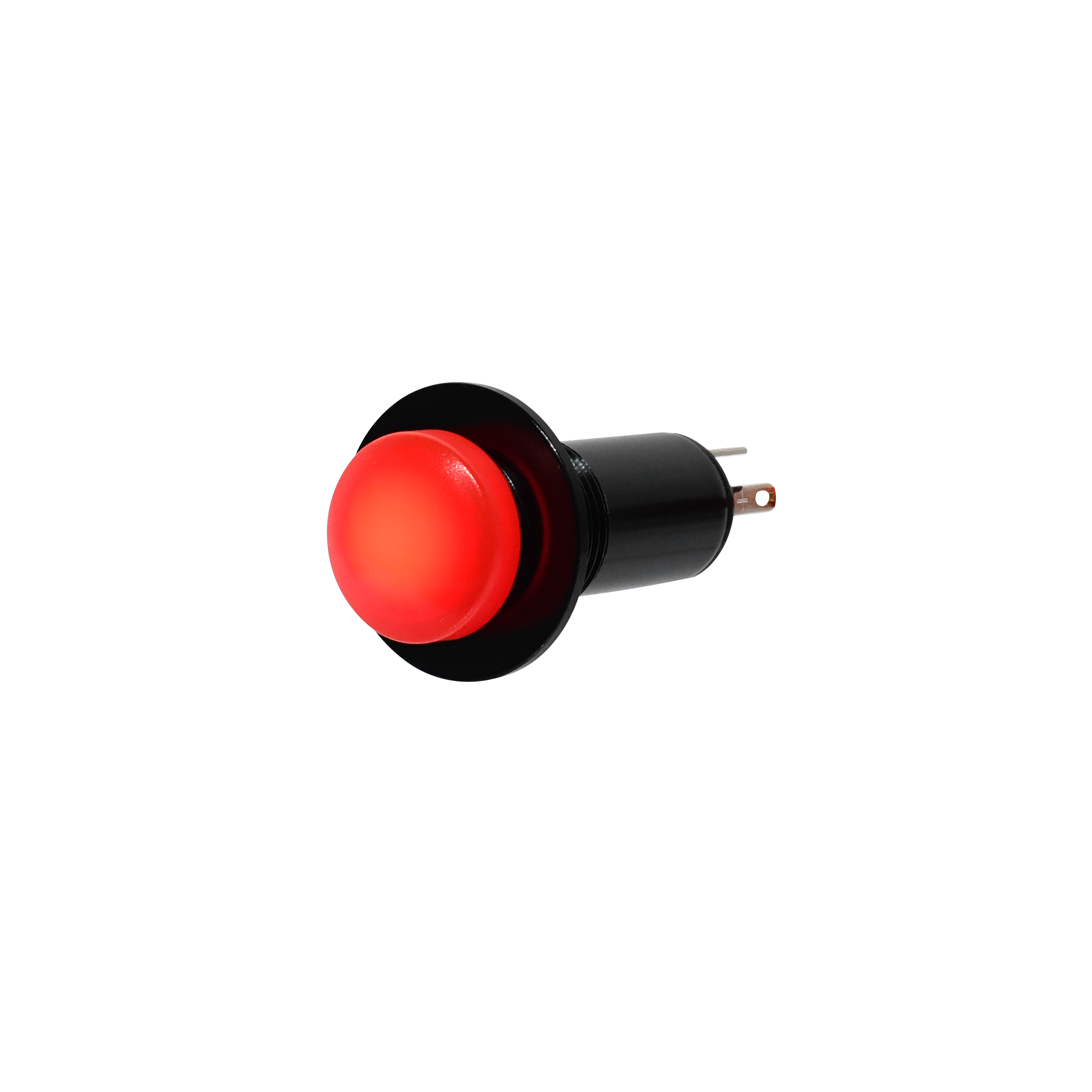

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-E2K32W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.44 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-E2K32W

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch, with SKU LP5-E2K32W, combines durability and reliability for seamless panel-mounted operation. Featuring a sleek black aluminum housing and a white translucent cap, this switch offers a modern aesthetic. The exposed dome button actuator, made of thermoplastic, ensures comfortable and efficient use. With an IP6K8S rating, it guarantees protection against dust and water ingress, suitable for various environments. The red LED illumination, powered by 24V, enhances visibility. Operating between -55°C to 85°C, and with a 25,000 cycle durability rating, it's built to withstand demanding conditions. The SPDT contact configuration, silver-plated brass contacts, and 5A current rating ensure optimal performance. Ideal for applications requiring a reliable illuminated pushbutton switch.
