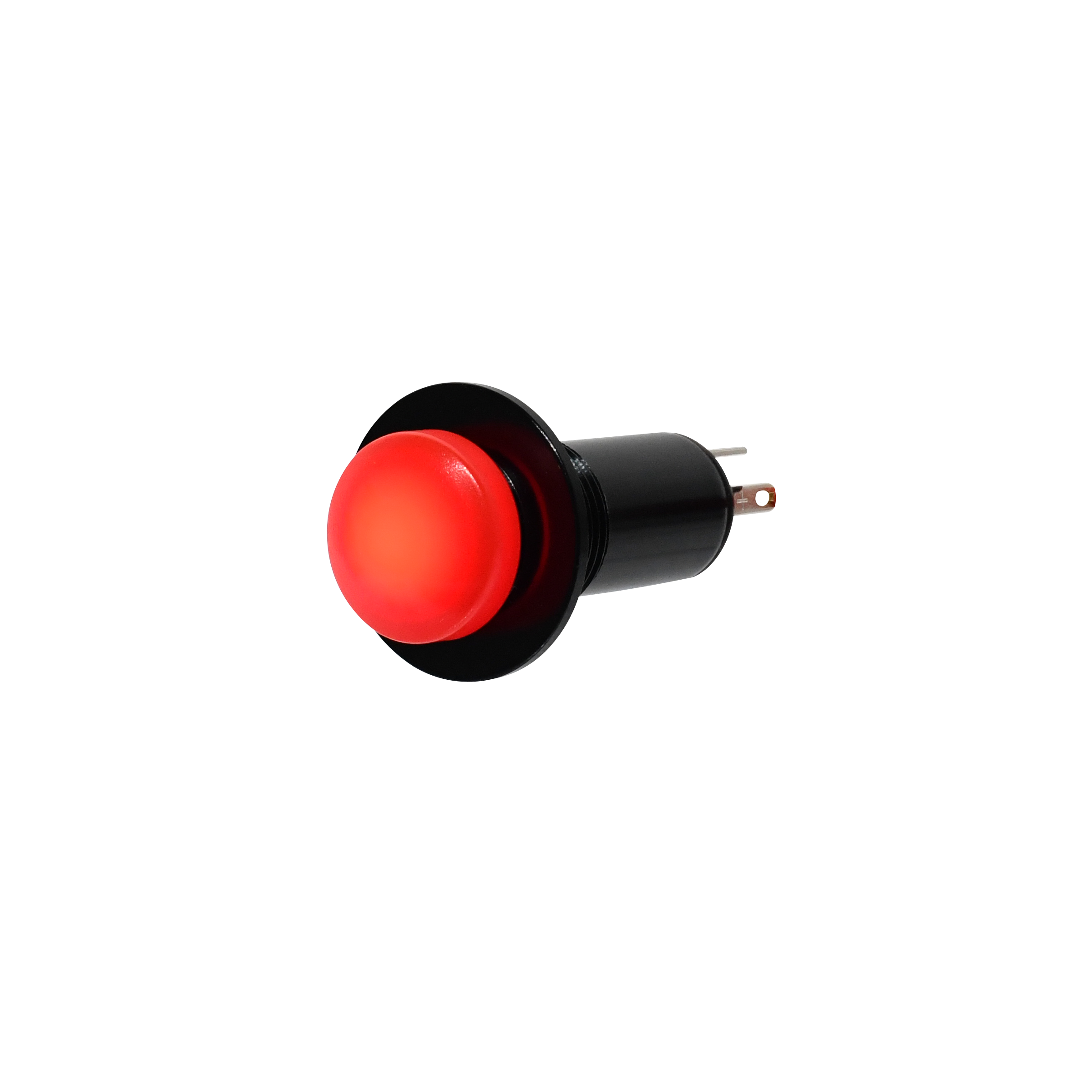

LP5-E2V32W

OTTLP5_E2V32W
Heilind Number:OTTLP5-E2V32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-E2V32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-E2V32W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Exposed Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.44 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP5-E2V32W

Detailed Description

Introducing the LP5 Series Illuminated Alternate Action Pushbutton Switch, engineered for reliable performance in demanding environments. Featuring a durable aluminum housing with a sleek black finish and a white translucent button, this panel-mount switch is designed for seamless integration. The exposed dome button, made of thermoplastic, offers a responsive touch. With an IP6K8S rating, it ensures protection against dust and water ingress. The deep green illumination, powered by a 12V voltage, enhances visibility. This SPDT switch with a contact rating of 5A at 115VAC/28VDC is suitable for various applications. With a high durability rating of 25,000 cycles and an operating temperature range of -55°C to 85°C, it guarantees long-lasting performance. Perfect for use in automotive, industrial, and aerospace settings, the LP5E2V32W is a versatile and reliable component.
