LP5-F1A31W-L1

OTTLP5_F1A31W_L1
Heilind Number:OTTLP5-F1A31W-L1
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F1A31W-L1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

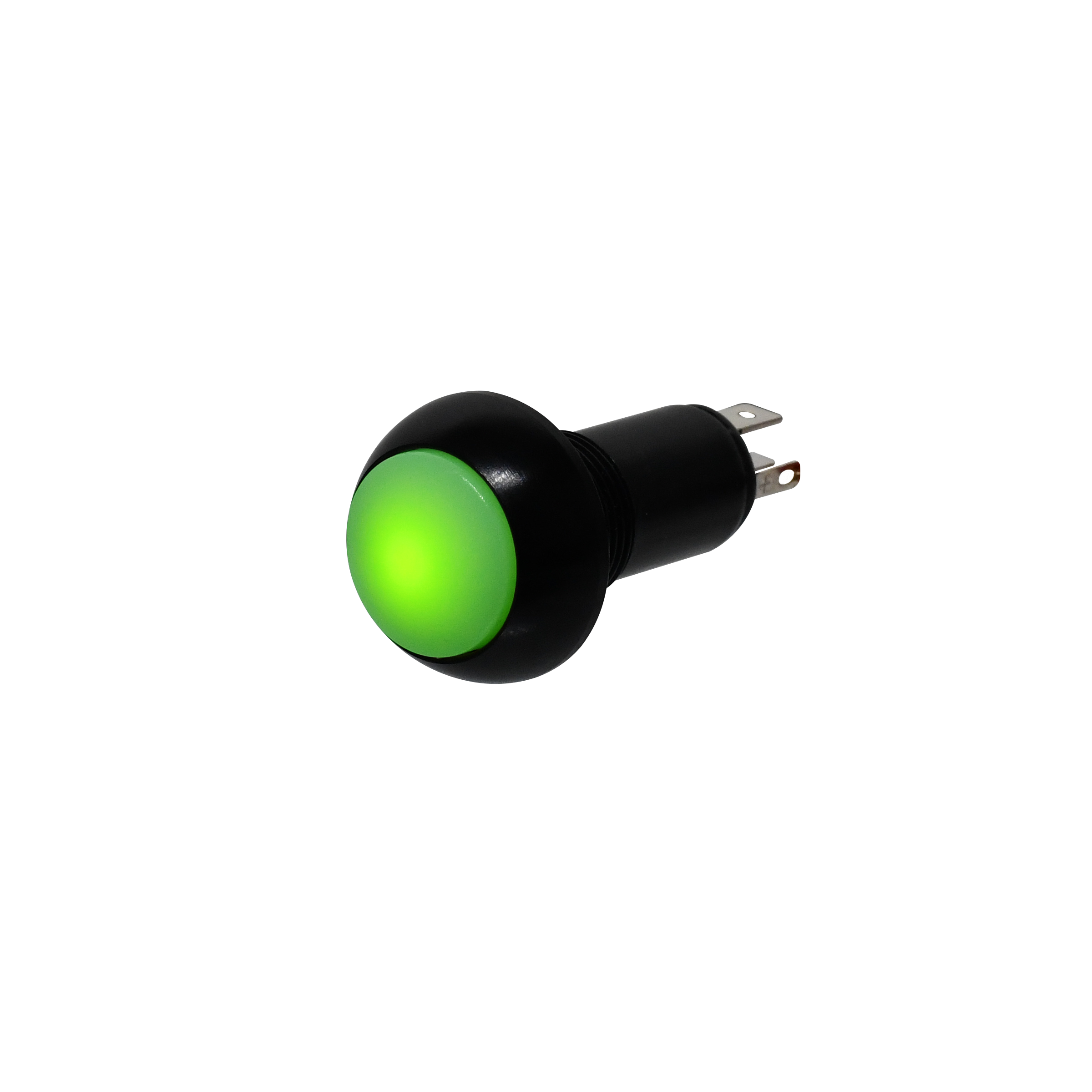

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F1A31W-L1
Series:LP5
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-F1A31W-L1

Detailed Description

Introducing the LP5-F1A31W-L1, a high-performance illuminated pushbutton switch designed for seamless operation in demanding environments. With a durable aluminum housing and a translucent white cap, this switch offers both durability and visual appeal. Boasting an IP6K8S rating, it ensures reliable performance even in harsh conditions. The red illuminated button, powered by a 2V voltage, provides clear indication of activation. Featuring a SPST-NO contact configuration and a 5A current rating, it guarantees efficient electrical control. Ideal for panel mounting, this switch is perfect for applications requiring a sleek and reliable interface. Trusted for its 25,000 cycle durability and wide operating temperature range from -55°C to 85°C, the LP5-F1A31W-L1 is a top choice for critical systems where performance is paramount. Elevate your control solutions with this premium-grade pushbutton switch.
