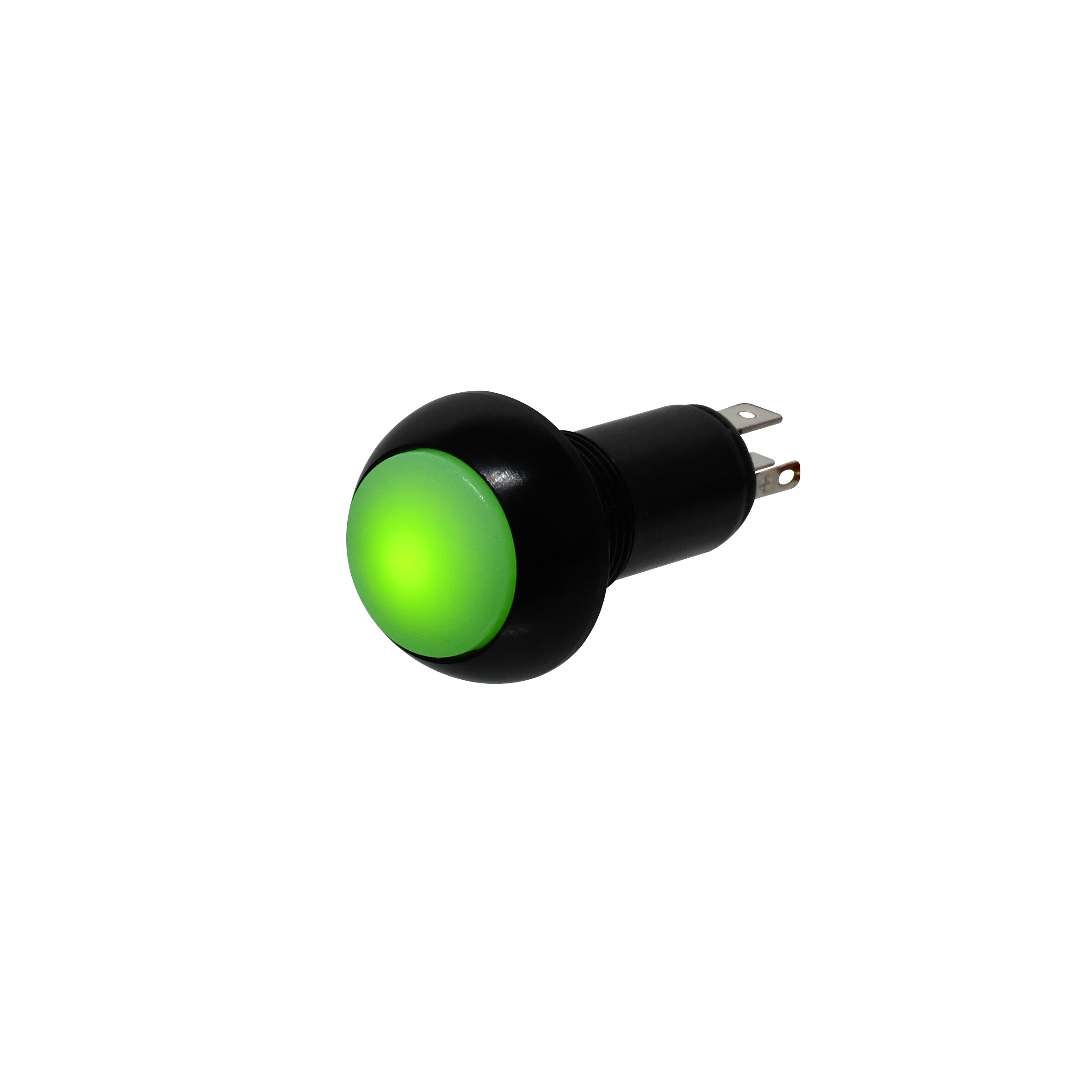

LP5-F1A32R

OTTLP5_F1A32R
Heilind Number:OTTLP5-F1A32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F1A32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F1A32R
Series:LP5
Cap Color:Red - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-F1A32R

Detailed Description

The LP5 series Illuminated Alternate Action Pushbutton Switch ( LP5-F1A32R) in striking Red Translucent cap color offers reliable performance in demanding environments with its IP6K8S sealing. Featuring a durable Aluminum housing and Thermoplastic actuator, this Panel Mount switch ensures longevity. The Raised Dome Button actuator with a Round shape and Illuminated design enhances user experience. With a current rating of 5A and SPST-NO contact configuration, it guarantees efficient operation. The switch, with a voltage rating of 115VAC/28VDC, is suitable for various applications. Its Silver-plated Brass contacts and solder termination provide secure connections. Operating temperature ranging from -55°C to 85°C and a durability rating of 25,000 cycles make it ideal for industrial use. Perfect for control panels and machinery, this high-quality product is a versatile solution for your switching needs.
