LP5-F1C32A

OTTLP5_F1C32A
Heilind Number:OTTLP5-F1C32A
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F1C32A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

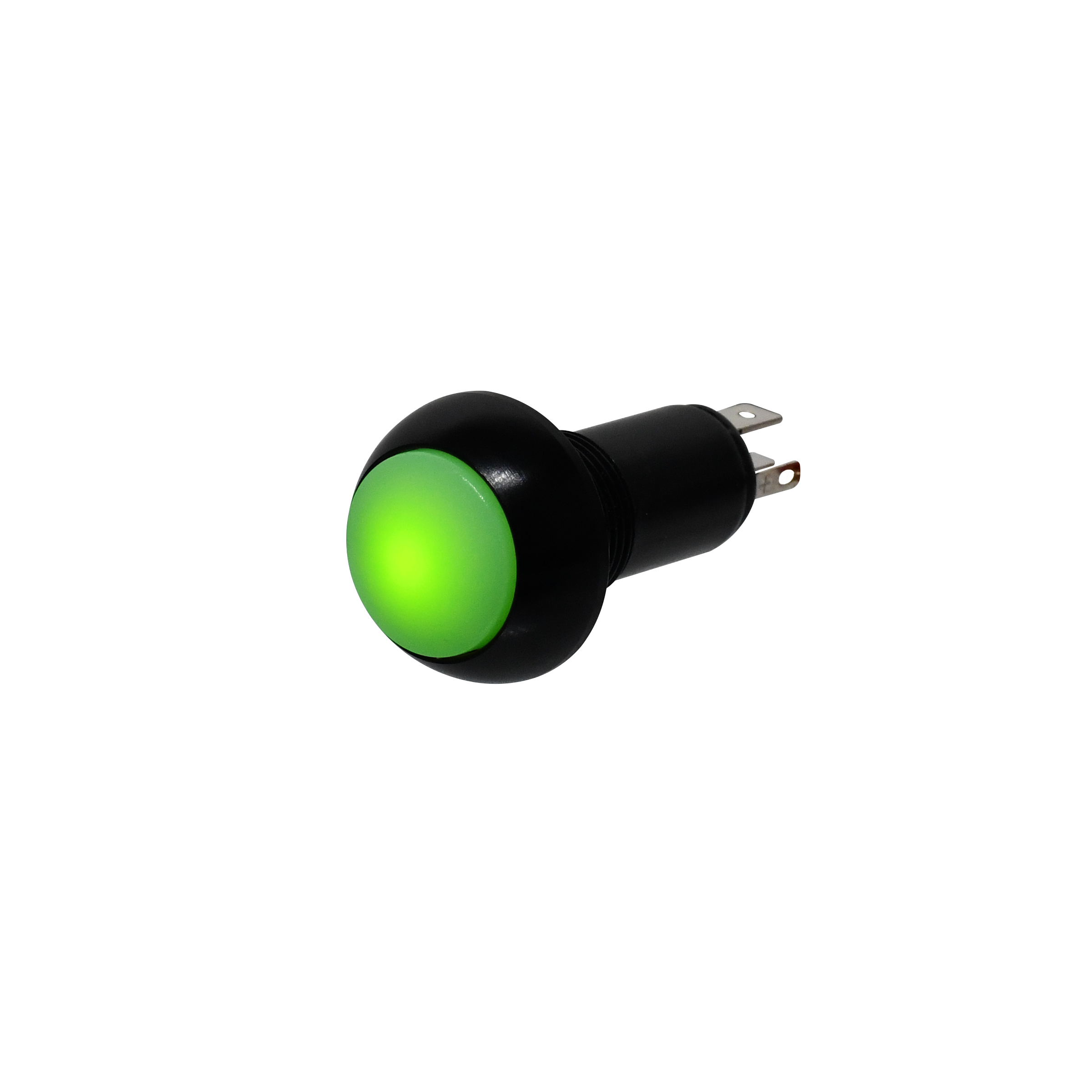

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F1C32A
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP5-F1C32A

Detailed Description

The LP5 series illuminated push button switch, SKU LP5-F1C32A, offers reliable performance in demanding environments. With a durable aluminum housing and a sealed design, it ensures longevity even in harsh conditions. Featuring a raised dome button actuator in amber translucent color, it provides tactile feedback and visibility. The SPST-NO contact configuration with silver plating and brass contact material guarantees efficient electrical connectivity, while the solder termination type allows for secure installation. Rated for 5A current, 115VAC, and 28VDC voltage, this switch is suitable for various applications. Its IP6K8S rating certifies its resistance to dust and water ingress, making it ideal for industrial use. With an illumination voltage of 2V and an illumination color matching the actuator, it enhances visibility in low-light settings. Operating between -55°C to 85°C, with a durability rating of 25,000 cycles, this switch offers reliable performance in a wide range of temperatures. Whether for control panels, machinery, or automotive applications, the LP5F1C32A is a versatile and dependable choice.
