LP5-F1E32W

OTTLP5_F1E32W
Heilind Number:OTTLP5-F1E32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F1E32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

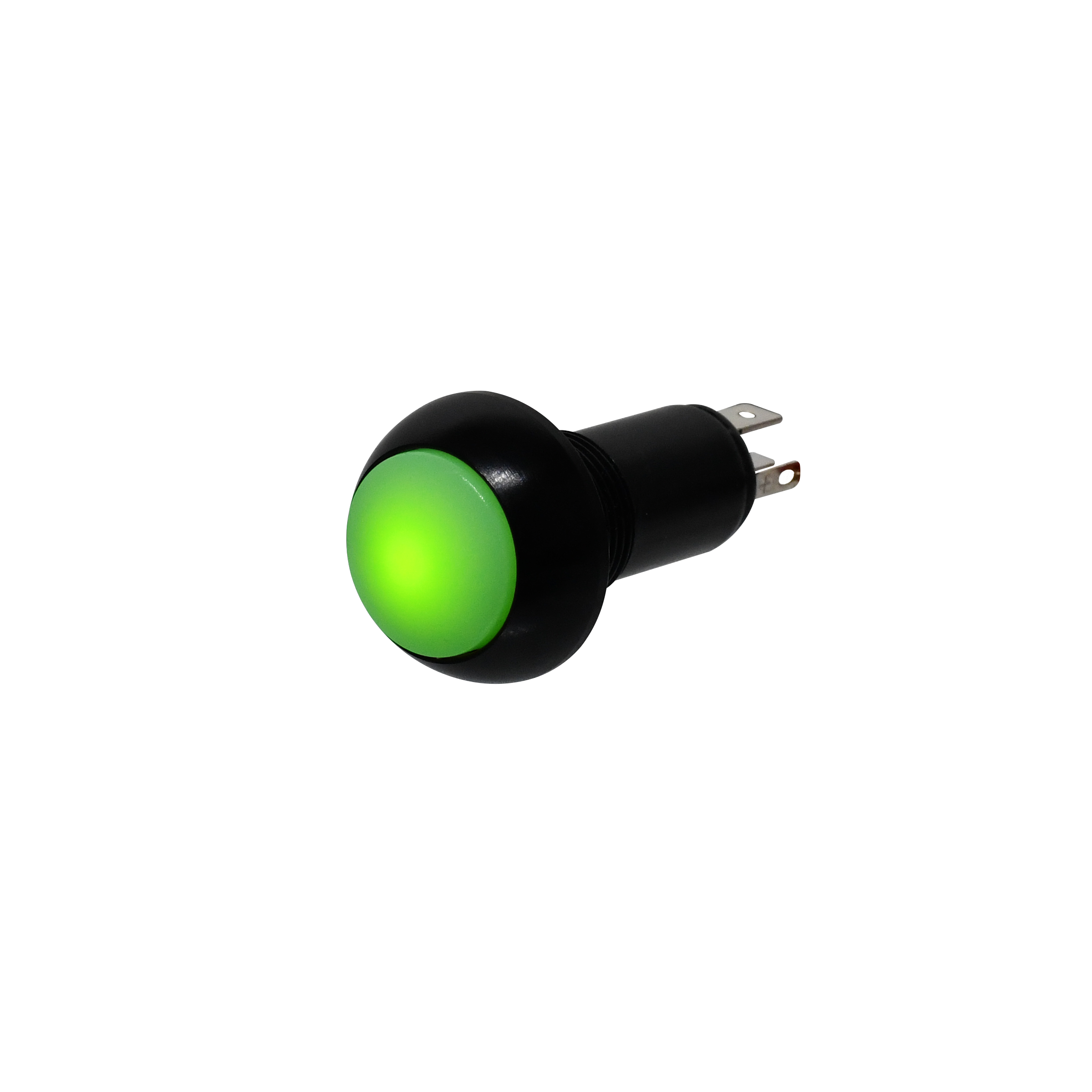

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F1E32W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:6 V
SKU:OTTLP5-F1E32W

Detailed Description

Meet the LP5 series Illuminated Alternate Action Pushbutton Switch with SKU LP5-F1E32W. Designed for durability with a rating of 25,000 cycles, this high-performance switch features a white translucent button with green illumination for easy visibility. Perfect for panel mounting, it boasts an IP6K8S rating, ensuring protection against dust and water ingress. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and a wide operating temperature range from -55°C to 85°C, this switch is suitable for various applications. The SPST-NO contact configuration and silver contact plating guarantee reliable performance. Crafted from aluminum and thermoplastic, it offers robust construction. Trust the LP5F1E32W for dependable and illuminated switching in industrial settings.
