LP5-F1J22A

OTTLP5_F1J22A
Heilind Number:OTTLP5-F1J22A
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F1J22A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

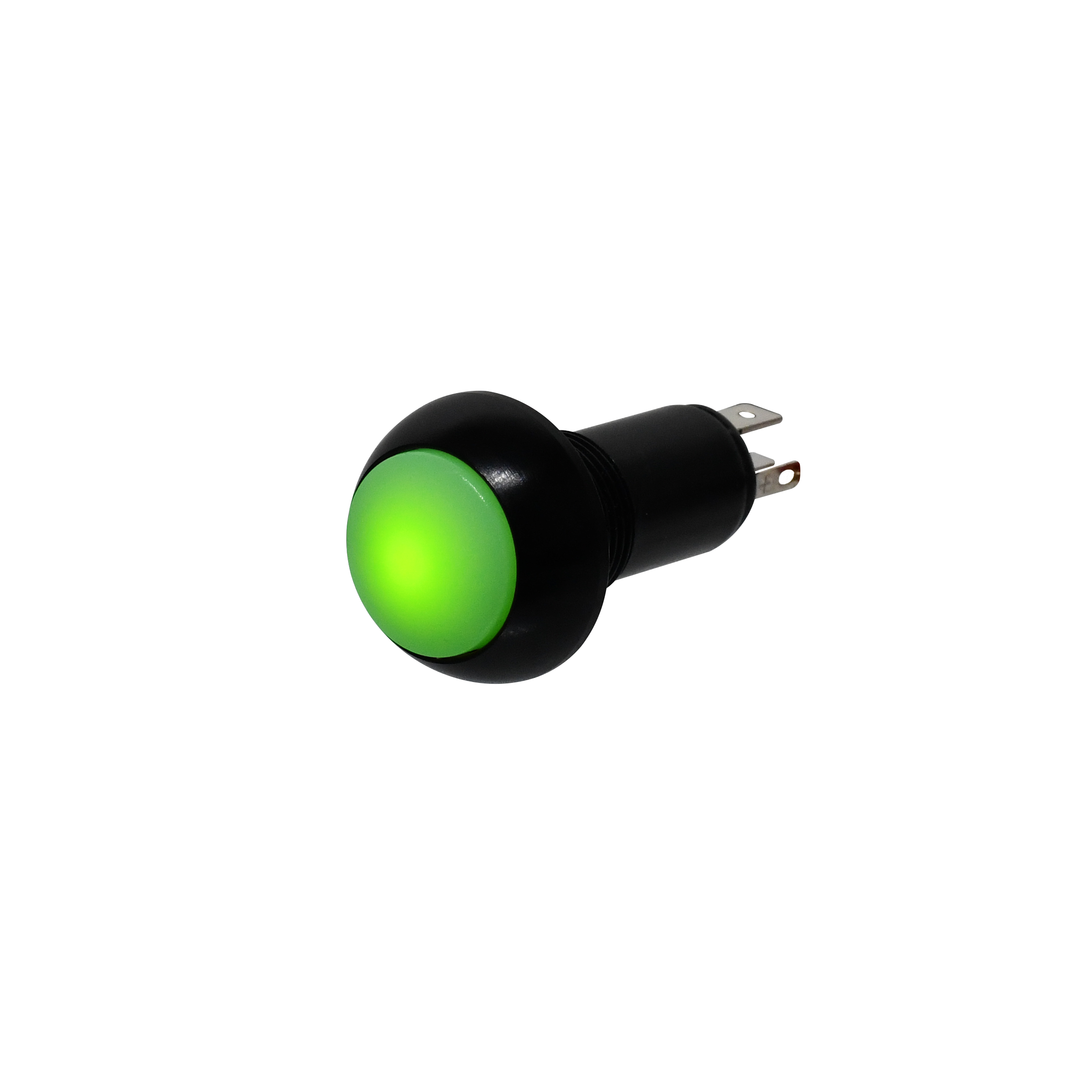

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F1J22A
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP5-F1J22A

Detailed Description

Introducing the LP5 Series Illuminated Push Button Switch, model LP5-F1J22A, a high-performance component designed for reliable operation in demanding environments. Featuring a durable thermoplastic button with a raised dome actuator, this switch offers a tactile and responsive interface. The amber translucent cap and silver contact plating not only enhance visibility but also ensure efficient conductivity. With an IP6K4S rating for dust and water resistance, along with a wide operating temperature range from -55°C to 85°C, it is suitable for use in diverse applications. The SPST-NO contact configuration and 5A current rating provide versatility, while the 25,000 cycle durability rating guarantees long-lasting performance. Ideal for panel mounting, this switch is easy to install and offers a sleek design with a black aluminum housing. Whether in industrial machinery or consumer electronics, the LP5F1J22A is the perfect choice for illuminated, alternate-action switching.
