LP5-F2J32A

OTTLP5_F2J32A
Heilind Number:OTTLP5-F2J32A
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F2J32A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

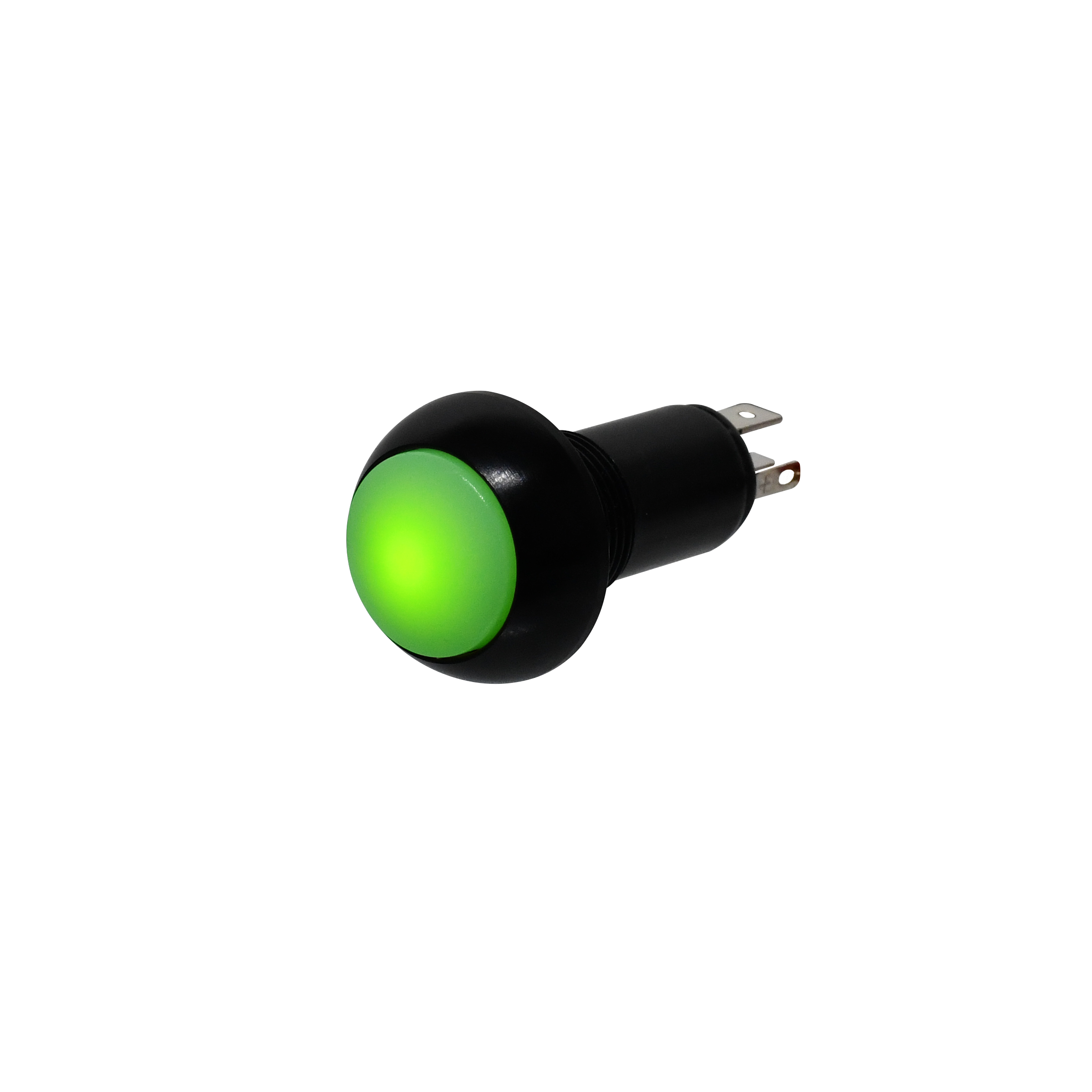

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F2J32A
Series:LP5
Cap Color:Amber - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Silver
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-F2J32A

Detailed Description

Introducing the LP5 series Illuminated Alternate Action Pushbutton Switch, SKU LP5-F2J32A. This high-quality switch features a durable thermoplastic actuator with a raised dome button, ensuring reliable performance in demanding environments. The Amber-translucent cap and Illumination provide clear visual feedback. The SPDT contact configuration with Silver-plated Brass contacts guarantees efficient conductivity. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and an IP6K8S rating, this switch is suitable for various applications. Panel mountable with solder termination, it offers easy installation. The Aluminum housing and sealed construction ensure longevity, with a durability rating of 25,000 cycles. Operating temperature ranges from -55°C to 85°C, making it versatile for use. Ideal for industrial and commercial settings, the LP5F2J32A is a reliable solution for your switching needs.
