LP5-F2K32R

OTTLP5_F2K32R
Heilind Number:OTTLP5-F2K32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F2K32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

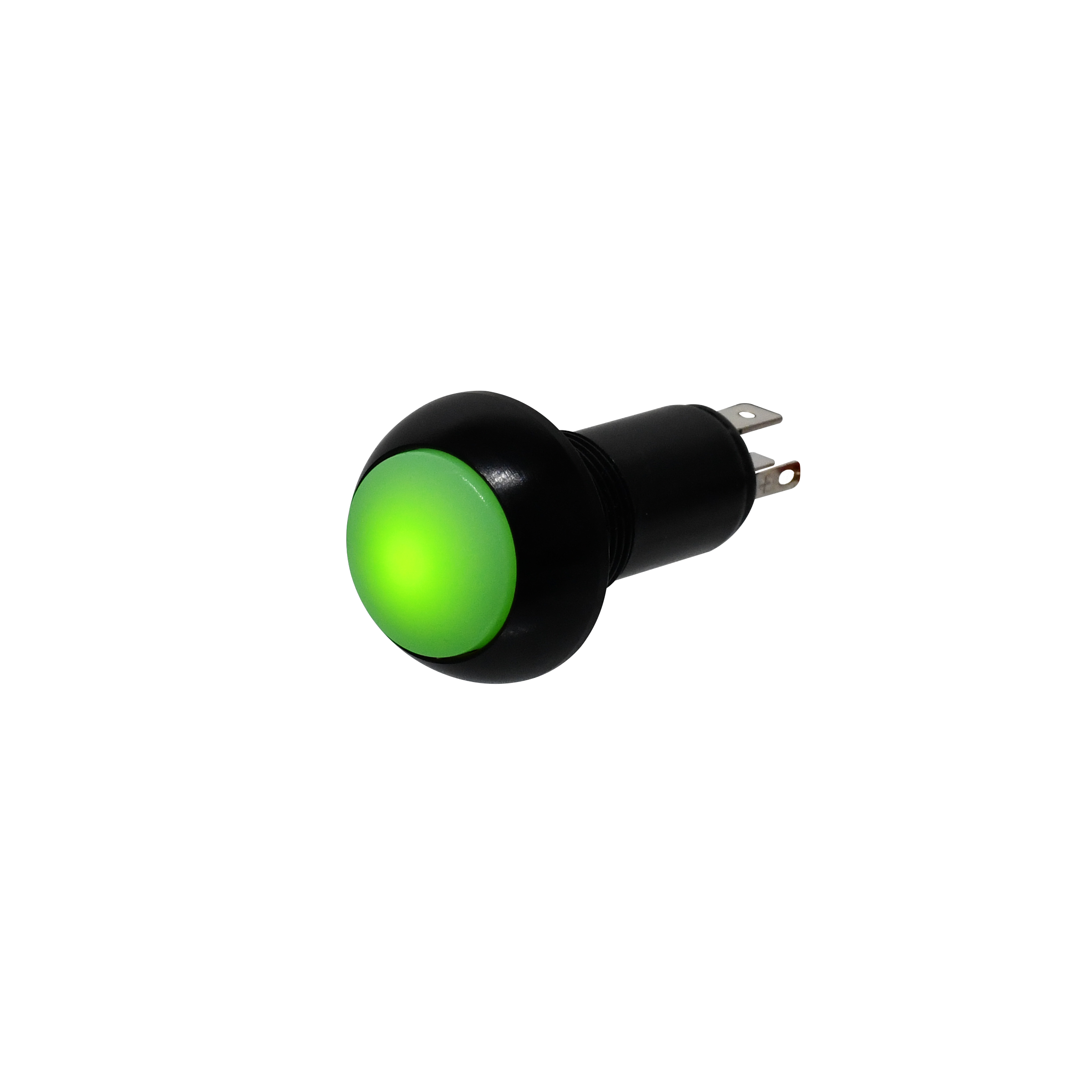

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F2K32R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.51 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-F2K32R

Detailed Description

Introducing the LP5F2K32R, a highly durable and reliable illuminated pushbutton switch designed for demanding environments. With its red translucent cap and black case, this switch not only offers visual appeal but also meets IP6K8S standards for dust and water resistance. The raised dome button actuator, made of thermoplastic, ensures comfortable and precise operation. Featuring a silver-plated brass contact material and sealed housing, this switch guarantees longevity with a durability rating of 25,000 cycles. Its SPDT contact configuration and On-On switch function make it versatile for various applications. Rated for 115VAC and 28VDC, with a 24V illumination voltage, this switch is suitable for both AC and DC circuits. From industrial machinery to automotive panels, the LP5F2K32R is the ideal choice for reliable and illuminated pushbutton control.
