LP5-F2L32W

OTTLP5_F2L32W
Heilind Number:OTTLP5-F2L32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F2L32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

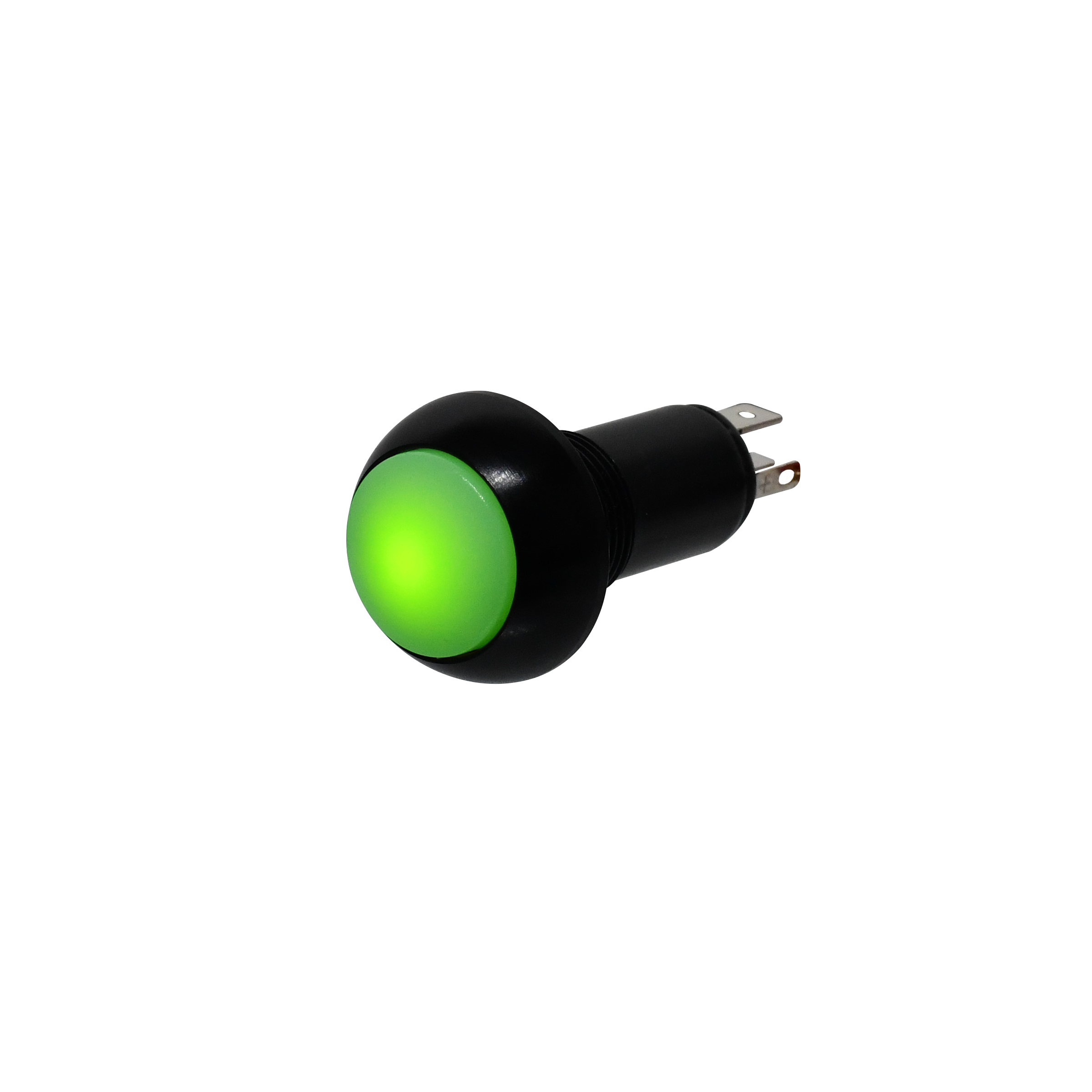

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F2L32W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.51 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-F2L32W

Detailed Description

Introducing the LP5 series Illuminated Alternate Action Pushbutton Switch, SKU LP5-F2L32W. This high-quality switch features a White-Translucent cap and durable Black housing, perfect for panel mounting applications. With an IP6K8S rating and sealed construction, it ensures reliable performance in demanding environments. The raised dome Button actuator, made of Thermoplastic, offers a tactile response. Operating at 115 VAC and 28 VDC, with a 5A current rating, it is suitable for various power systems. The SPDT contact configuration with Silver plating on Brass contacts guarantees efficient conductivity. Illuminated by a Green LED with a 24V voltage, it provides visual feedback. With a durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, this switch is both reliable and versatile. Upgrade your control panel with the LP5F2L32W for seamless operation in industrial, automotive, or aerospace applications.
