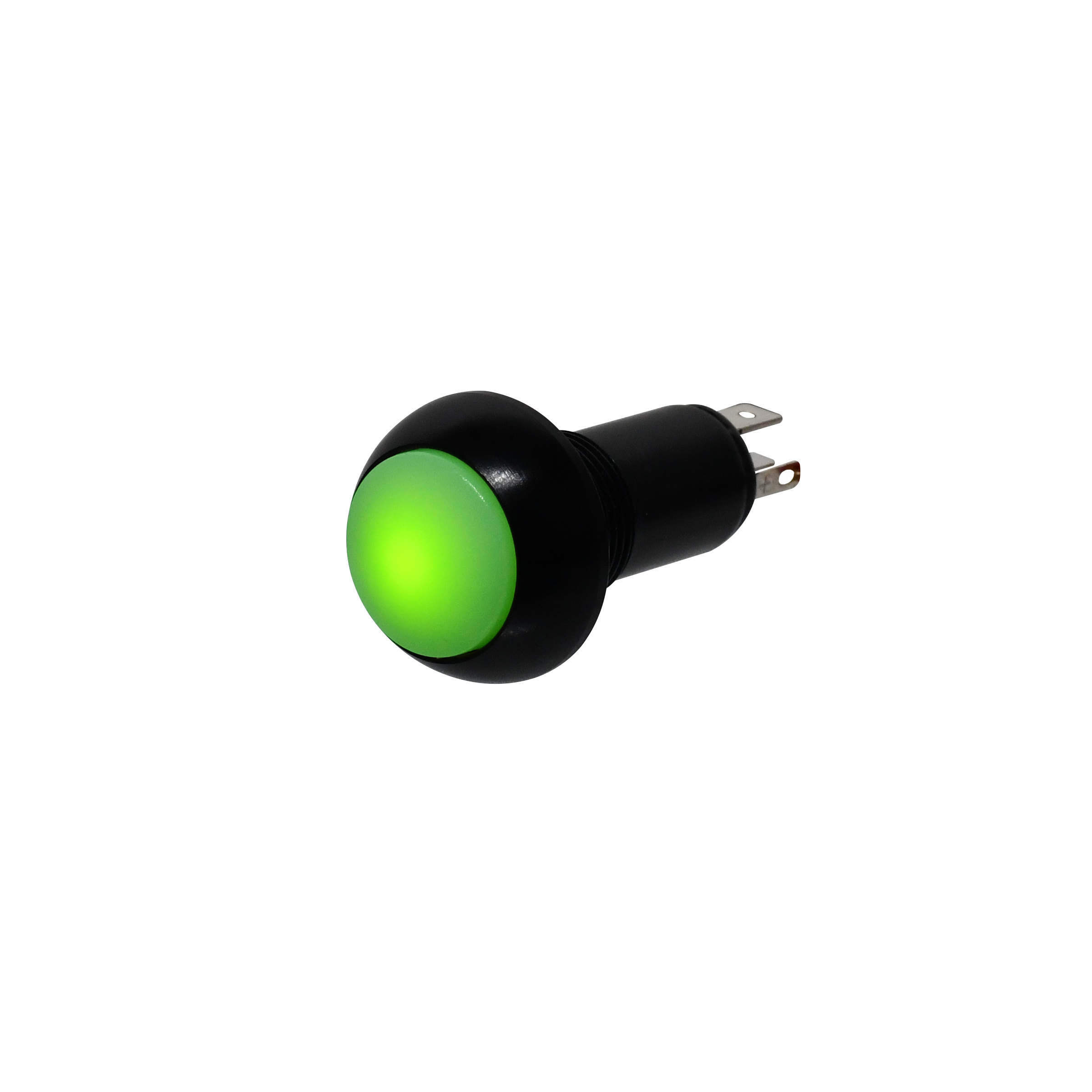

LP5-F2M22A

OTTLP5_F2M22A
Heilind Number:OTTLP5-F2M22A
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F2M22A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F2M22A
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Amber - Translucent
Actuator Length:.51 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP5-F2M22A

Detailed Description

The LP5 Series Push Button Switch in Amber Translucent is a high-performance component designed for reliable operation in demanding environments. Featuring an IP6K4S rating for superior dust and moisture resistance, this switch is perfect for industrial applications. The illuminated button with a raised dome actuator ensures easy visibility and tactile feedback. With a current rating of 5A, silver contact plating, and brass contact material, it guarantees efficient and durable performance, with a lifespan of 25,000 cycles. The SPDT contact configuration and On-On switch function provide versatile functionality. Panel mount installation, solder termination, and an aluminum housing make it easy to integrate into systems. Operating within a wide temperature range from -55°C to 85°C and with voltage ratings of 115VAC and 28VDC, it offers reliable operation in various conditions. Trust the LP5 Series for a dependable and long-lasting push button switch solution.
