LP5-F3A32W

OTTLP5_F3A32W
Heilind Number:OTTLP5-F3A32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F3A32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

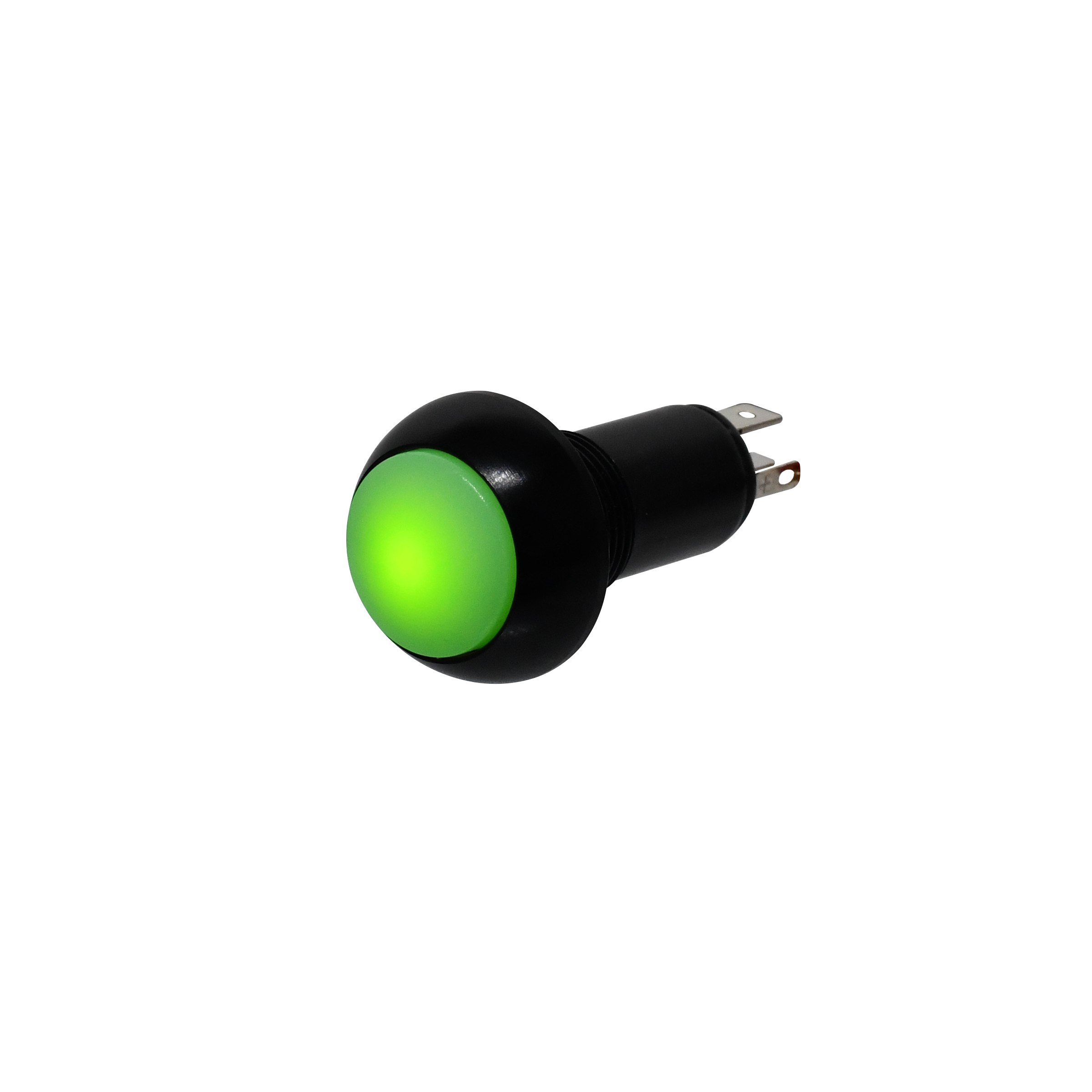

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F3A32W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP5-F3A32W

Detailed Description

Introducing the LP5 series Illuminated Alternate Action Pushbutton Switch, SKU LP5-F3A32W. Featuring a sleek design with a white translucent cap and a durable black housing, this panel-mount switch is perfect for various applications. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The raised dome button actuator, made of thermoplastic, ensures a comfortable and responsive user experience. Its gold-plated brass contacts guarantee high conductivity and a long lifespan of up to 200,000 cycles. The red illumination, powered by 2 VDC, adds a visual indicator for easy operation. With a SPST-NO contact configuration and a current rating of 10-100 mA, this switch is ideal for Off-On functions. From industrial machinery to consumer electronics, the LP5F3A32W is a versatile and dependable choice.
