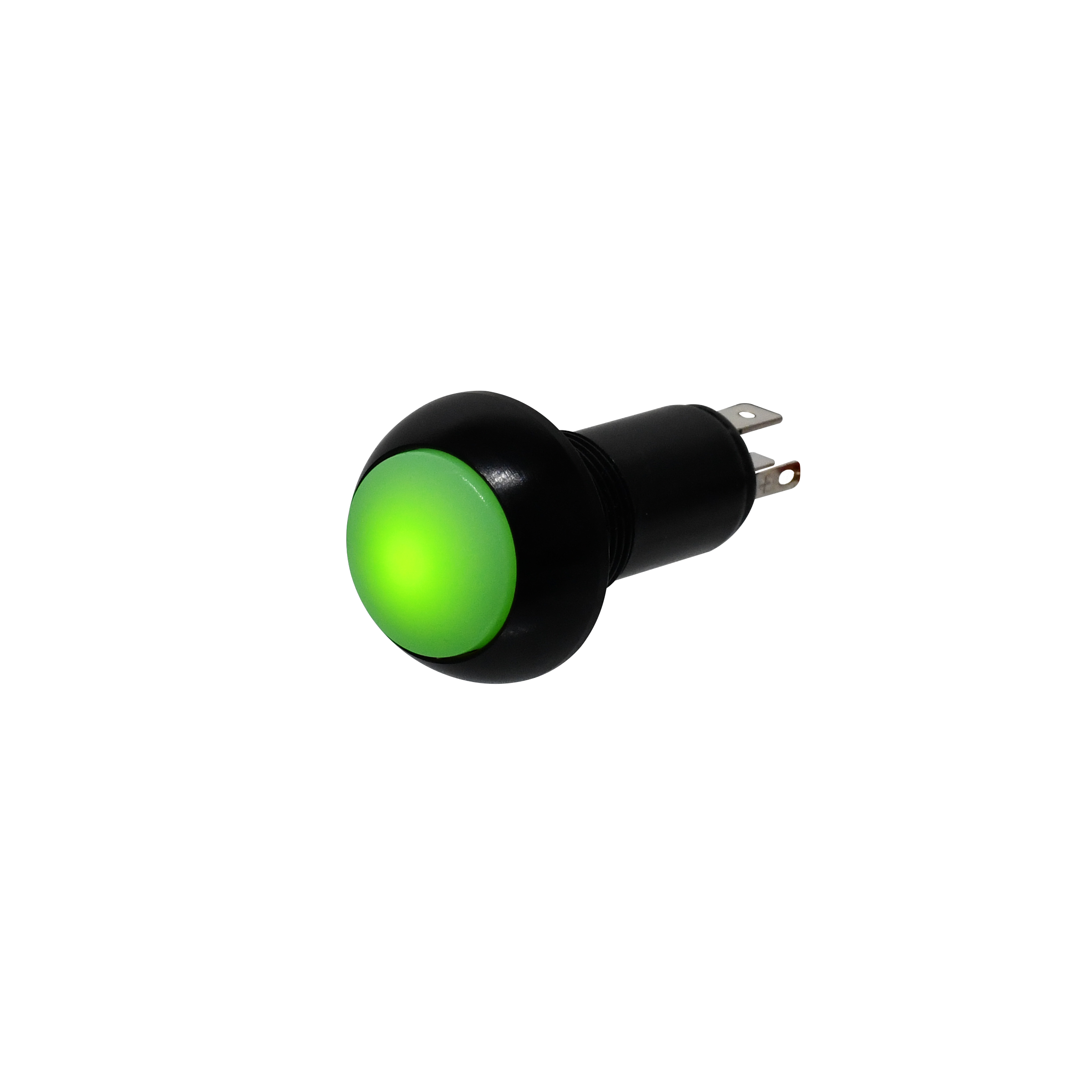

LP5-F3K22R

OTTLP5_F3K22R
Heilind Number:OTTLP5-F3K22R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F3K22R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F3K22R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-F3K22R

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch in Red Translucent with a Black case is a reliable and durable component for panel-mount applications. Featuring a raised dome round button actuator, this switch offers a tactile response with a current rating of 10-100mA. Its sealed construction with an IP6K4S rating ensures protection against dust and water ingress, while the gold-plated contacts guarantee reliable performance over 200,000 cycles. With a voltage rating of 3-28VDC and an illumination voltage of 24V, the switch provides clear red illumination. Ideal for various industries, including automotive and industrial automation, the LP5F3K22R is a high-quality component that operates efficiently in temperatures ranging from -55°C to 85°C. Upgrade your control panels with this premium pushbutton switch.
