LP5-F3L32W-B2

OTTLP5_F3L32W_B2
Heilind Number:OTTLP5-F3L32W-B2
Manufacturer:OTTO Controls
Manufacturer Number:LP5-F3L32W-B2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

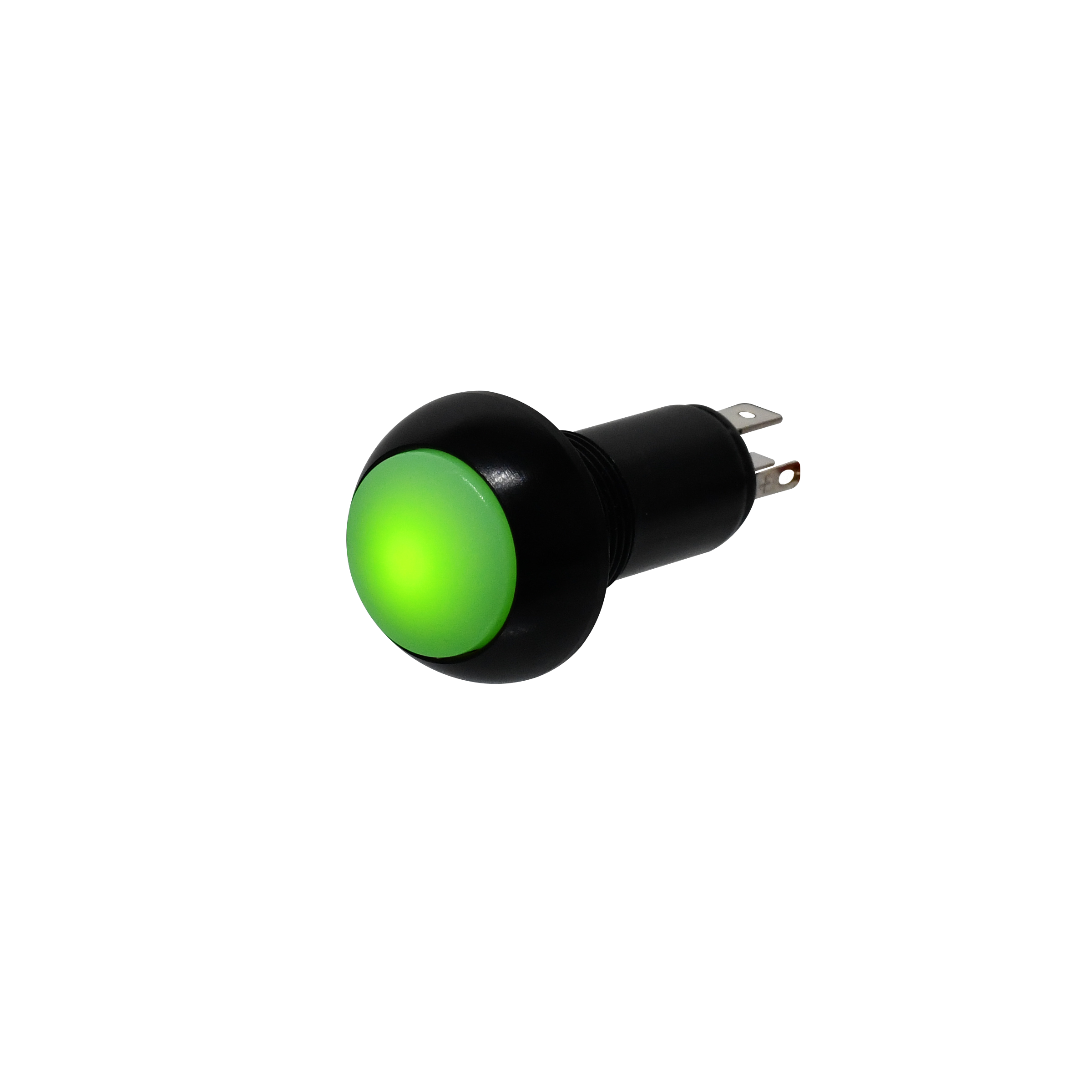

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-F3L32W-B2
Series:LP5
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Gold
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):200,000 Cycles
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-F3L32W-B2

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch, SKU LP5-F3L32W-B2, boasts a sleek design with a White Translucent cap and Black case, perfect for panel mounting. Featuring a durable construction with an aluminum housing and thermoplastic actuator, this sealed switch is ideal for a wide range of applications. Its Off-On switch function and SPST-NO contact configuration ensure reliable performance. The green illumination, powered by 24 VDC, adds a visual cue to its operation. With a high durability rating of 200,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch guarantees long-lasting functionality even in harsh environments. Meeting IP6K8S standards for dust and water resistance, it ensures reliable operation in challenging conditions. Perfect for use in various industries, from automotive to industrial automation, the LP5F3L32WB2 is a versatile and dependable choice for your switching needs.
