LP5-R1G22R

OTTLP5_R1G22R
Heilind Number:OTTLP5-R1G22R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-R1G22R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

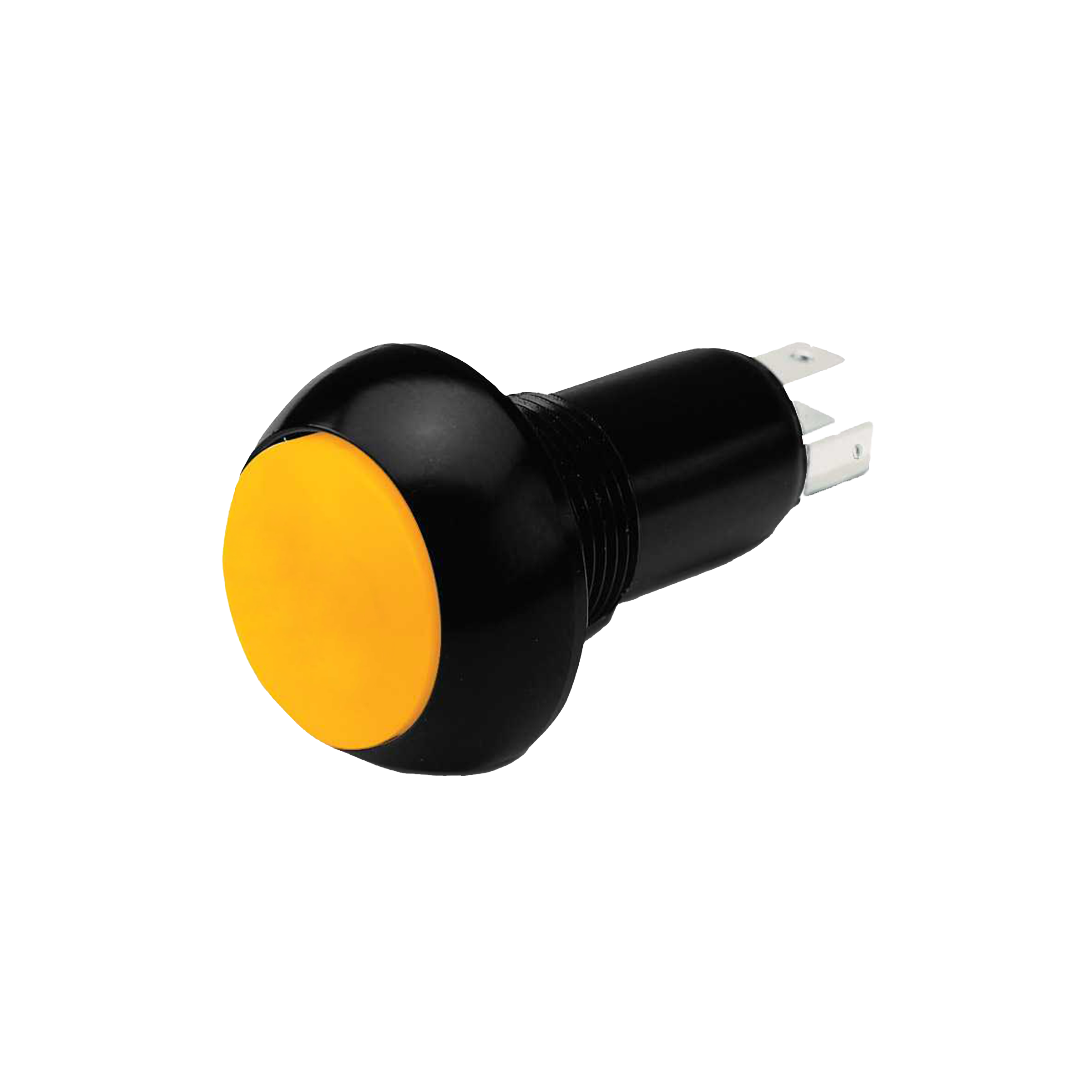

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-R1G22R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.51 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-R1G22R

Detailed Description

The LP5 series push button switch, SKU LP5-R1G22R, offers reliable performance with its sealed construction and durable components, perfect for demanding environments. Featuring a raised dome button actuator and round shape, it provides tactile feedback and ease of operation. The red translucent cap and illuminated function make it highly visible, with a red LED light indicating its status. With a contact configuration of SPST-NO and silver-plated brass contacts, it ensures efficient electrical connectivity. This switch has a current rating of 5A and voltage ratings of 115VAC and 28VDC, suitable for a variety of applications. Its aluminum housing and thermoplastic actuator material guarantee durability, while the solder termination type allows for secure installation. With an IP6K4S rating and an operating temperature range from -55°C to 85°C, it is reliable in harsh conditions. The LP5R1G22R is a versatile and high-performance push button switch, ideal for industrial and commercial use.
