LP5-R1M32W-R2

OTTLP5_R1M32W_R2
Heilind Number:OTTLP5-R1M32W-R2
Manufacturer:OTTO Controls
Manufacturer Number:LP5-R1M32W-R2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

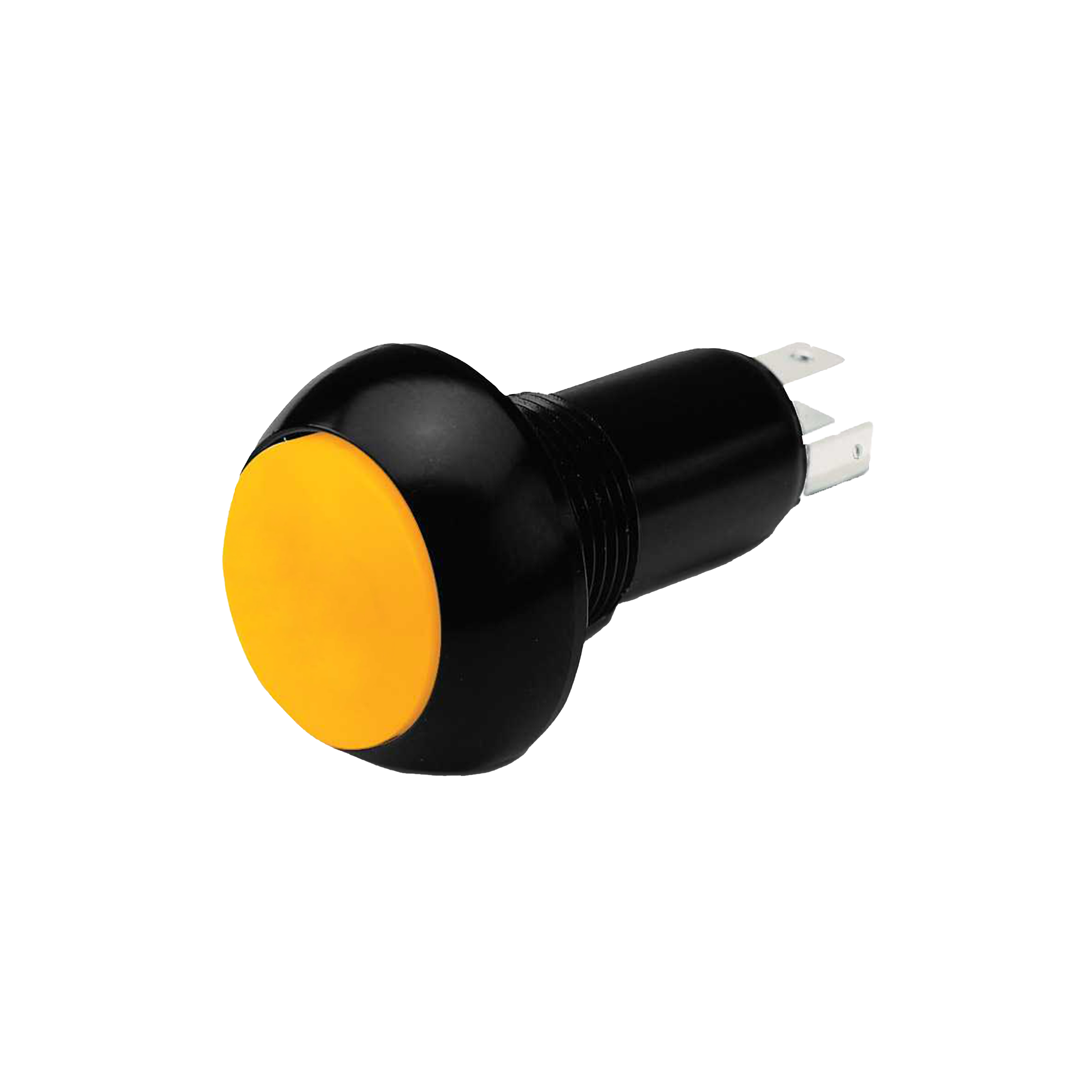

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-R1M32W-R2
Series:LP5
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.51 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-R1M32W-R2

Detailed Description

The LP5 series illuminated pushbutton switch, SKU LP5-R1M32W-R2, is a high-performance component designed for reliable operation in demanding environments. Featuring a white translucent cap and amber illumination, this switch offers enhanced visibility. With an IP6K8S rating, it ensures protection against dust and water ingress, making it ideal for use in industrial settings. The button, made of thermoplastic, provides a tactile response with a raised dome shape for easy actuation. Its SPST-NO contact configuration and 5A current rating guarantee efficient power control. Panel mount installation and solder termination ensure secure placement. Constructed with durable aluminum housing and brass contacts plated with silver, this switch is built to withstand 25,000 cycles of operation. With a wide operating temperature range from -55°C to 85°C and voltage ratings of 115VAC and 28VDC, it offers versatility in application. The LP5R1M32WR2 is the perfect choice for users seeking a sealed, illuminated pushbutton switch that delivers performance and longevity.
