LP5-V11C212

OTTLP5_V11C212
Heilind Number:OTTLP5-V11C212
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11C212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

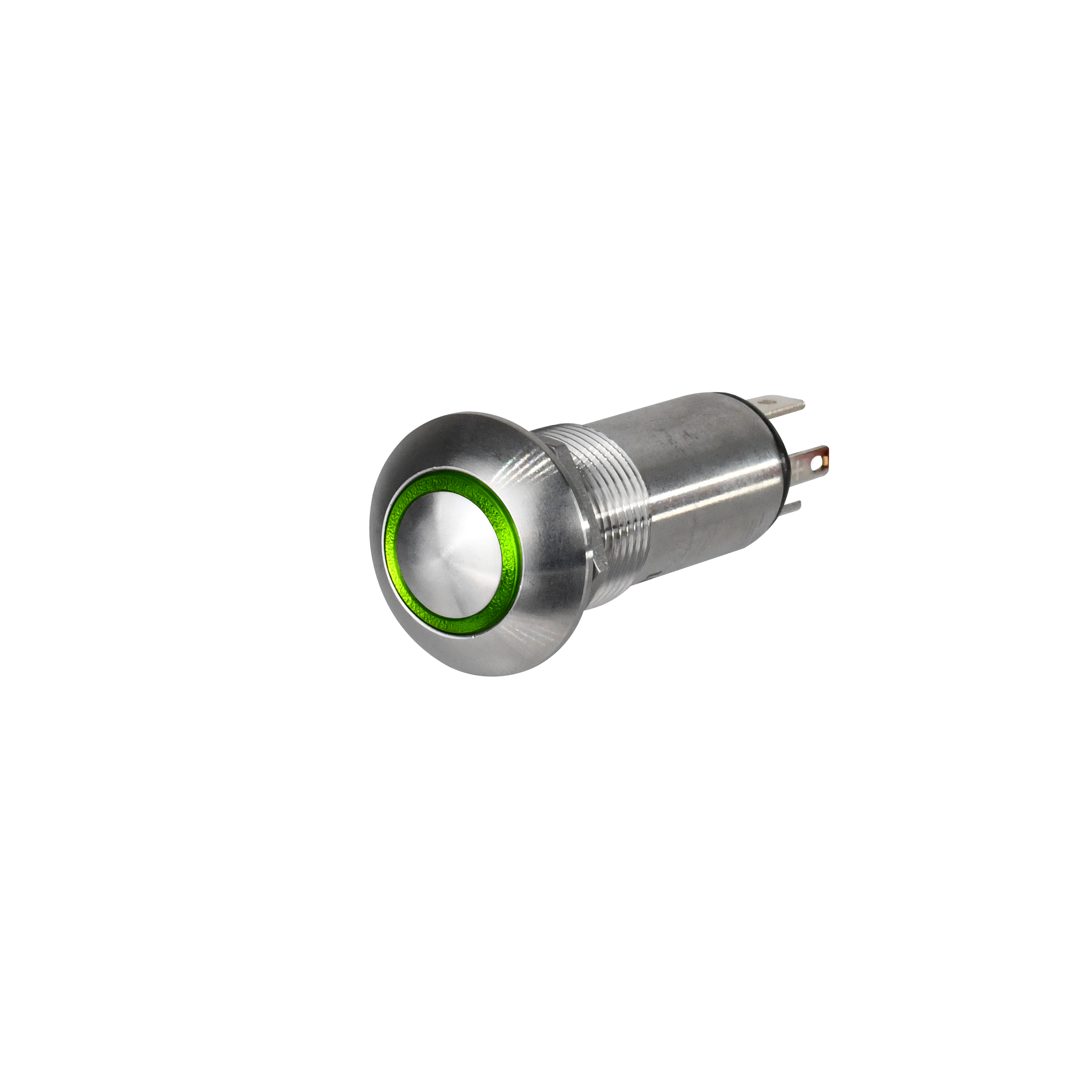

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11C212
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:2 V
SKU:OTTLP5-V11C212

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, a durable and reliable solution for your panel mount switch needs. With a clear cap and amber illumination, this switch is not only functional but stylish. The high profile curved button design, along with a stainless steel housing and actuator, ensures longevity and resilience in any environment. Featuring a sealed construction with an IP6K4S rating, it offers protection against dust and water ingress. The SPST contact configuration and brass contact material guarantee efficient and consistent performance, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. Whether you're in need of a switch for industrial machinery or consumer electronics, the LP5-V Series is the perfect choice.
