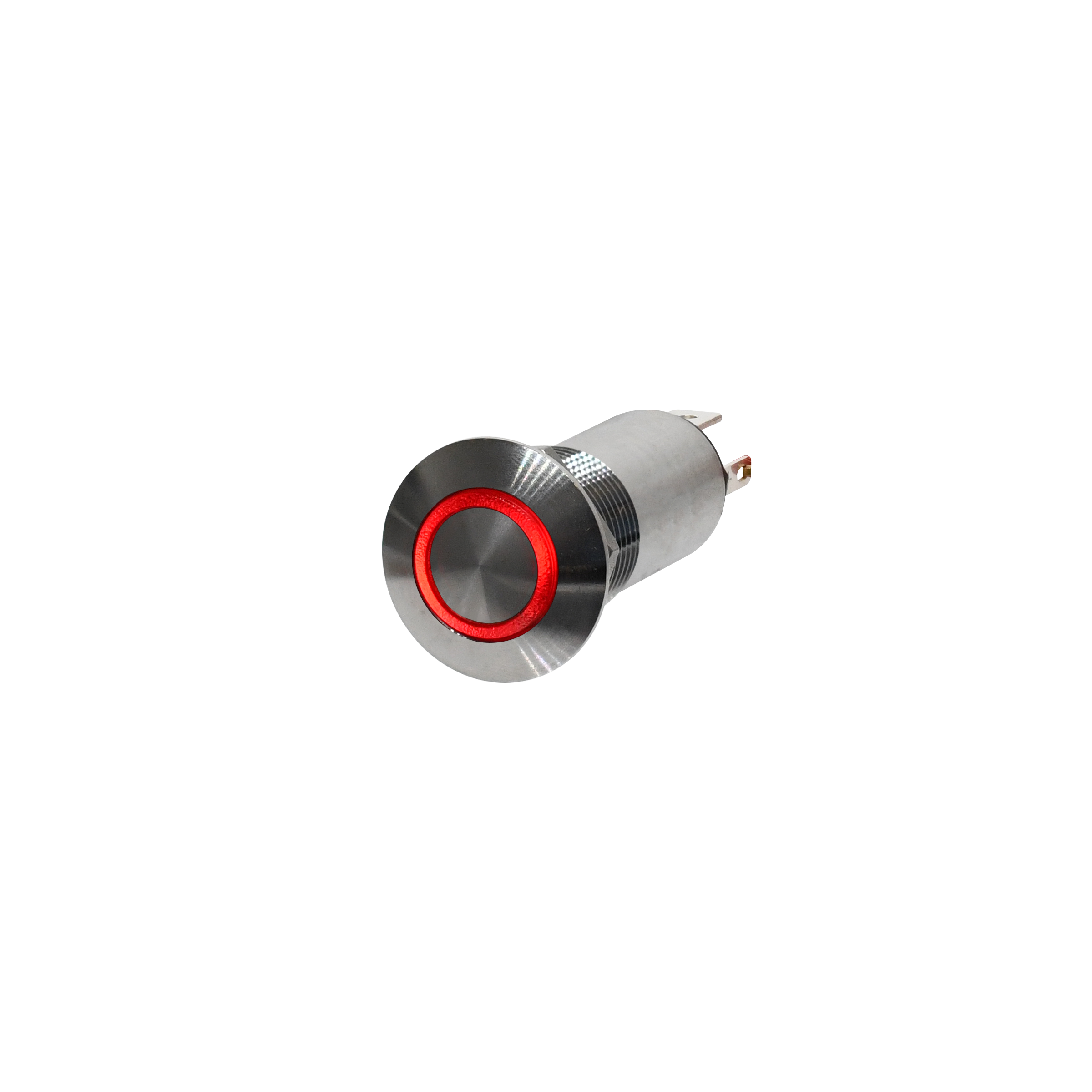

LP5-V11G314

OTTLP5_V11G314
Heilind Number:OTTLP5-V11G314
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11G314
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11G314
Series:LP5-V
Cap Color:Clear
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-V11G314

Detailed Description

The LP5-V11G314 is a durable and reliable push button switch designed for demanding environments. Featuring a vandal-resistant stainless steel construction with a clear cap and silver case, this switch is IP6K8S rated for dust and water resistance. The illuminated red button with a low profile curved actuator ensures easy visibility and operation. With a current rating of 5A and a voltage rating of 115VAC/28VDC, it is suitable for a wide range of applications. The SPST contact configuration and off-on switch function provide simple and effective control. Ideal for panel mounting with solder termination, this sealed switch guarantees long-lasting performance with a durability rating of 25,000 cycles. Whether used in industrial machinery or outdoor equipment, the LP5-V11G314 offers dependable operation in temperatures ranging from -55°C to 85°C. Elevate your control system with this high-quality, hi-rel push button switch.
