LP5-V11H314

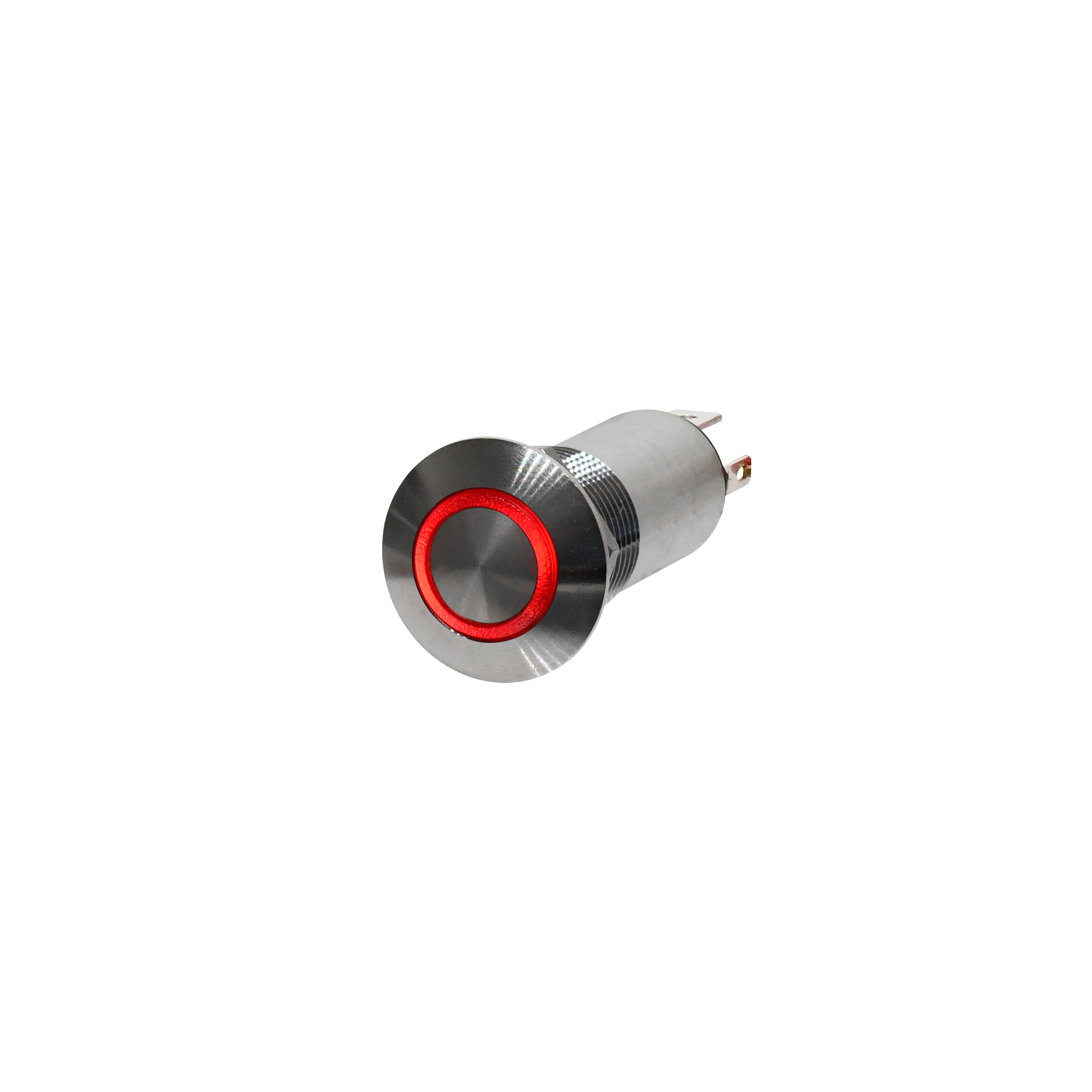

OTTLP5_V11H314
Heilind Number:OTTLP5-V11H314
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11H314
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11H314
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-V11H314

Detailed Description

The LP5-V11H314 is a rugged and reliable pushbutton switch designed for demanding environments. With a clear cap and green illuminated button, it offers easy visibility in any lighting conditions. Its stainless steel housing and vandal-resistant construction ensure durability, making it ideal for outdoor or high-traffic applications. The SPST contact configuration and 5A current rating provide efficient power control, while the solder termination type allows for secure installation. Operating in a wide temperature range from -55°C to 85°C, this switch is suitable for use in extreme conditions. Perfect for industrial machinery, transportation vehicles, and public access areas, the LP5-V11H314 guarantees long-lasting performance in harsh settings.
