LP5-V11L211

OTTLP5_V11L211
Heilind Number:OTTLP5-V11L211
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11L211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

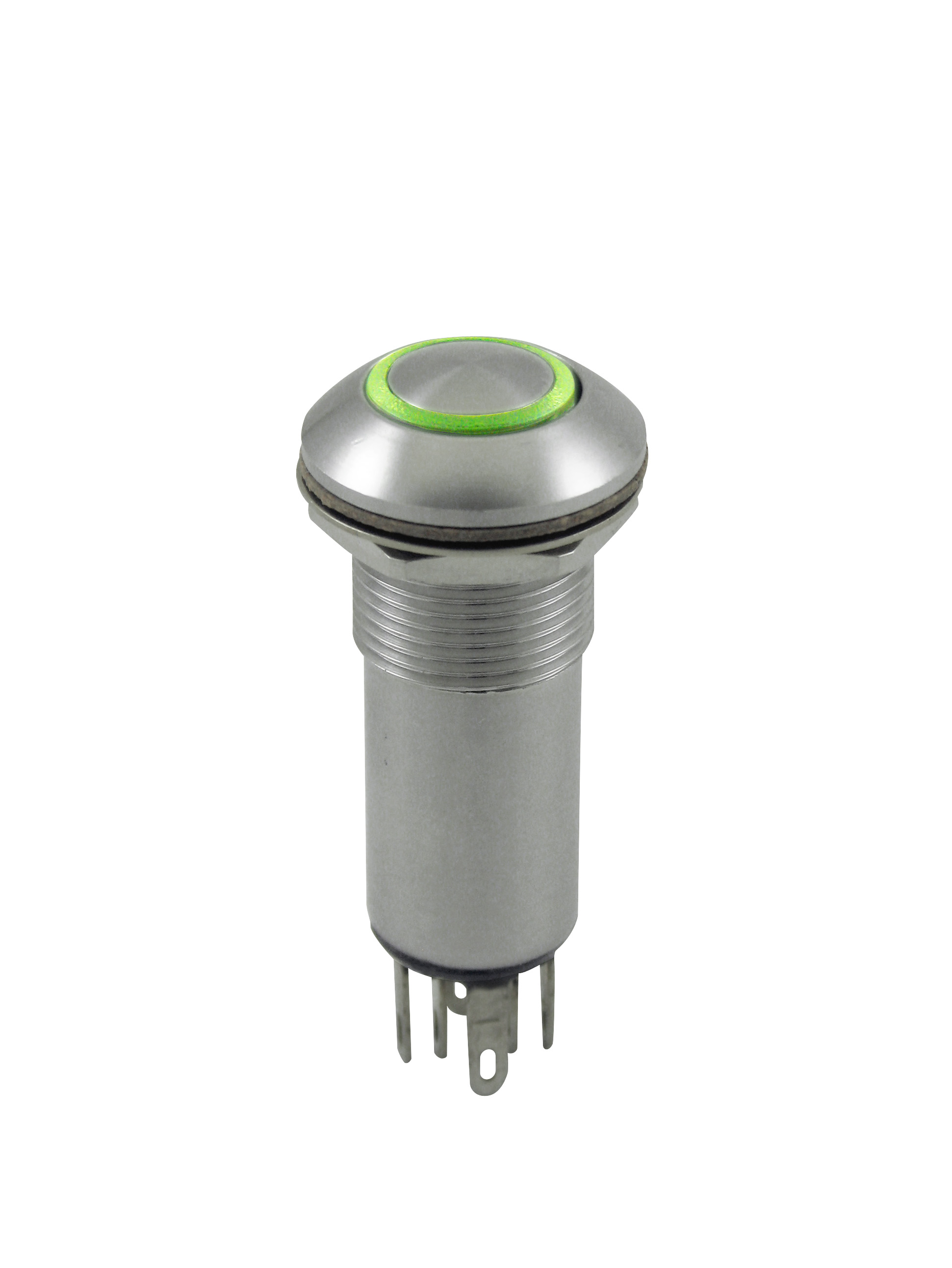

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11L211
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-V11L211

Detailed Description

The LP5-V11L211 is a high-performance pushbutton switch designed for demanding environments. Featuring a durable stainless steel housing and a vandal-resistant design, this switch is ideal for use in industrial or outdoor applications. The illuminated button, with a bright green LED, provides clear visibility even in low-light conditions. With a high profile flat actuator and a round shape, it offers a comfortable and intuitive user experience. The switch is sealed to IP6K4S standards, ensuring reliable performance in harsh conditions. It has a single-pole, single-throw contact configuration with a 5A current rating, making it suitable for a variety of power control applications. The switch is panel mountable and features solder termination for easy installation. With a wide operating temperature range of -55°C to 85°C and a durability rating of 25,000 cycles, it offers long-lasting and reliable operation. The LP5-V11L211 is the perfect choice for critical control applications where performance and durability are essential.
