LP5-V11L312

OTTLP5_V11L312
Heilind Number:OTTLP5-V11L312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11L312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

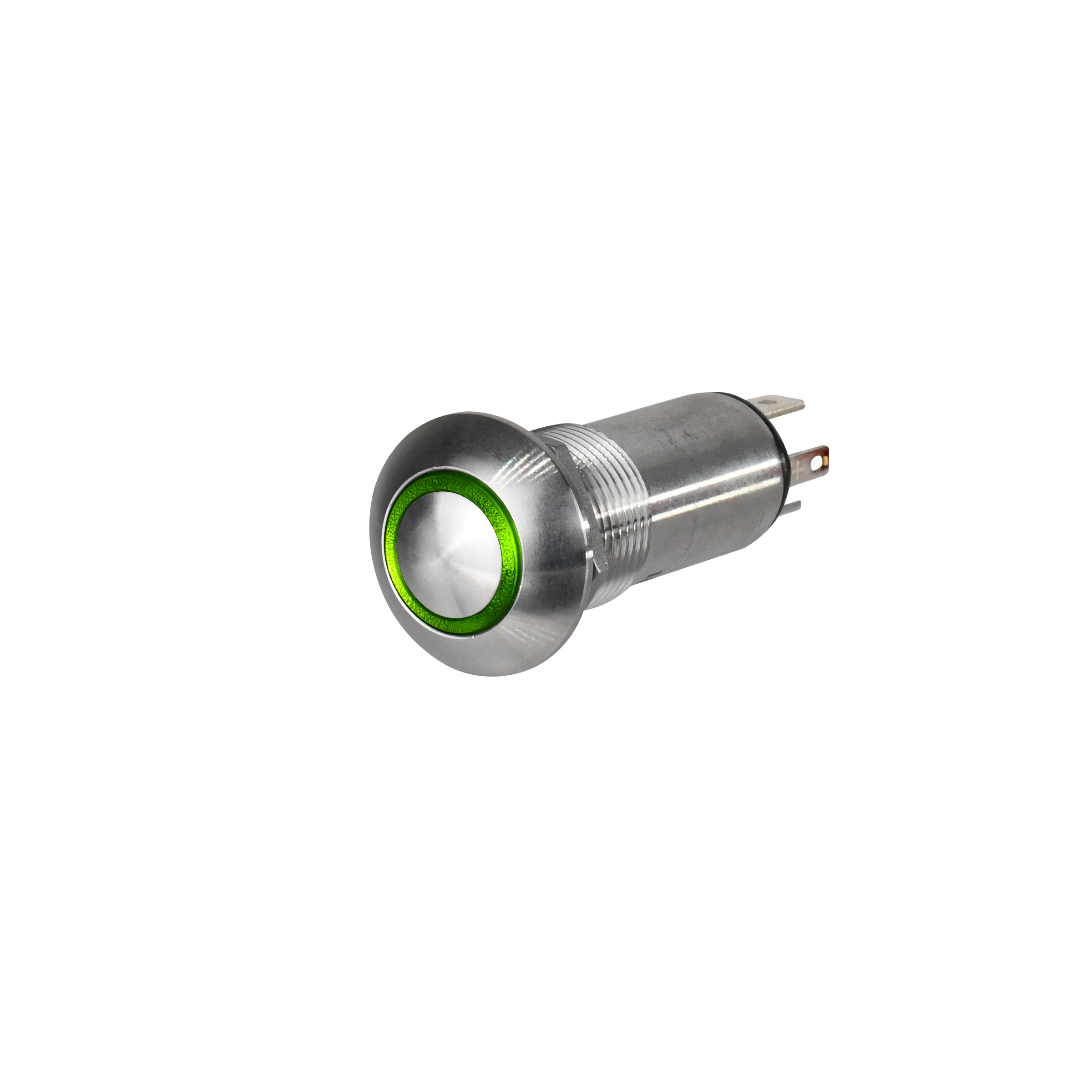

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11L312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-V11L312

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, a high-performance solution for demanding environments. This rugged switch features a durable stainless steel housing and a clear button with green illumination, ensuring visibility even in low light conditions. With an IP6K8S rating, it is sealed against dust and water ingress, making it ideal for outdoor or industrial applications. The SPST contact configuration, along with a 5A current rating, guarantees reliable performance. Panel mount installation and solder termination provide secure connectivity, while a maximum operating temperature of 85°C ensures suitability for a wide range of operating environments. With a 25,000 cycle durability rating, this switch is built to last. Upgrade to the LP5-V Series for dependable control in any situation.
