LP5-V11P312

OTTLP5_V11P312
Heilind Number:OTTLP5-V11P312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11P312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

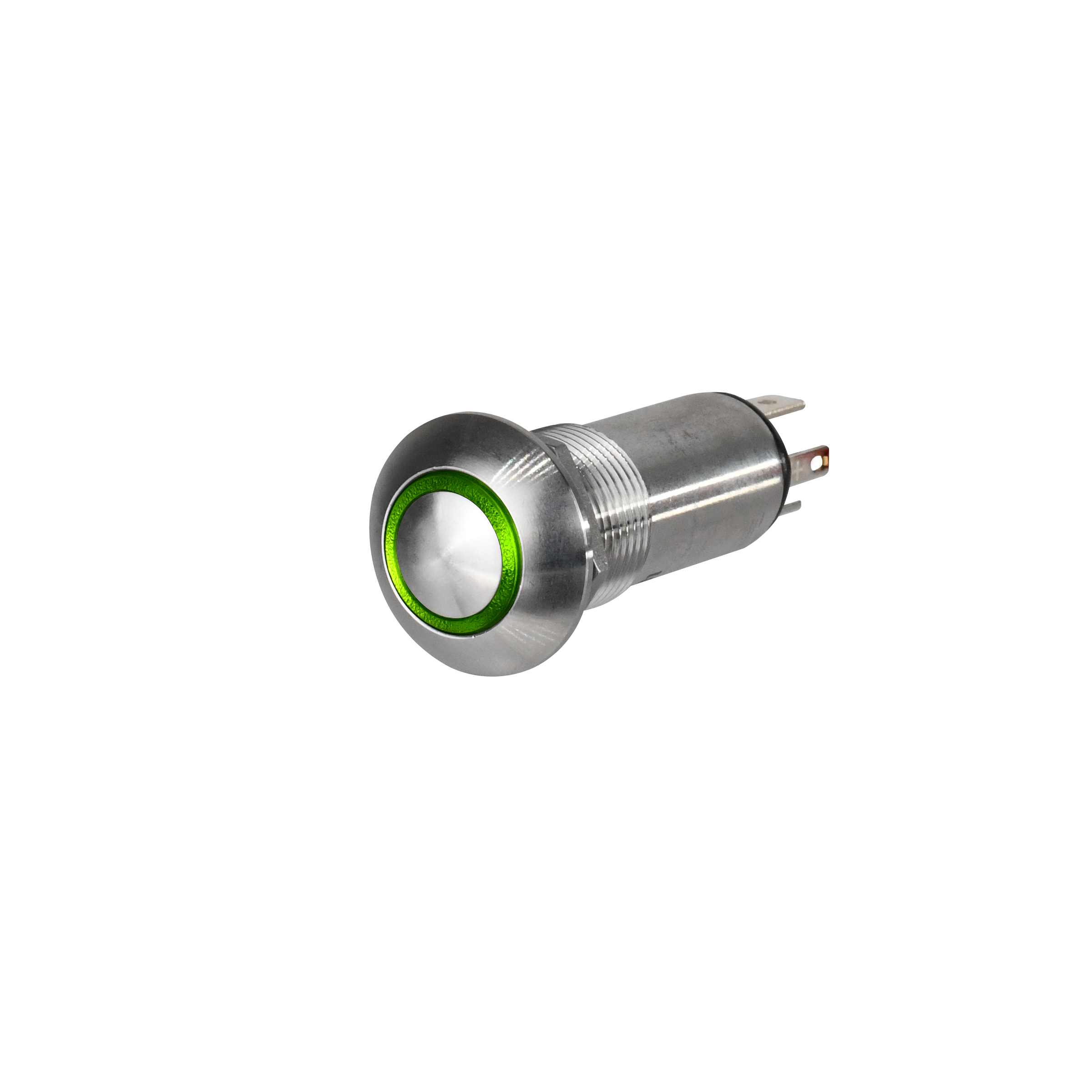

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11P312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP5-V11P312

Detailed Description

The LP5-V11P312 is a high-performance pushbutton switch with a sleek and durable design, perfect for demanding industrial and outdoor applications. Featuring a clear button with blue illumination, this switch not only offers excellent visibility but also adds a touch of modernity to any panel. Its stainless steel housing and vandal-resistant construction ensure long-lasting reliability, even in harsh environments. With a 5A current rating and SPST contact configuration, it provides efficient and safe operation. The Off-On switch function and 25,000 cycle durability rating make it ideal for frequent use. Panel mount installation and solder termination make setup easy. With an IP6K8S rating for dust and water resistance, as well as a wide operating temperature range from -55°C to 85°C, this switch guarantees performance in any conditions. Trust the LP5-V11P312 for quality and durability in your switch applications.
