LP5-V11Q312

OTTLP5_V11Q312
Heilind Number:OTTLP5-V11Q312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11Q312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

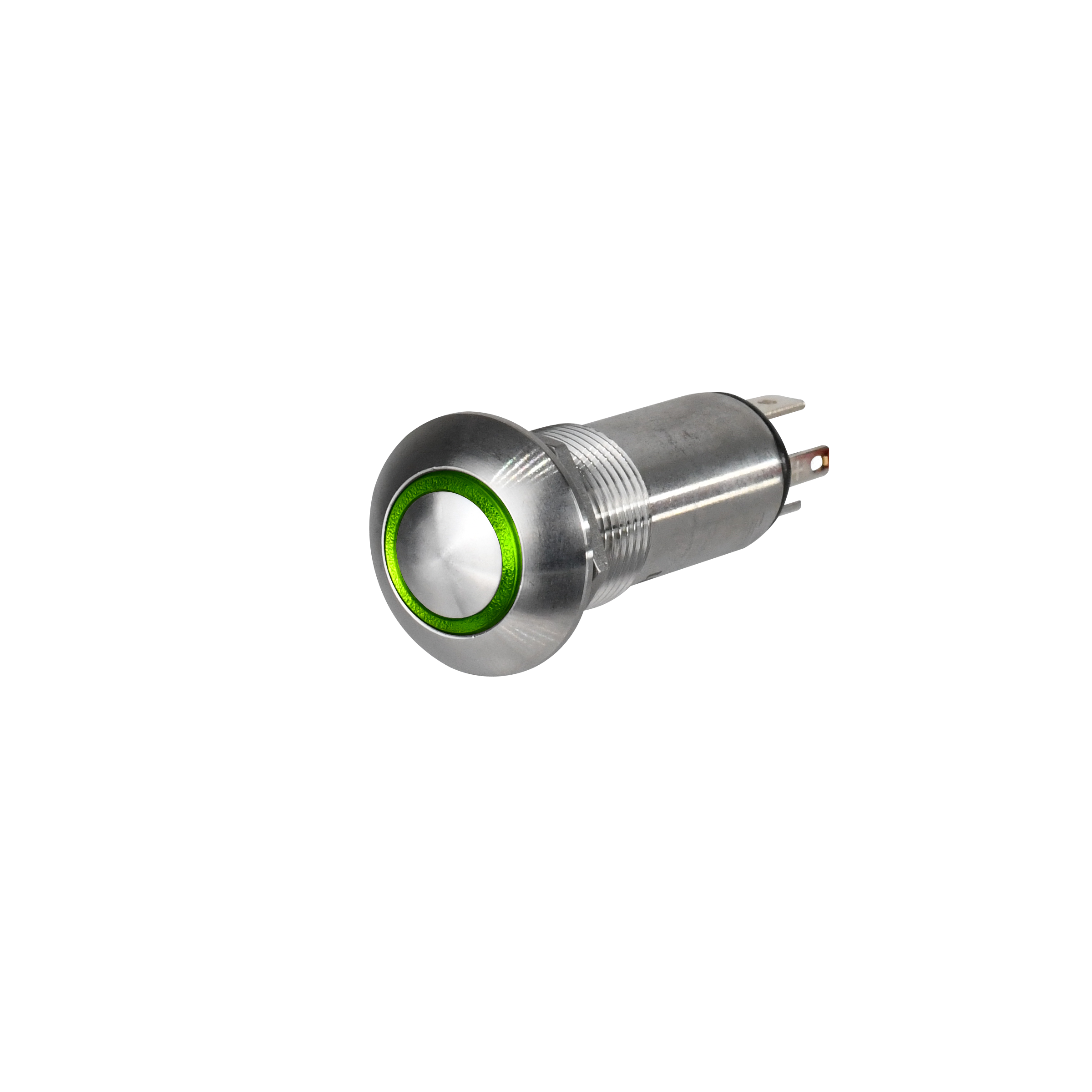

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11Q312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V11Q312

Detailed Description

The LP5-V11Q312 is a rugged and reliable pushbutton switch designed for demanding environments. With a durable stainless steel housing and vandal-resistant construction, this switch is built to withstand harsh conditions. Featuring a high-profile curved button for easy actuation, it offers a comfortable user experience. The clear cap and blue illumination provide clear visibility, making it ideal for low-light settings. With a 5A current rating and SPST contact configuration, it ensures efficient power transmission. Panel-mounted for secure installation, it is suitable for a wide range of applications. With an IP6K8S rating for dust and water resistance, along with a wide operating temperature range from -55°C to 85°C, it guarantees reliable performance in any scenario. Whether in industrial machinery, automotive, or marine applications, the LP5-V11Q312 is the perfect choice for durable and high-performance switching.
