LP5-V12A213

OTTLP5_V12A213
Heilind Number:OTTLP5-V12A213
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12A213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

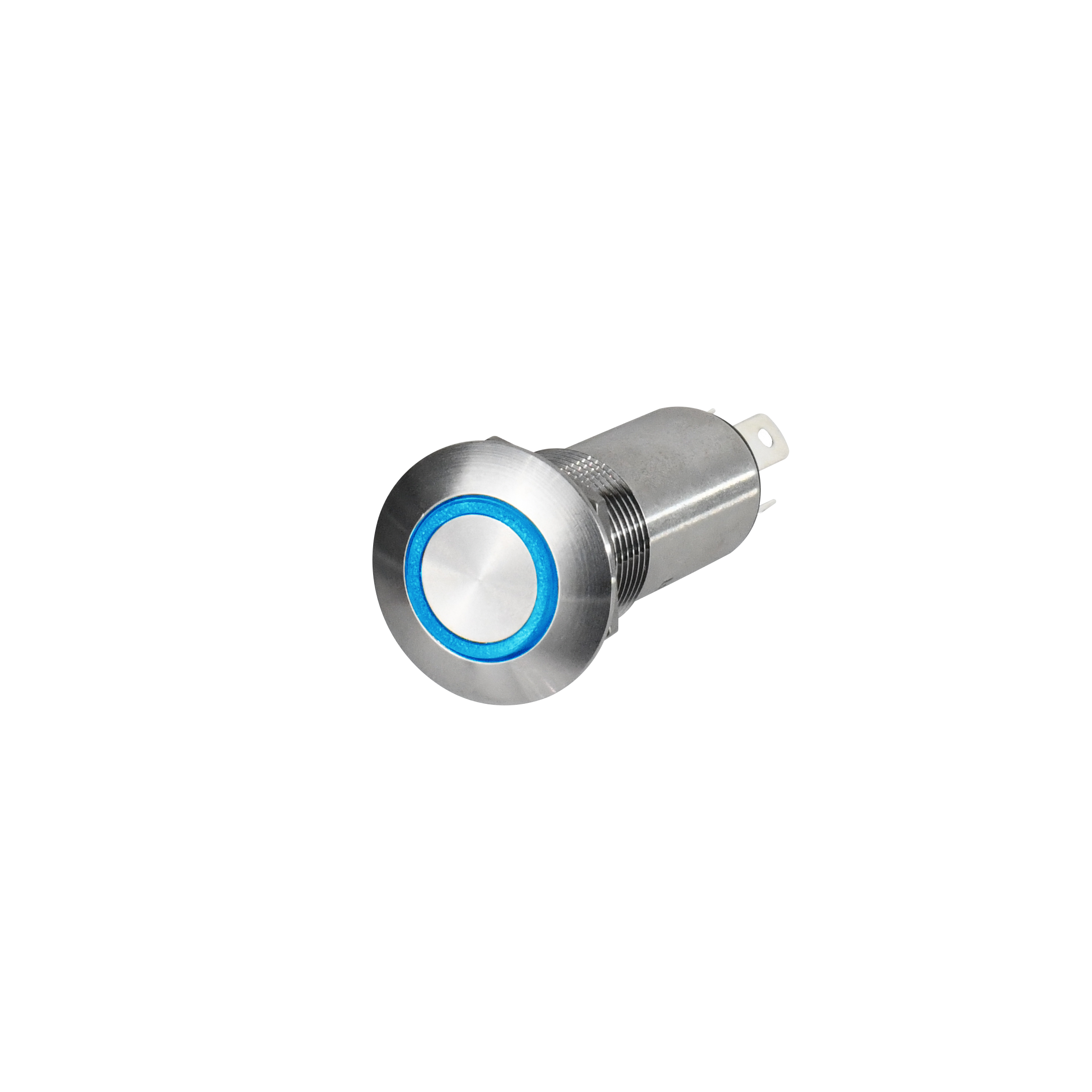

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12A213
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP5-V12A213

Detailed Description

The LP5-V12A213 is a high-performance push button switch designed for demanding applications. Featuring a sleek stainless steel housing with a silver case and clear cap, this switch is not only durable but also visually appealing. With an IP6K4S rating, it offers reliable protection against dust and water ingress. The illuminated red button provides easy visibility in dimly lit environments, while the vandal-resistant design ensures long-lasting operation. Perfect for industrial settings, this switch has a current rating of 5A and can handle voltage ratings up to 115VAC and 28VDC. Its SPDT contact configuration and on-on switch function make it versatile for various control applications. With a durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, the LP5-V12A213 guarantees reliable performance even in harsh conditions. Ideal for panel mounting with solder termination, this switch is a dependable choice for critical operations.
