LP5-V12K315

OTTLP5_V12K315
Heilind Number:OTTLP5-V12K315
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12K315
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

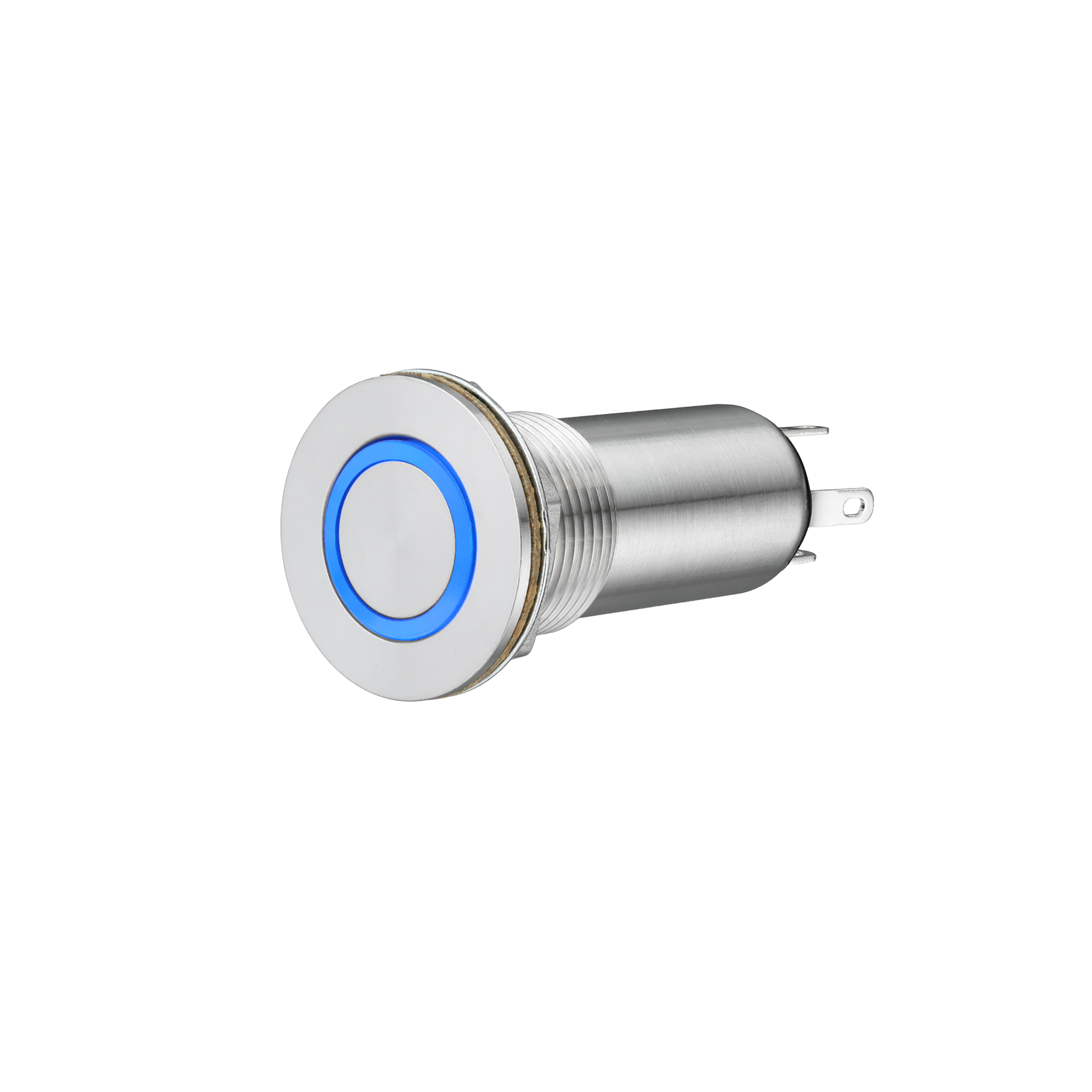

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12K315
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-V12K315

Detailed Description

The LP5-V12K315 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a clear illuminated button with a red LED, this switch is easily visible in low-light conditions. Its stainless steel construction and IP6K8S sealing make it vandal-resistant and suitable for outdoor or industrial applications. With a current rating of 5A and a contact configuration of SPDT, it offers versatile functionality. The switch is panel mountable, with a durable actuator made of stainless steel. Operating at temperatures ranging from -55°C to 85°C, it is dependable in extreme conditions. Ideal for use in control panels, machinery, or automotive applications, the LP5-V12K315 ensures long-lasting performance with a durability rating of 25,000 cycles.
