LP5-V12L313

OTTLP5_V12L313
Heilind Number:OTTLP5-V12L313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12L313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

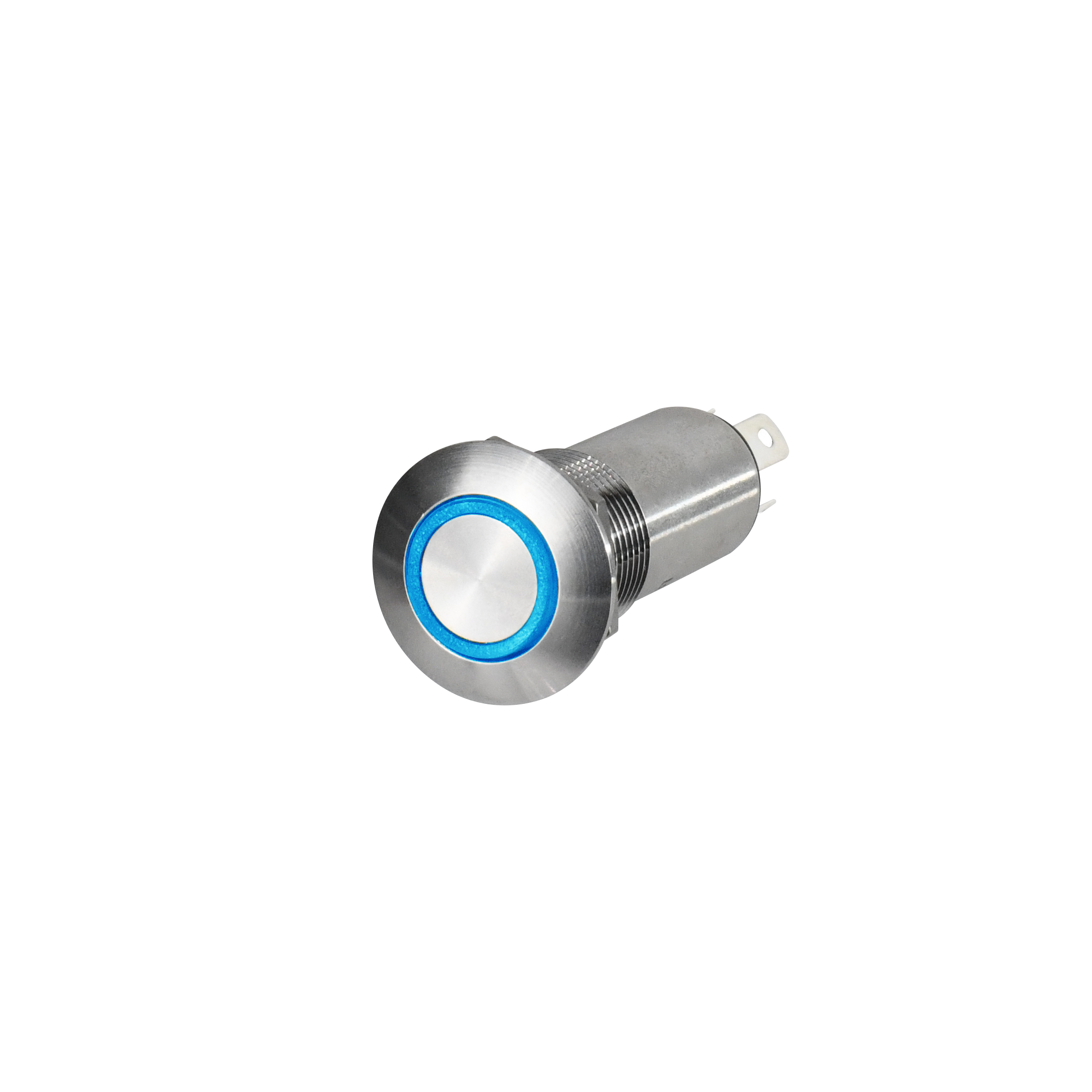

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12L313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-V12L313

Detailed Description

The LP5-V12L313 Push Button Switch is a durable and reliable solution for your panel mounting needs. With a sleek stainless steel construction and a clear illuminated button, this switch not only adds a touch of sophistication to your setup but also ensures easy visibility in all lighting conditions. Designed for optimal performance, it features a silver contact plating and a brass contact material, guaranteeing smooth and efficient operation. The switch offers a versatile SPDT contact configuration and a 5A current rating, making it suitable for a wide range of applications. With an IP6K8S rating for dust and water resistance, as well as a high durability rating of 25,000 cycles, you can trust in its longevity and performance. Whether you're looking for a vandal-resistant switch for outdoor use or a stylish option for indoor applications, the LP5-V12L313 is the perfect choice.
