LP5-V12P312

Heilind Number:OTTLP5-V12P312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12P312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

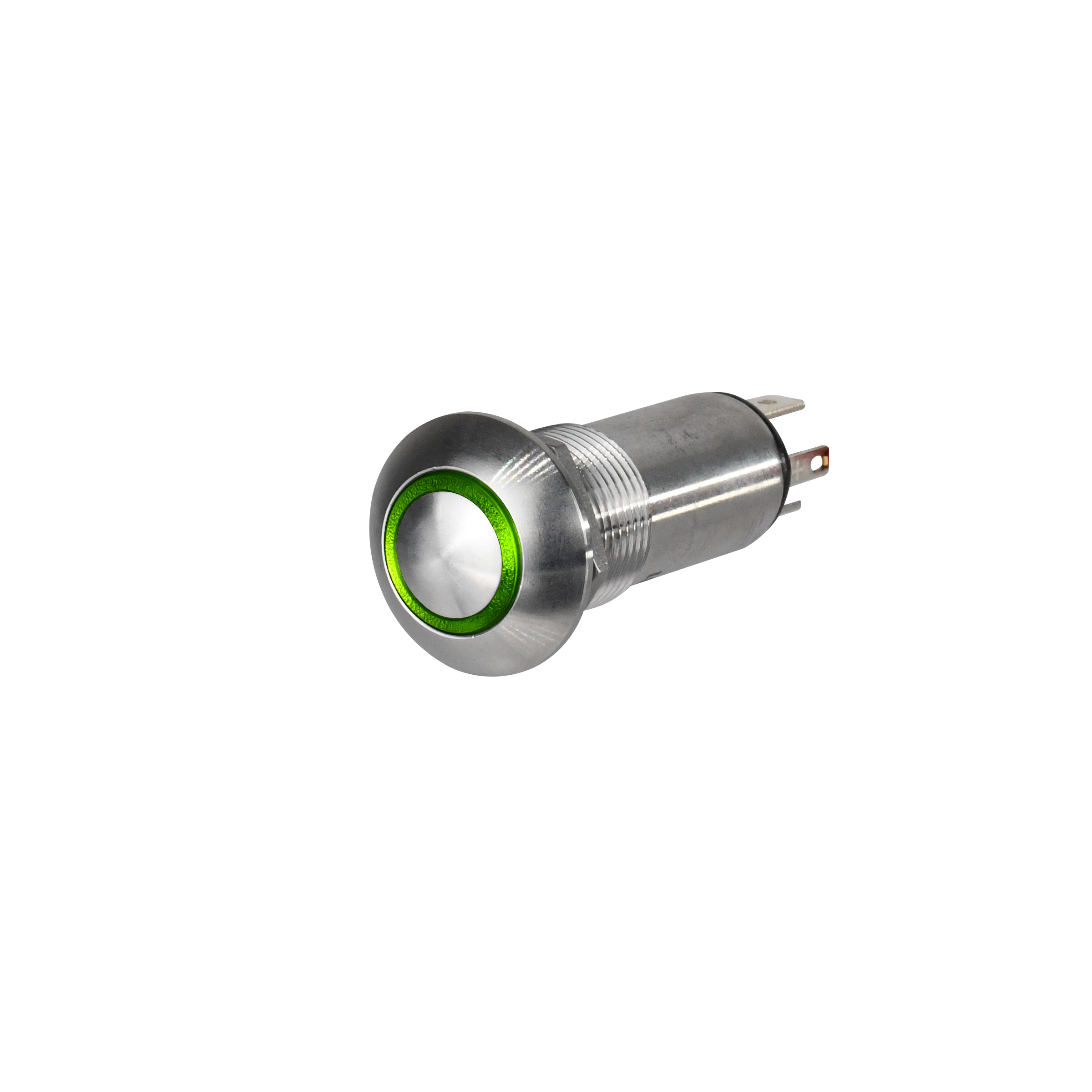

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12P312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP5-V12P312

Detailed Description

The LP5-V12P312 is a high-quality pushbutton switch designed for durability and reliability in demanding environments. Featuring a vandal-resistant stainless steel construction, this switch is perfect for applications where security and longevity are paramount. With an IP6K8S rating, it offers protection against dust and water ingress, ensuring consistent performance even in harsh conditions. The illuminated button, with a striking blue light, not only enhances visibility but also adds a touch of sophistication to any panel. Its sealed design and solder termination make it suitable for a wide range of industrial and commercial settings. With a contact configuration of SPDT and a current rating of 5A, this switch is capable of handling high-power applications with ease. Whether you need a rugged switch for machinery control or a sleek button for user interfaces, the LP5-V12P312 delivers exceptional performance every time.
