LP5-V12Q311

OTTLP5_V12Q311
Heilind Number:OTTLP5-V12Q311
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12Q311
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

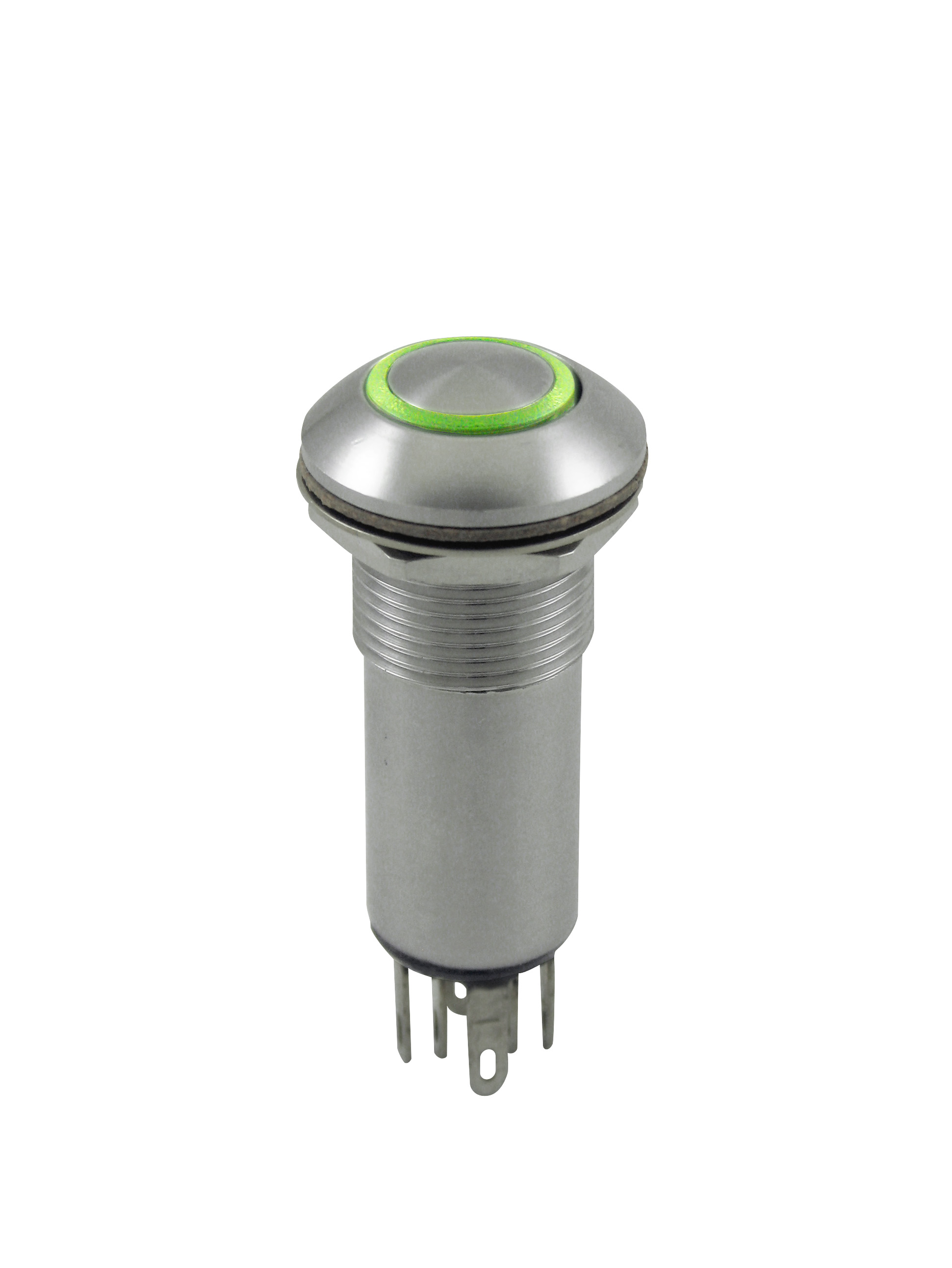

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12Q311
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V12Q311

Detailed Description

Introducing the LP5-V12Q311, a durable and vandal-resistant pushbutton switch designed for reliable performance in demanding environments. Featuring a high-profile flat button actuator with a round shape, this switch is ideal for applications requiring a sleek and modern design. The clear cap and blue illumination not only enhance visibility but also add a touch of style. With an IP6K8S rating for dust and water resistance, along with a stainless steel housing, this switch is built to withstand harsh conditions. The SPDT contact configuration and 5A current rating ensure versatile functionality, while the solder termination type allows for easy installation. Whether used in industrial machinery, transportation systems, or outdoor equipment, the LP5-V12Q311 delivers long-lasting performance with a 25,000 cycle durability rating. Trust in this premium-quality switch for your critical control needs.
