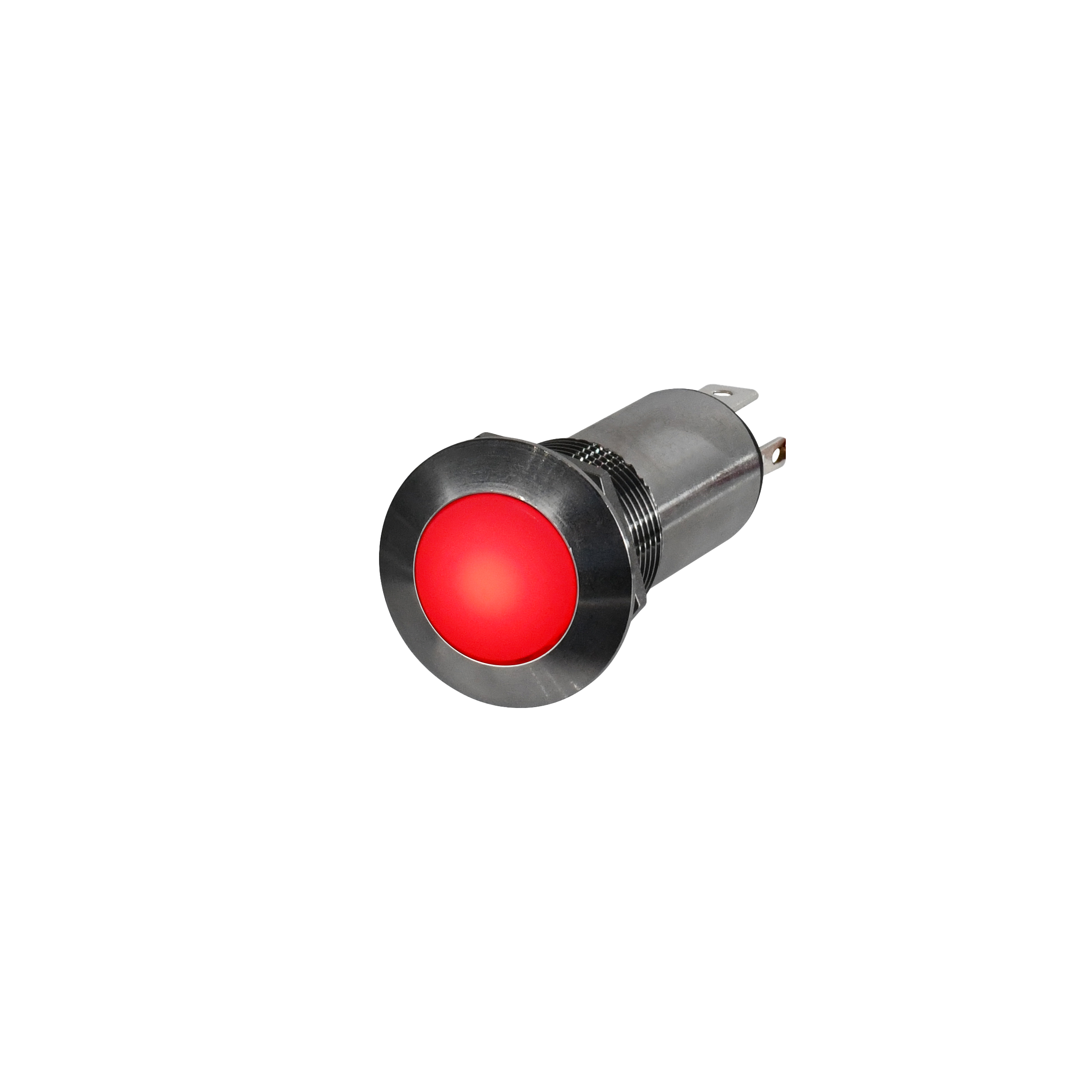

LP5-V12Q334

OTTLP5_V12Q334
Heilind Number:OTTLP5-V12Q334
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12Q334
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12Q334
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Translucent
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V12Q334

Detailed Description

Introducing the LP5-V12Q334, a durable and high-performance pushbutton switch designed for demanding environments. This illuminated, vandal-resistant switch features a low-profile curved button actuator and a sleek stainless steel housing in a silver finish. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The SPDT contact configuration and 5A current rating ensure efficient power management, while the 25,000-cycle durability rating guarantees long-lasting performance. Ideal for panel mounting, this switch operates at temperatures ranging from -55°C to 85°C, making it suitable for a wide range of applications. Its blue LED illumination, with a 12V voltage rating, adds a stylish touch while enhancing visibility. Whether used in industrial machinery, transportation systems, or outdoor equipment, the LP5-V12Q334 delivers reliable operation in any setting.
