LP5-V12R312

OTTLP5_V12R312
Heilind Number:OTTLP5-V12R312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12R312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

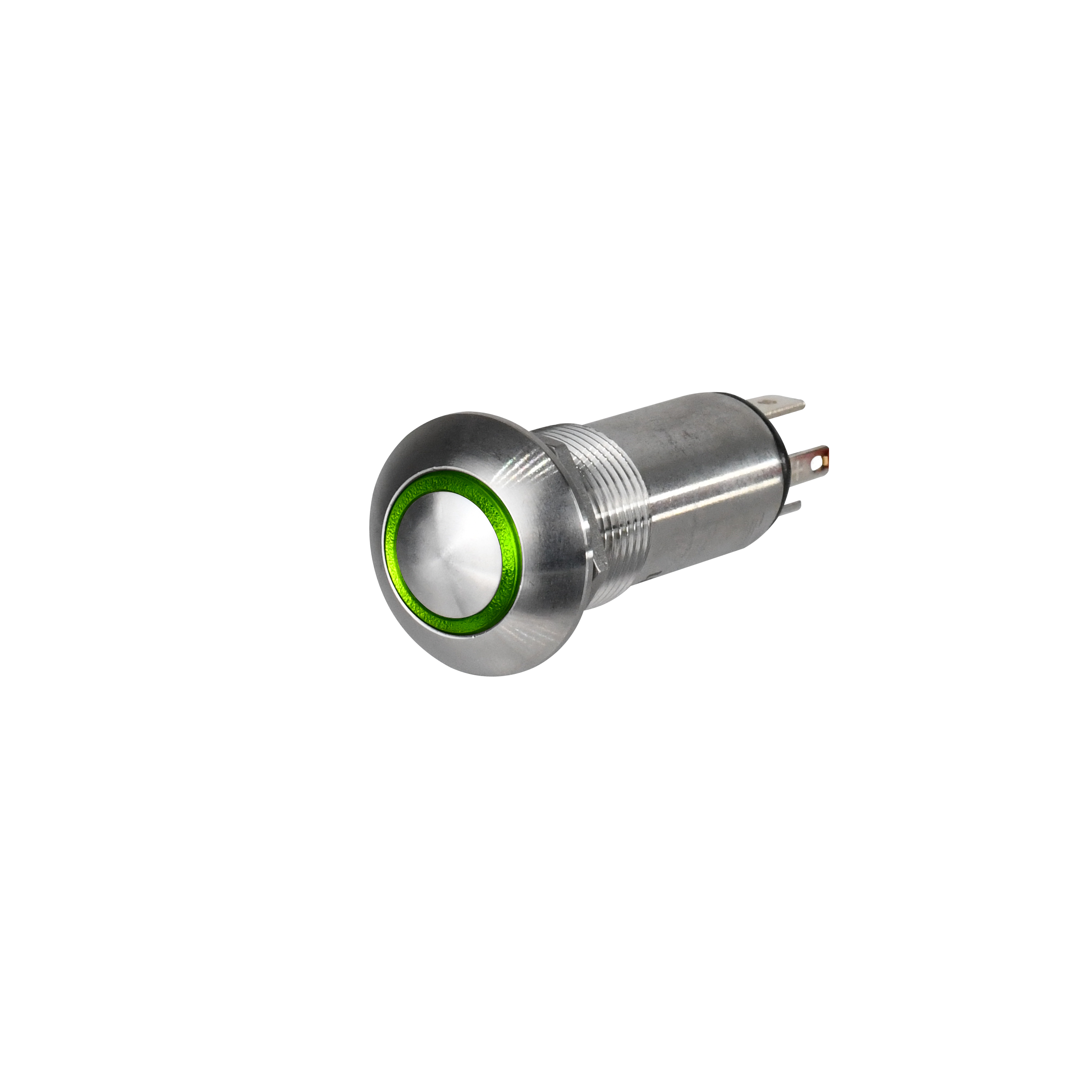

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12R312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:24 V
SKU:OTTLP5-V12R312

Detailed Description

Introducing the LP5-V12R312, a rugged and reliable pushbutton switch designed for demanding environments. This illuminated switch features a high-profile curved button for easy activation and a durable stainless steel housing in a sleek silver finish. With an IP6K8S rating, it offers superior protection against dust and water ingress, making it ideal for outdoor and industrial applications. The blue LED illumination not only enhances visibility but also adds a stylish touch. Featuring a SPDT contact configuration with silver-plated brass contacts, this switch ensures reliable performance with a 5A current rating. Whether used in machinery, control panels, or security systems, the LP5-V12R312 guarantees seamless operation even in harsh conditions. Upgrade to this vandal-resistant, sealed pushbutton switch for unmatched durability and functionality.
