LP5-V12U334

OTTLP5_V12U334
Heilind Number:OTTLP5-V12U334
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V12U334
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

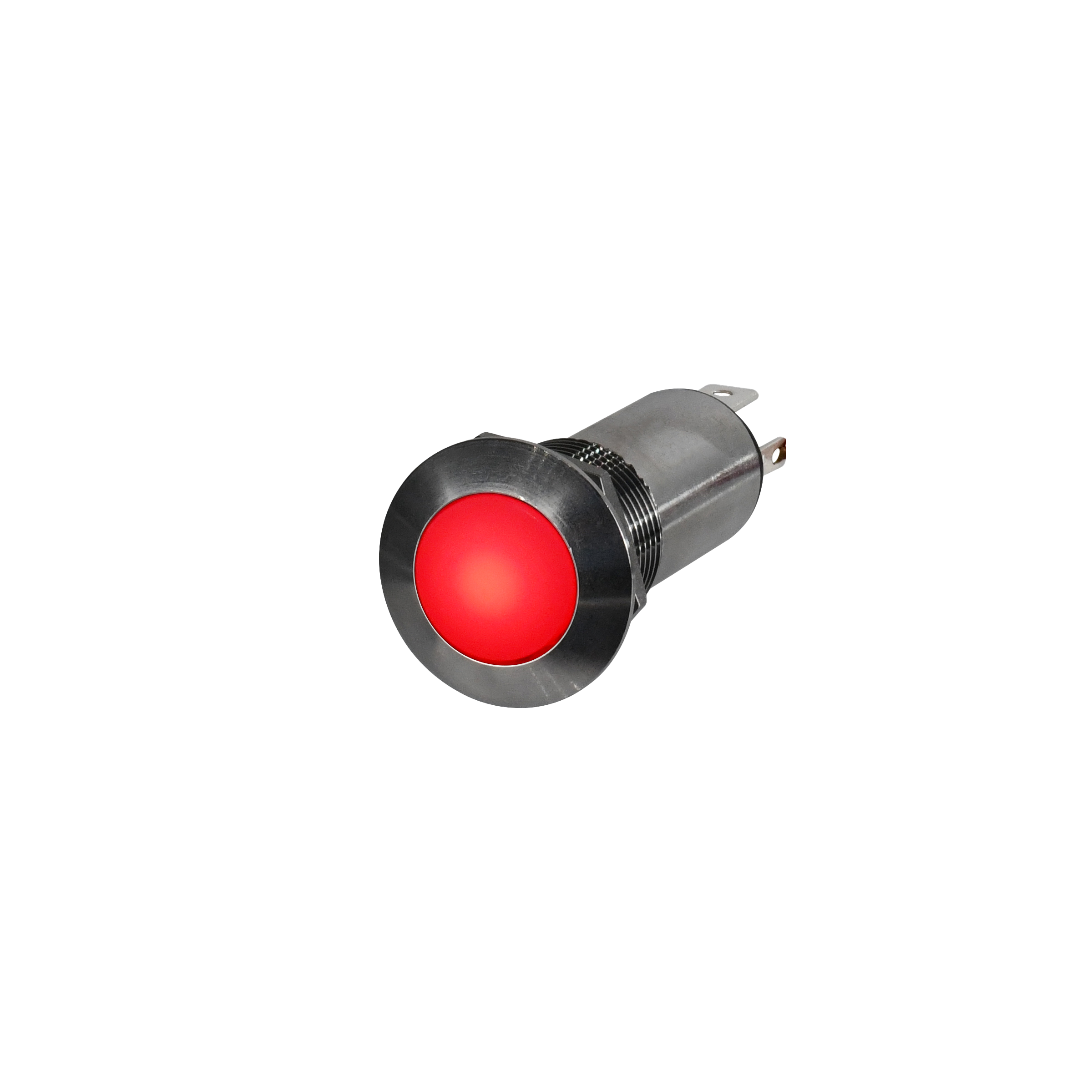

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V12U334
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Translucent
Actuator Length:.18 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP5-V12U334

Detailed Description

The LP5-V12U334 is a durable and reliable pushbutton switch designed for demanding environments. Featuring a sleek silver case with a translucent cap, this switch is not only visually appealing but also highly functional with an IP6K8S rating for dust and water resistance. The illuminated deep green button, made of stainless steel, adds a touch of sophistication while ensuring visibility even in low light conditions. With a contact configuration of SPDT and a current rating of 5A, it offers versatile functionality. Its sealed construction, contact plating of silver, and brass contact material guarantee long-lasting performance with a durability rating of 25,000 cycles. Ideal for panel mount installation, this switch is suitable for a wide range of applications. Whether in industrial machinery or outdoor equipment, the LP5-V12U334 is the perfect choice for reliable and vandal-resistant operation.
