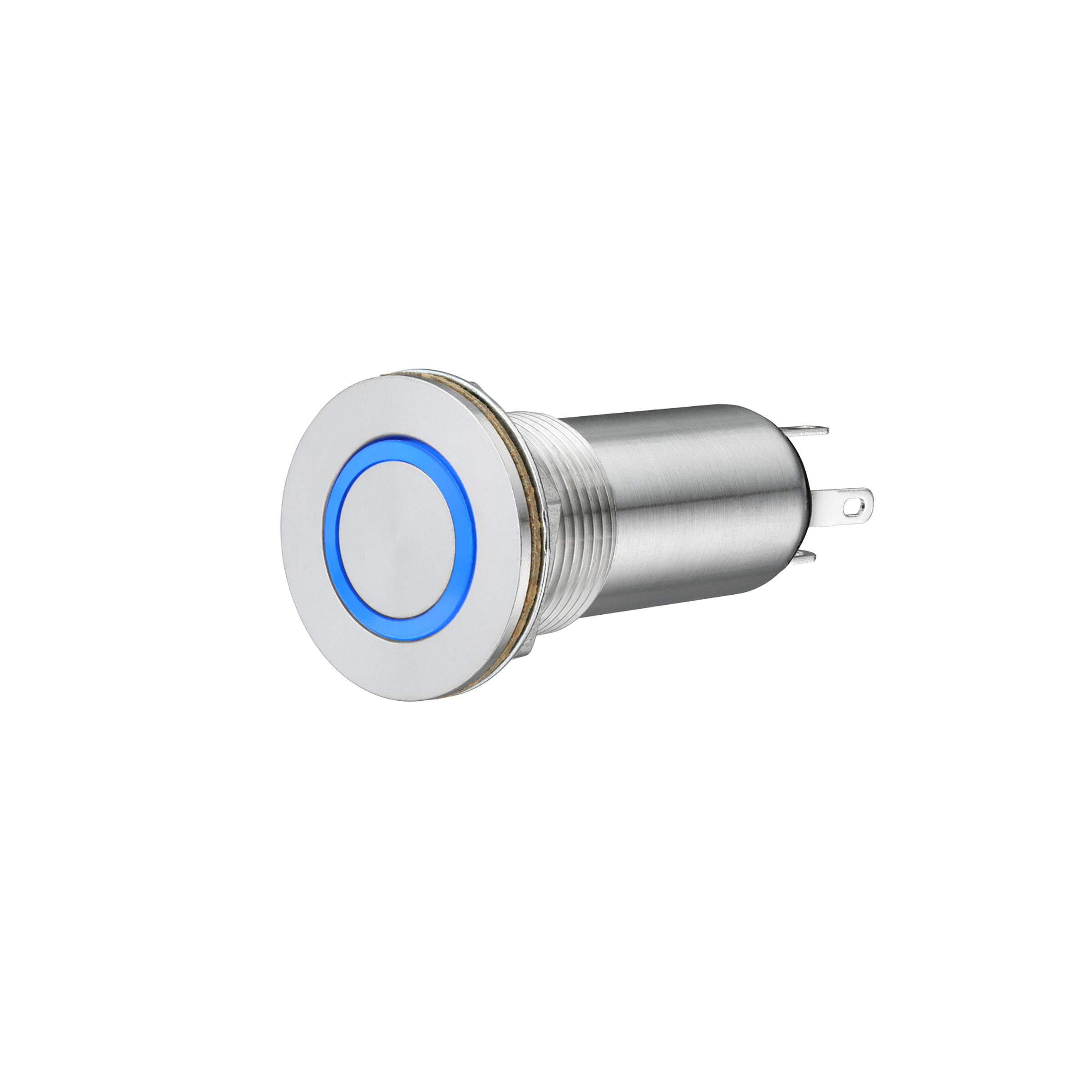

LP5-V31B315

OTTLP5_V31B315
Heilind Number:OTTLP5-V31B315
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31B315
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31B315
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP5-V31B315

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Stainless Steel Alternate Action Pushbutton Switch, SKU LP5-V31B315. This durable switch features a Clear Flush Profile Flat Button actuator and a sleek Silver case, perfect for panel mounting. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The green LED illumination not only enhances visibility but also adds a touch of modernity. Operating at 115 VAC or 28 VDC, with a current rating of 5A, this SPST switch is ideal for a wide range of applications. Constructed with high-quality materials such as stainless steel and brass, and boasting a 25,000 cycle durability rating, it ensures long-term performance even in harsh environments. From industrial machinery to outdoor equipment, the LP5-V31B315 is the go-to choice for dependable and stylish control solutions.
