LP5-V31H313

OTTLP5_V31H313
Heilind Number:OTTLP5-V31H313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31H313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

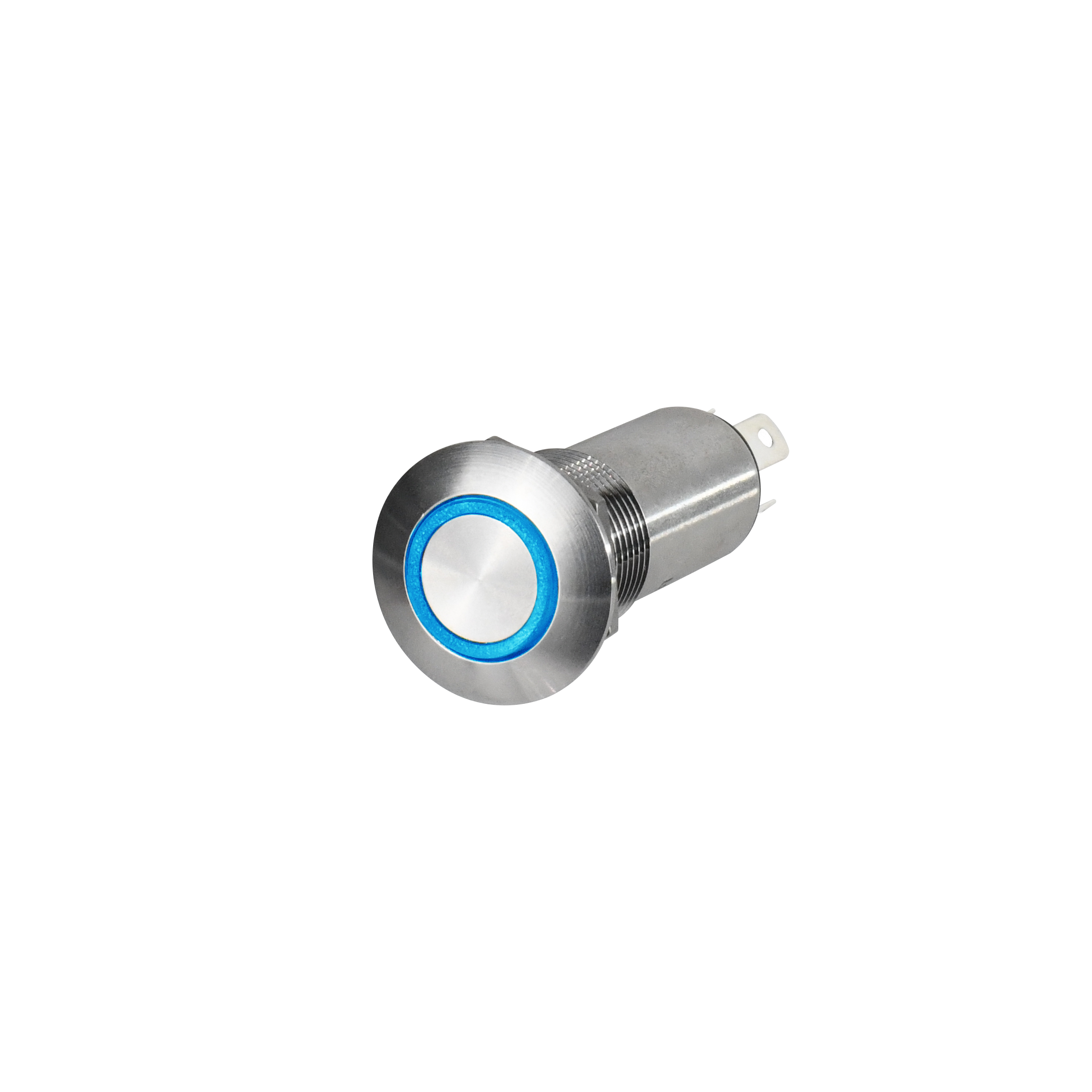

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31H313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-V31H313

Detailed Description

Introducing the LP5-V Series Stainless Steel Pushbutton Switch, featuring a sleek and durable design perfect for high-reliability applications. This Vandal Resistant switch is sealed for added protection, with an IP6K8S rating ensuring its performance in harsh environments. The Clear illuminated button, with a vibrant Green LED, provides visual feedback and enhances user experience. With a low profile flat actuator, this switch is easy to operate while maintaining a sleek appearance. Designed for panel mount installation, it is suitable for a wide range of industrial and commercial applications. The switch offers a reliable Off-On function, with a 5A current rating and SPST contact configuration. Constructed from high-quality stainless steel, it offers excellent durability, with a rating of 25,000 cycles. Operating temperature ranges from -55°C to 85°C, making it suitable for use in varied conditions. The LP5-V31H313 is a dependable and versatile solution for your switching needs.
