LP5-V31N313

OTTLP5_V31N313
Heilind Number:OTTLP5-V31N313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31N313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

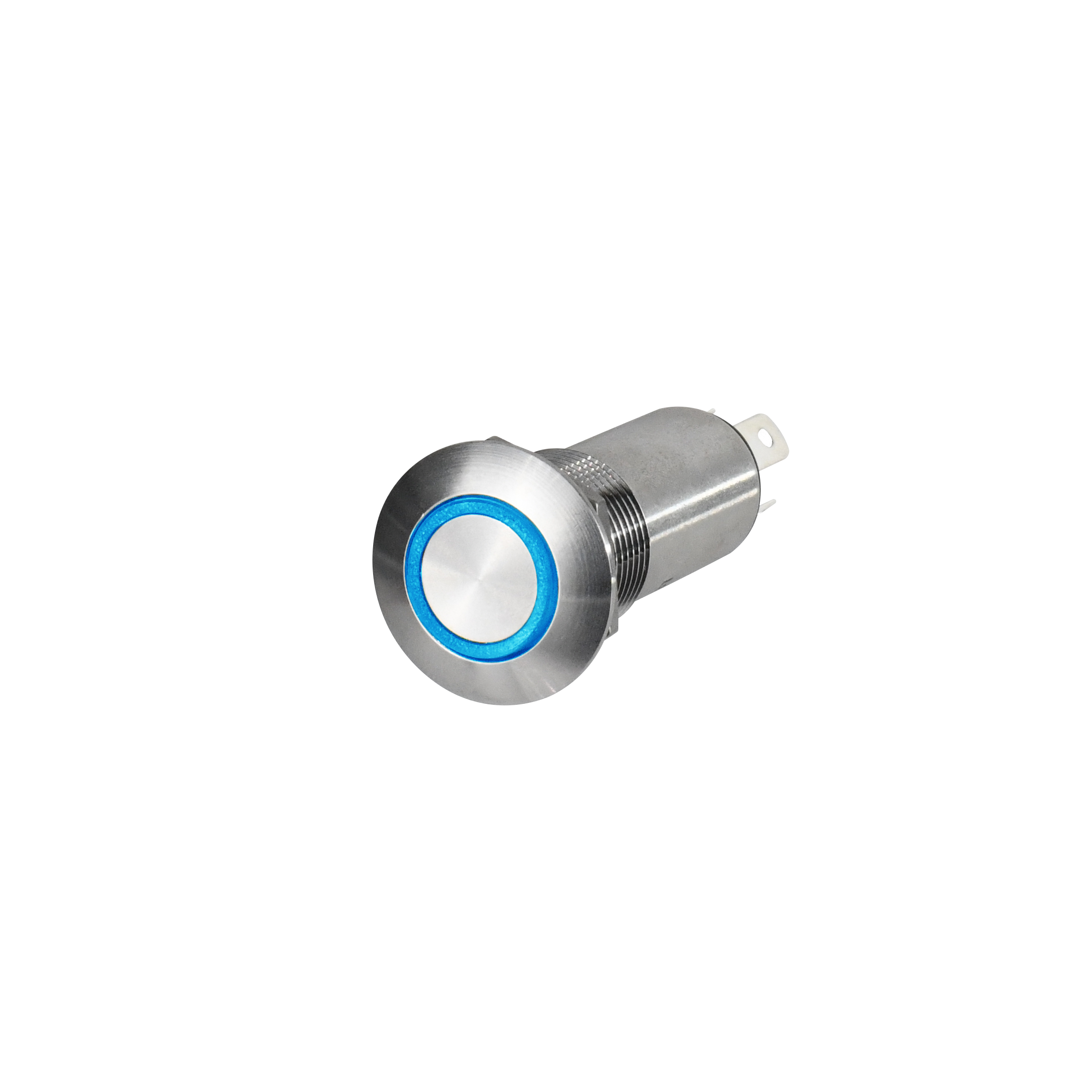

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31N313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP5-V31N313

Detailed Description

The LP5-V31N313 is a durable and reliable pushbutton switch designed for demanding environments. Featuring a low profile flat button with a clear cap and blue illuminated ring, this switch is not only functional but also visually appealing. Constructed with a stainless steel housing and vandal-resistant design, it offers enhanced durability for long-term use. The SPST contact configuration and 5A current rating ensure efficient performance, while the IP6K8S sealing provides protection against dust and water ingress. With a wide operating temperature range from -55°C to 85°C and a high durability rating of 25,000 cycles, this switch is suitable for a variety of industrial applications. Easy to install with panel mount termination, it is perfect for use in control panels, machinery, and other equipment. Trust the LP5-V31N313 for dependable operation in even the harshest conditions.
