LP5-V31P313

OTTLP5_V31P313
Heilind Number:OTTLP5-V31P313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31P313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

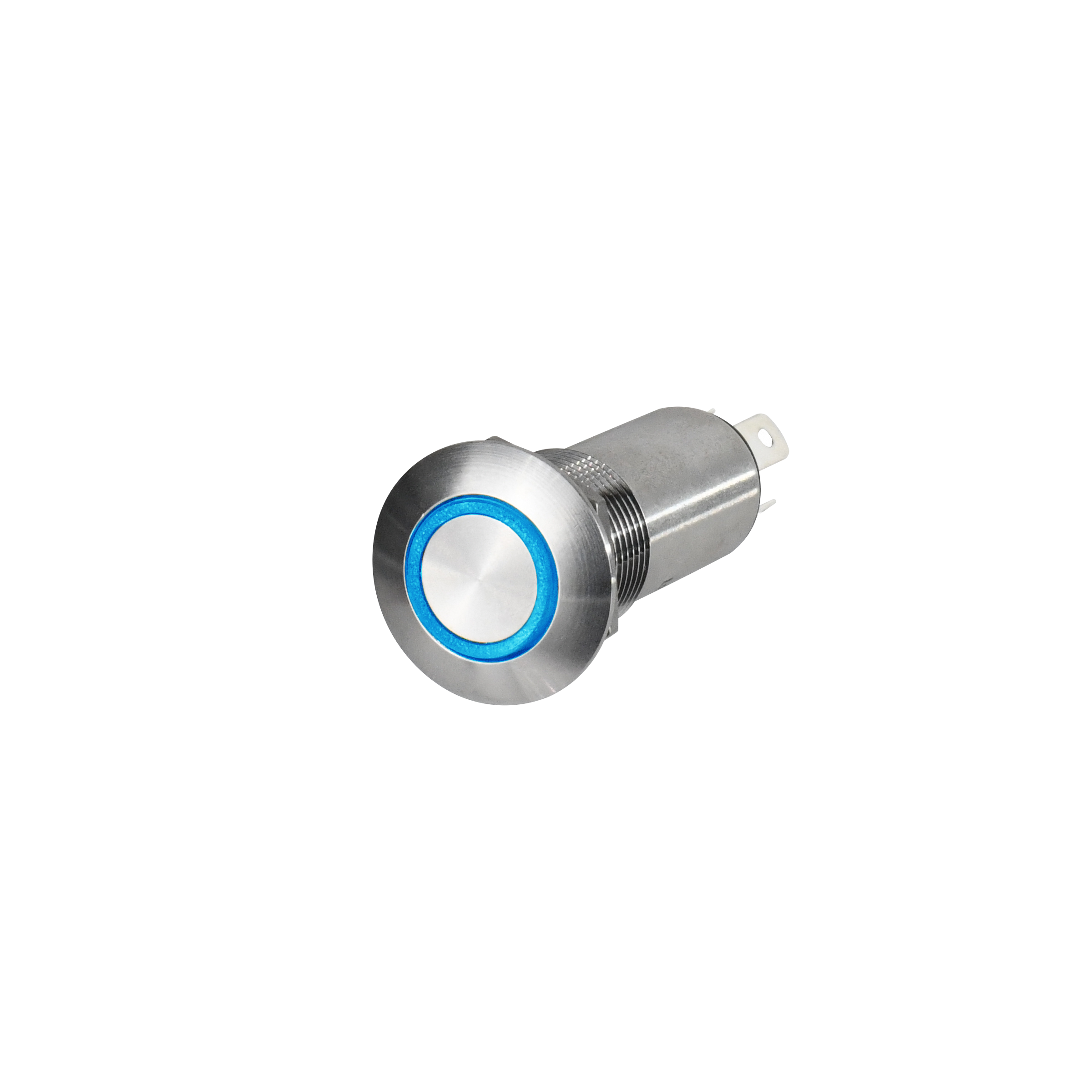

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31P313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP5-V31P313

Detailed Description

The LP5-V31P313 is a durable and reliable pushbutton switch designed for demanding environments. Featuring a low profile flat button actuator with a sleek round shape, this switch is not only functional but also aesthetically pleasing. With a clear cap and blue illumination, it stands out while providing visual feedback. The stainless steel housing and vandal-resistant design ensure longevity and security, making it ideal for outdoor or high-traffic applications. Its sealed construction and IP6K8S rating guarantee protection against dust and water ingress, while the solder termination type allows for easy installation. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and a contact material of brass with silver plating, it offers reliable performance in a wide range of electrical systems. The LP5-V31P313 is a top choice for those seeking a high-quality, illuminated pushbutton switch for their industrial or commercial needs.
