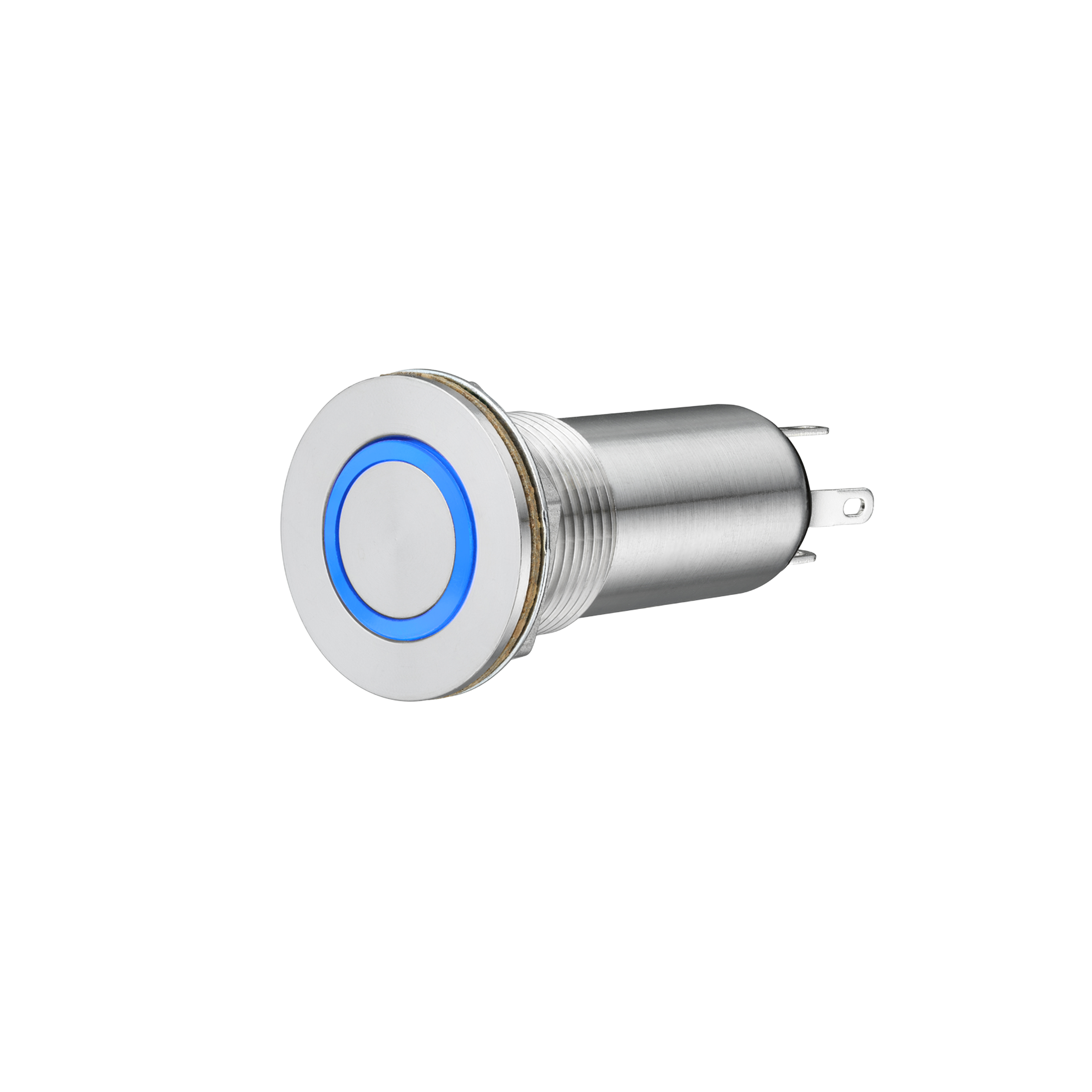

LP5-V31P315

OTTLP5_V31P315
Heilind Number:OTTLP5-V31P315
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31P315
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31P315
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP5-V31P315

Detailed Description

The LP5-V31P315 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable stainless steel housing with a sleek silver finish, this switch is not only stylish but also highly resistant to vandalism. The illuminated blue button allows for easy visibility in low-light conditions, while the IP6K8S rating ensures protection against dust and water ingress. With a contact rating of 5A and a lifespan of 25,000 cycles, this switch is suitable for a wide range of applications. The SPST contact configuration and Off-On switch function provide simple and efficient control. Whether used in industrial machinery, transportation equipment, or outdoor installations, the LP5-V31P315 guarantees reliable performance in even the harshest environments.
