LP5-V31Q313

OTTLP5_V31Q313
Heilind Number:OTTLP5-V31Q313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V31Q313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

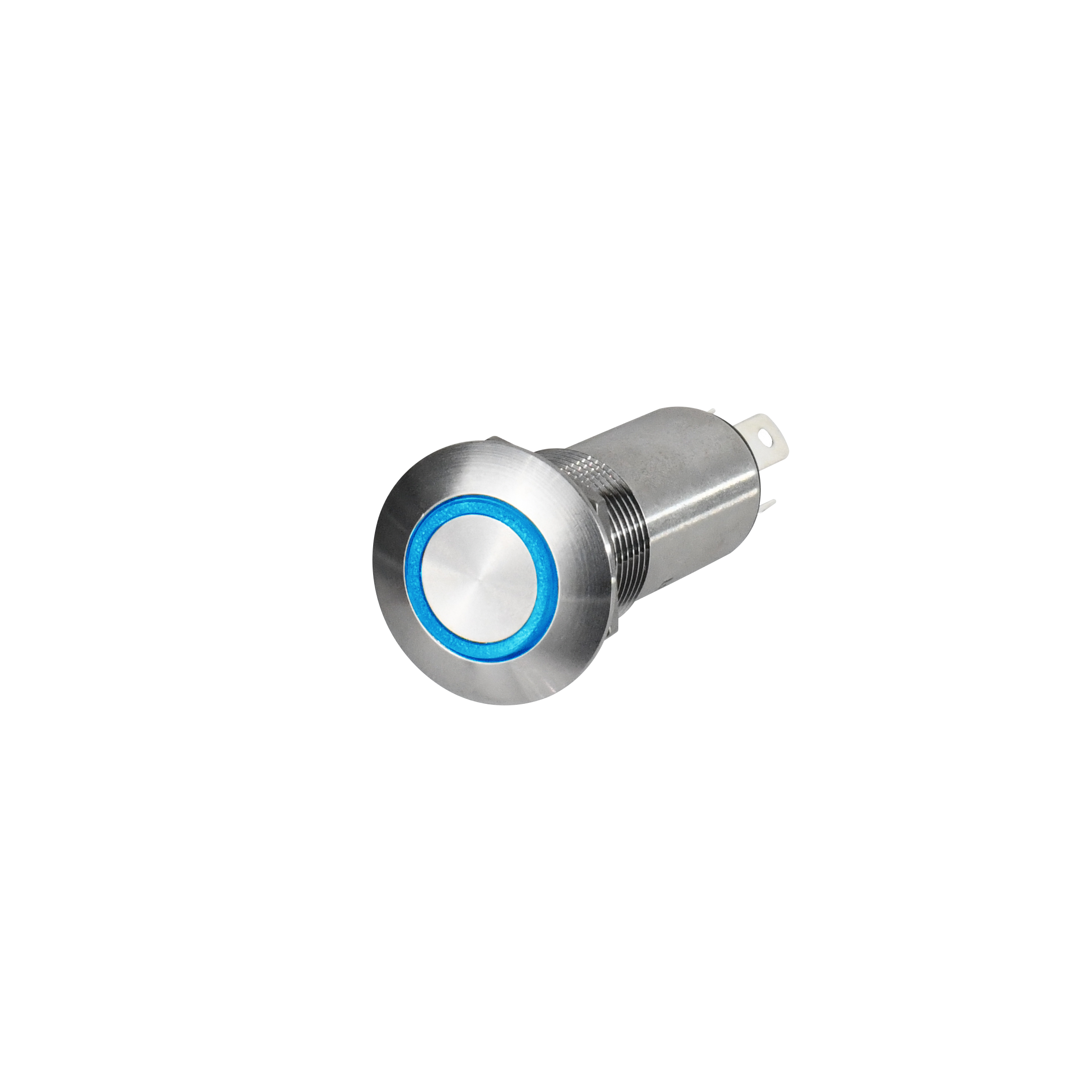

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V31Q313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V31Q313

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Stainless Steel Alternate Action Pushbutton Switch, featuring a sleek design with a clear cap and silver casing. With an IP6K8S rating, this switch is sealed for protection against dust and water ingress, making it ideal for outdoor and industrial applications. The low profile flat button actuator, crafted from stainless steel, provides a durable and ergonomic interface. Operating at a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch offers reliable performance in various power systems. The blue illumination, powered by 12V, enhances visibility in low-light environments. With a contact configuration of SPST and contact material of brass with silver plating, it ensures secure and efficient connectivity. Panel mount installation and solder termination make it easy to integrate into your setup. Built for longevity, this switch boasts a durability rating of 25,000 cycles and can withstand temperatures ranging from -55°C to 85°C. Perfect for demanding environments, the LP5-V31Q313 is the ultimate choice for high-quality pushbutton switches.
