LP5-V32G332

OTTLP5_V32G332
Heilind Number:OTTLP5-V32G332
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V32G332
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

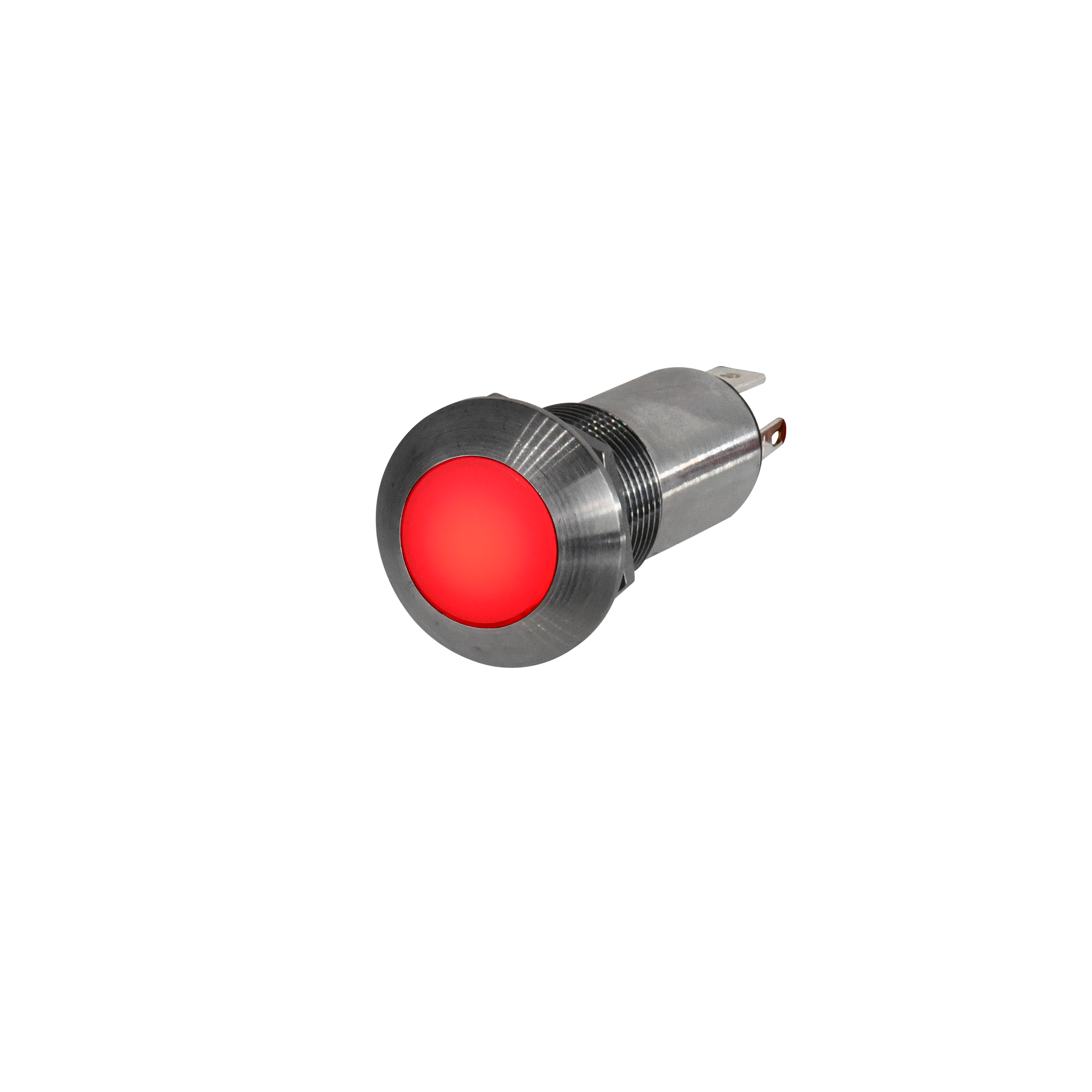

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V32G332
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-V32G332

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Stainless Steel Alternate Action Pushbutton Switch, designed for durability and reliability in demanding environments. With a clear lens and red illumination, this panel mount switch features a high-profile curved button actuator made of stainless steel, providing tactile feedback and a sleek appearance. The SPDT contact configuration ensures versatile functionality, with a 5A current rating and 25,000 cycle durability. Operating efficiently in temperatures ranging from -55°C to 85°C, this switch is suitable for a wide range of applications. Rated for IP6K8S ingress protection, it offers robust performance even in harsh conditions. Whether used in industrial machinery, transportation systems, or outdoor equipment, the LP5-V32G332 guarantees long-lasting performance and ease of use.
