LP5-V32Q312

OTTLP5_V32Q312
Heilind Number:OTTLP5-V32Q312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V32Q312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

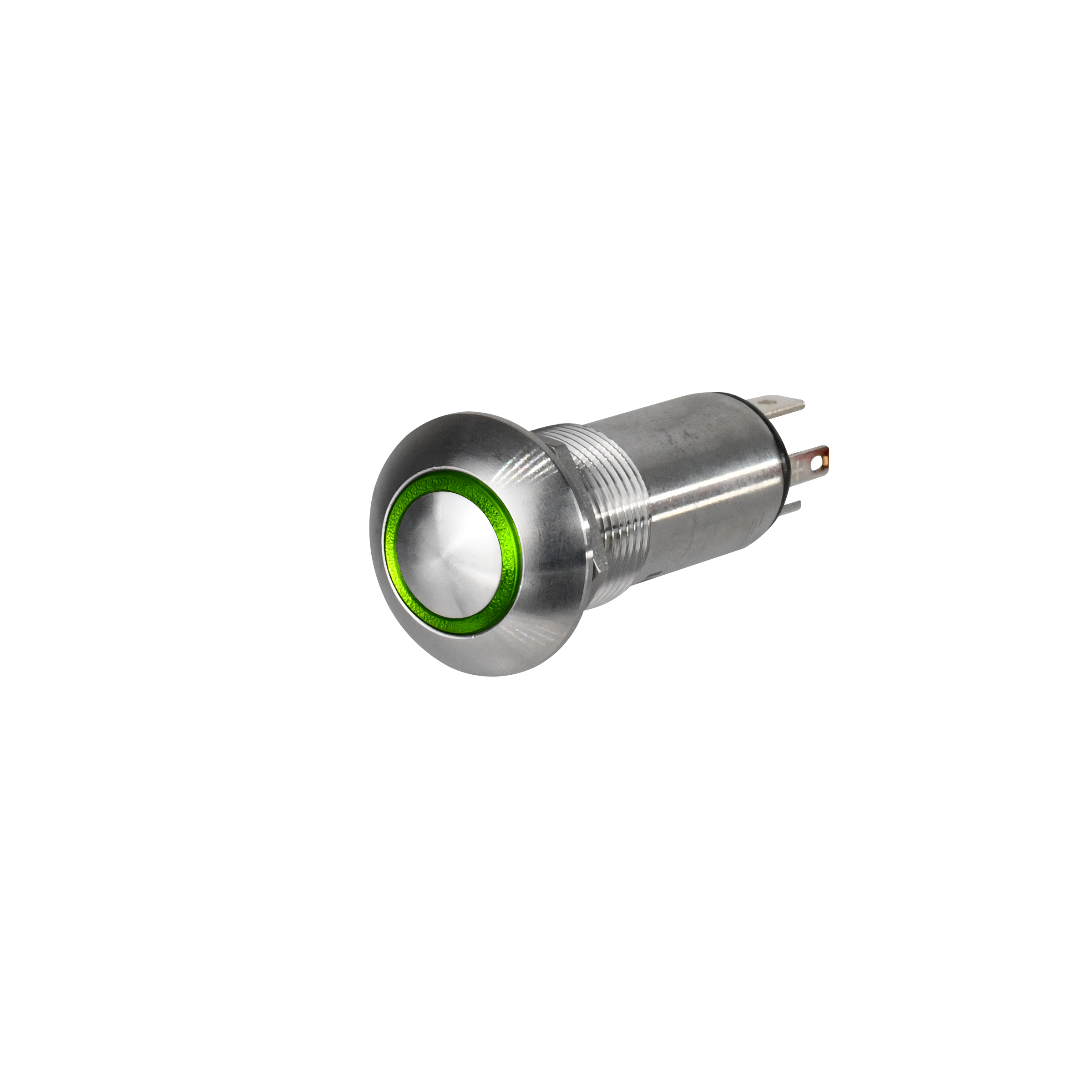

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V32Q312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V32Q312

Detailed Description

The LP5-V32Q312 is a rugged and reliable illuminated pushbutton switch designed for demanding environments. Featuring a clear cap with blue LED illumination, this vandal-resistant switch is constructed with a stainless steel housing and high-profile curved button actuator for durability. With an IP6K8S rating for dust and water resistance, along with a wide operating temperature range from -55°C to 85°C, it is suitable for use in a variety of industrial applications. The switch offers a high current rating of 5A and a long lifespan of 25,000 cycles, ensuring reliable performance over time. Its panel mount design and solder termination make installation easy, while its SPDT contact configuration allows for versatile switching options. Whether used in aerospace, transportation, or industrial machinery, the LP5-V32Q312 is a dependable choice for critical control applications.
