LP5-V51Q313

OTTLP5_V51Q313
Heilind Number:OTTLP5-V51Q313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V51Q313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

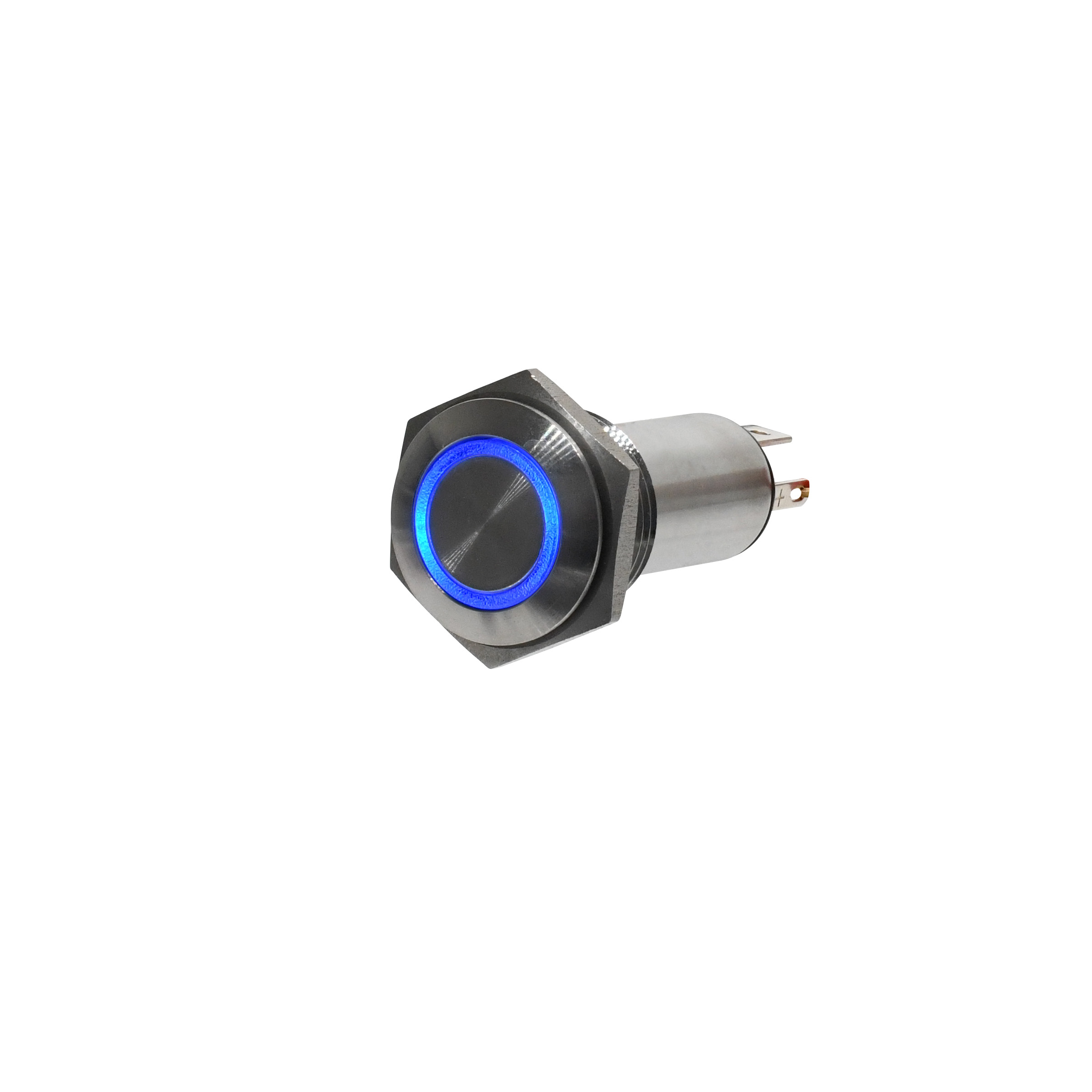

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V51Q313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-V51Q313

Detailed Description

Introducing the LP5-V Series Vandal Resistant Pushbutton Switch, featuring a durable stainless steel construction and a sleek silver case. This switch is designed for reliability in harsh environments, with an IP6K8S rating for dust and water resistance. The low profile flat button actuator, made of stainless steel, offers a comfortable and responsive user experience. With a blue illuminated ring, this switch provides clear visual feedback. Ideal for panel mounting, it has a high current rating of 5A and a long lifespan of 25,000 cycles. The alternate action Off-On switch function, along with the SPST contact configuration, ensures precise control. Suitable for both AC and DC applications, with voltage ratings of 115VAC and 28VDC respectively, this switch operates reliably in a wide range of temperatures from -55°C to 85°C. Perfect for industrial and commercial use, the LP5-V Series Pushbutton Switch is a versatile and robust solution for your control panel needs.
