LP5-V51R313

OTTLP5_V51R313
Heilind Number:OTTLP5-V51R313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V51R313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

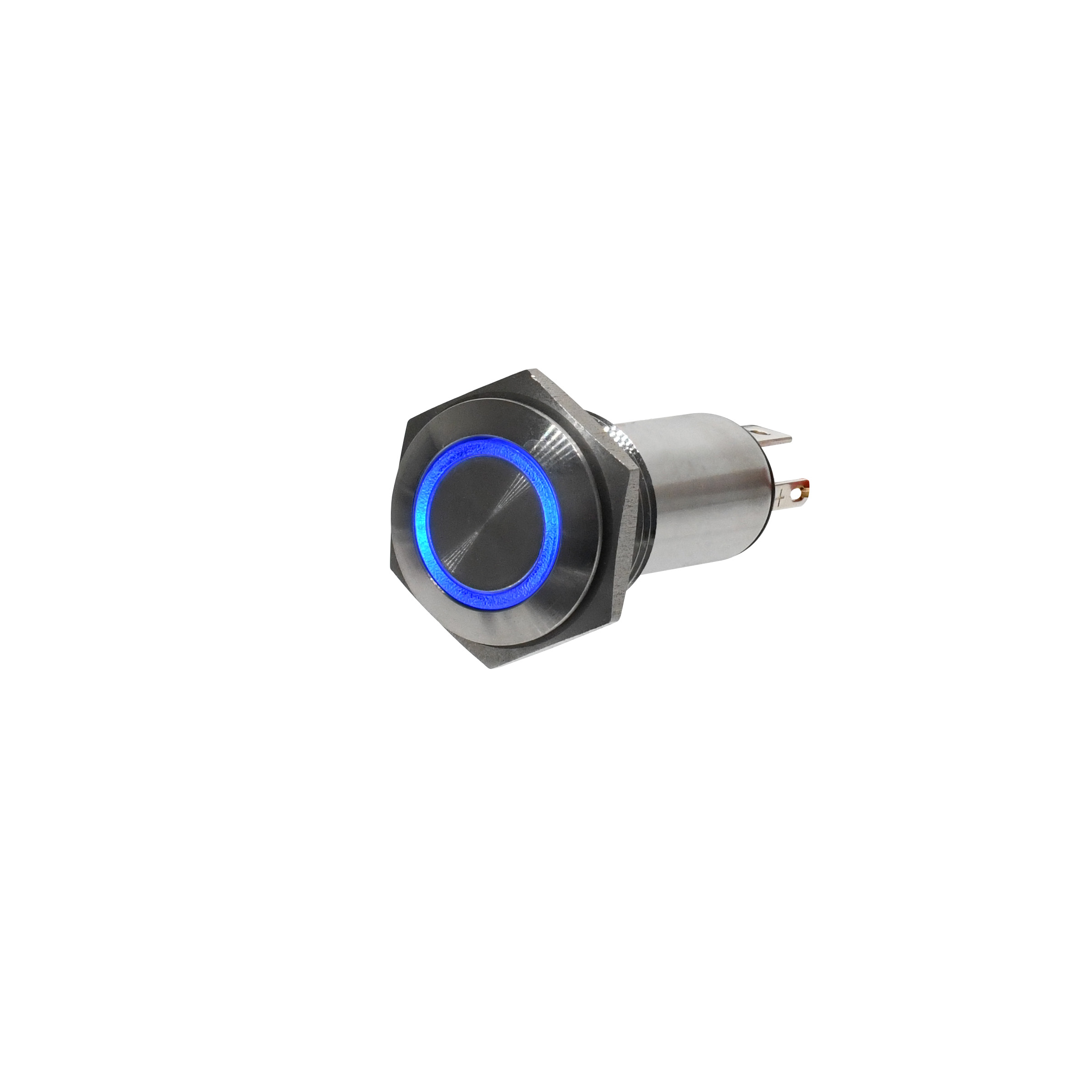

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V51R313
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Low Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:24 V
SKU:OTTLP5-V51R313

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Stainless Steel Pushbutton Switch, featuring a sleek low profile flat button design in a durable silver case with clear cap. Designed for reliability in harsh environments, this switch boasts an IP6K8S rating for dust and water resistance. With a contact material of brass and silver plating, it ensures optimal conductivity. The SPST contact configuration, along with Off-On switch function, provides easy operation. Panel mountable with solder termination, this switch is suitable for a wide range of applications. Illuminated with a vibrant blue light, it offers enhanced visibility. With a voltage rating of 115VAC and 28VDC, it is suitable for various power systems. The stainless steel construction and 25,000 cycle durability rating make it a long-lasting solution. Operating temperature range from -55°C to 85°C, it is suitable for use in extreme conditions. Perfect for industrial, automotive, and aerospace applications, the LP5-V Series is a reliable choice for demanding environments.
