LP5-V52B215

OTTLP5_V52B215
Heilind Number:OTTLP5-V52B215
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V52B215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

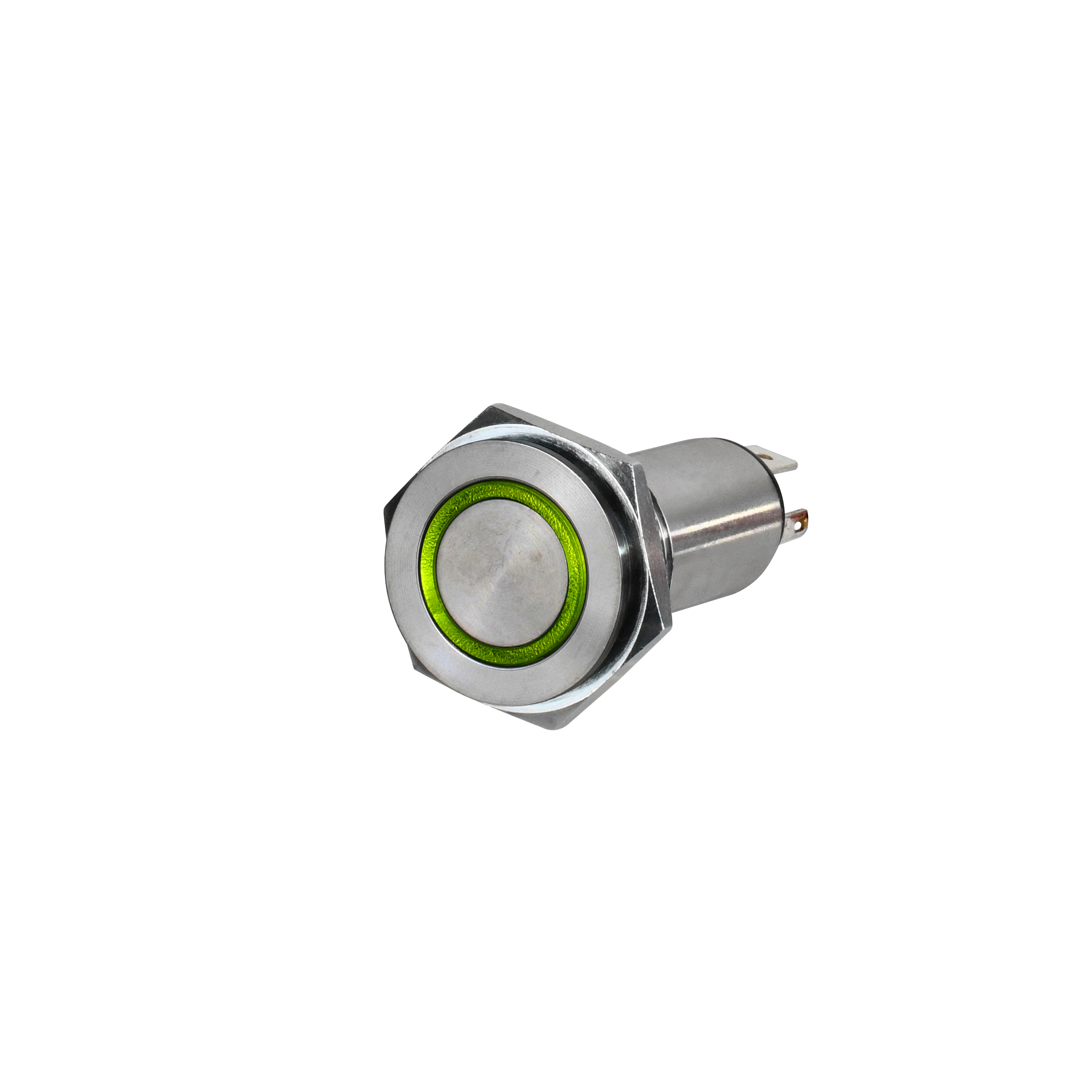

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V52B215
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.05 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP5-V52B215

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, a durable and reliable solution for your panel mounting needs. Featuring a clear cap and silver case, this switch is not only aesthetically pleasing but also IP6K4S rated for protection against dust and water ingress. The stainless steel housing and actuator ensure long-lasting performance, with a durability rating of 25,000 cycles. With a maximum operating temperature of 85°C and a minimum of -55°C, this switch is suitable for a wide range of environments. The green illumination, powered by 2V, provides clear indication of the switch status. The SPDT contact configuration and 5A current rating make it versatile for various applications. Trust in the LP5-V52B215 for secure and efficient switching operations.
