LP5-V52K312

OTTLP5_V52K312
Heilind Number:OTTLP5-V52K312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V52K312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

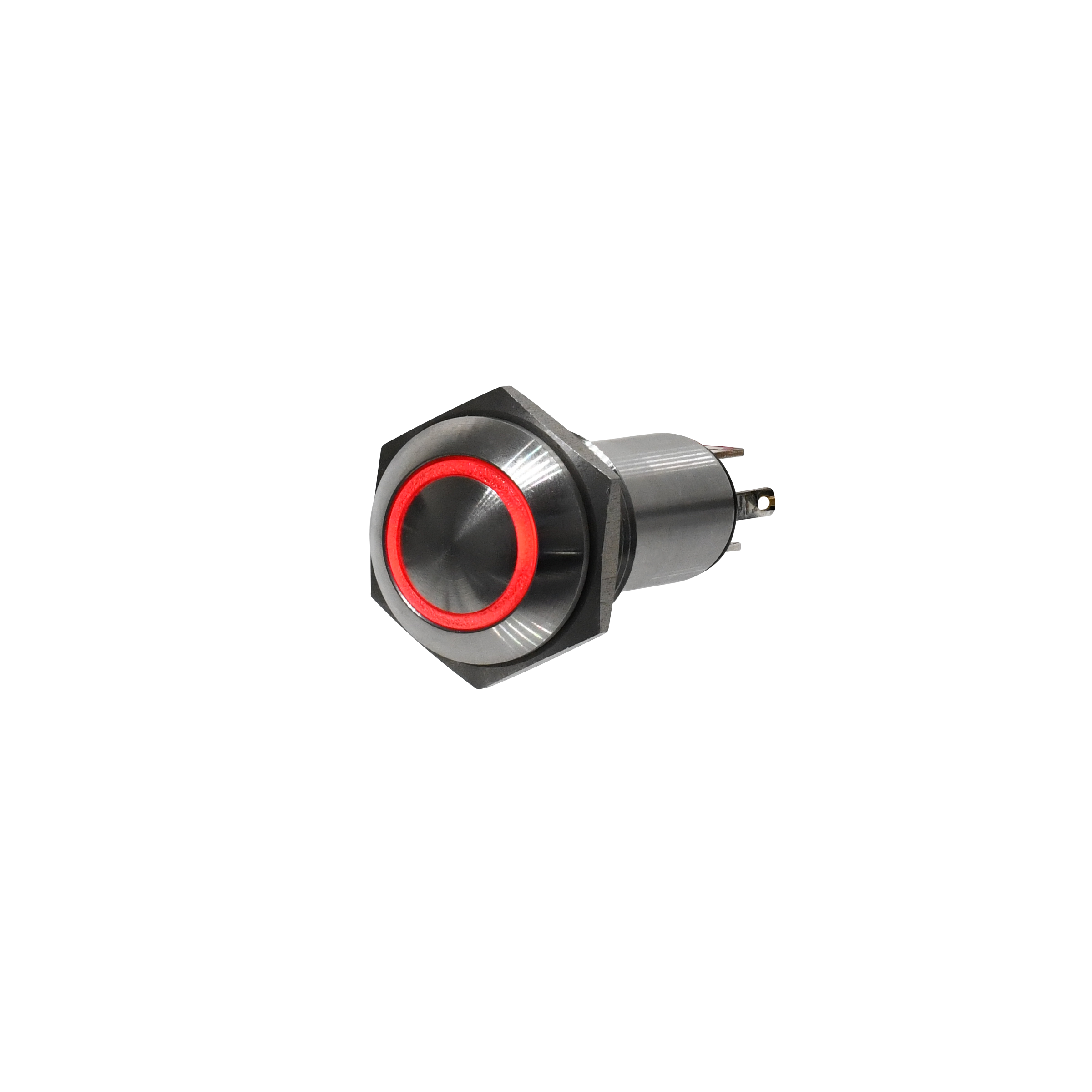

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V52K312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-V52K312

Detailed Description

The LP5-V52K312 is a high-performance pushbutton switch designed for durability and reliability in demanding environments. Featuring a sleek silver case with a clear illuminated button, this switch is not only visually striking but also functional, with an IP6K8S rating for protection against dust and water ingress. The stainless steel housing and actuator ensure long-lasting performance, while the silver contact plating and brass contact material guarantee excellent conductivity. With a maximum operating temperature of 85°C and a minimum of -55°C, this switch is suitable for a wide range of applications. The SPDT contact configuration and On-On switch function offer versatility in use, while the solder termination type makes installation easy. Whether used in industrial machinery or outdoor equipment, the LP5-V52K312 is a dependable choice for any project.
