LP5-V71G312

OTTLP5_V71G312
Heilind Number:OTTLP5-V71G312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V71G312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

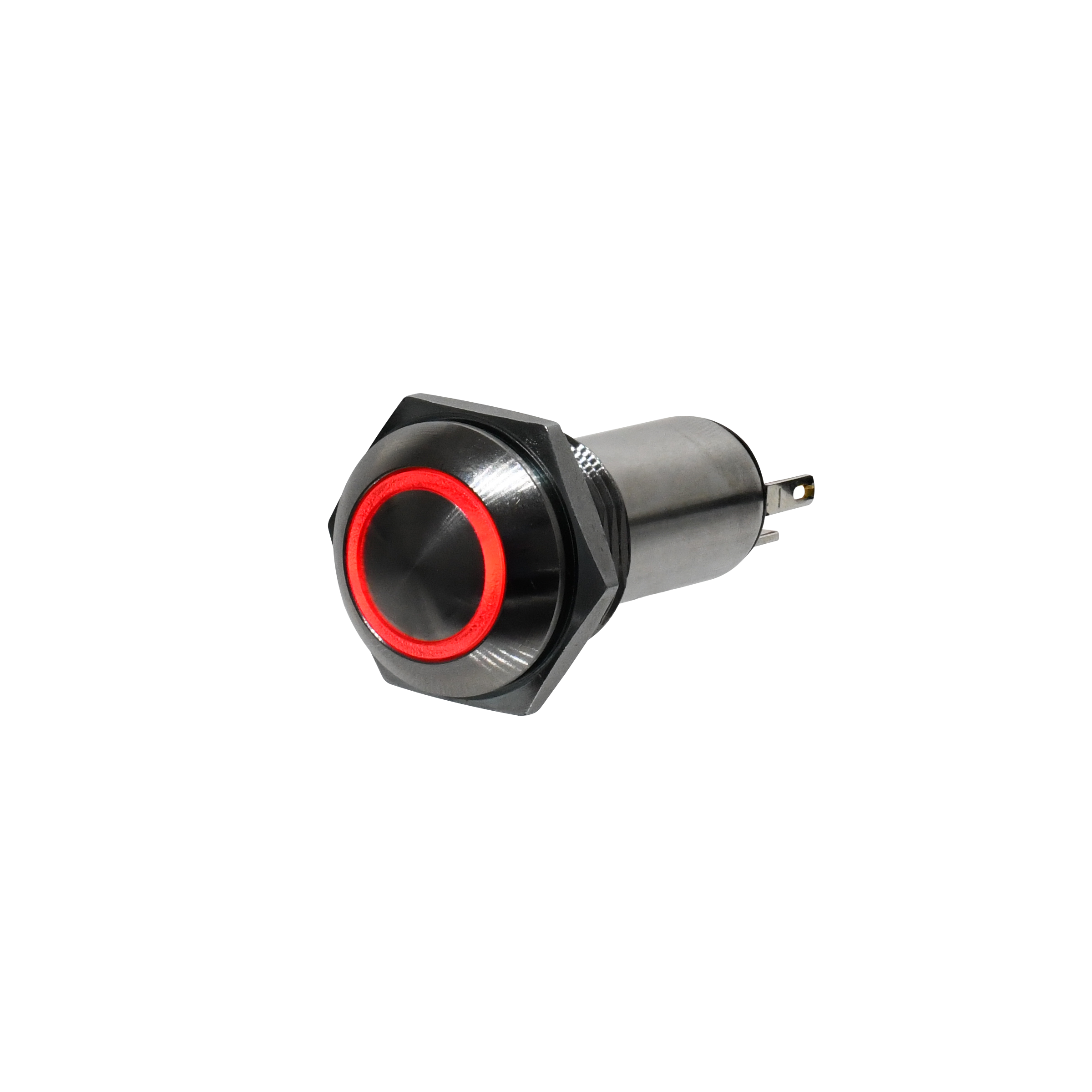

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V71G312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-V71G312

Detailed Description

The LP5-V Series Illuminated Vandal Resistant Pushbutton Switch ( LP5-V71G312) is a durable and reliable solution for your panel mount switching needs. With a high-profile curved button actuator made of stainless steel, this switch is designed for longevity and performance in harsh environments. Featuring a clear cap and silver case, it offers a sleek and professional appearance. The red illumination, powered by 12V, provides clear visibility in any lighting conditions. With a contact configuration of SPST and a current rating of 5A, it ensures efficient and safe operation. Its sealed construction, along with an IP6K8S rating, guarantees protection against dust and water ingress. Whether used in industrial machinery or outdoor applications, this switch is built to withstand extreme temperatures ranging from -55°C to 85°C. Boasting a durability rating of 25,000 cycles, it offers long-term reliability. The LP5-V71G312 is the ideal choice for demanding situations where performance and durability are paramount.
