LP5-V71L312

OTTLP5_V71L312
Heilind Number:OTTLP5-V71L312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V71L312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

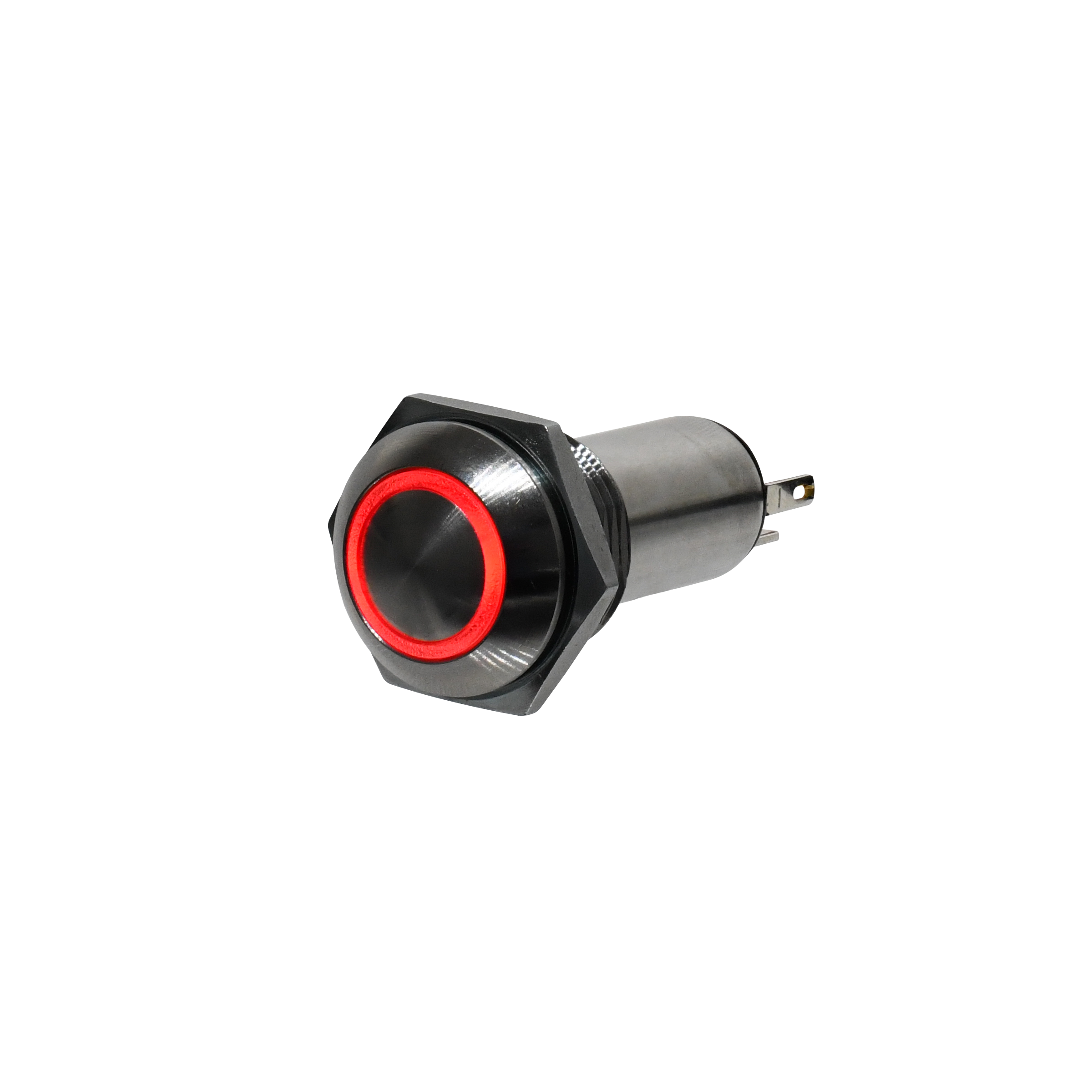

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V71L312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-V71L312

Detailed Description

Introducing the LP5-V Series Vandal Resistant Pushbutton Switch, a rugged and reliable solution for demanding environments. Featuring a sleek stainless steel construction with a silver case and clear cap, this switch is not only durable but also visually appealing. The high profile curved button actuator, illuminated with a vibrant green LED, offers easy operation and clear indication of power status. With an IP6K8S rating for dust and water resistance, as well as a wide operating temperature range from -55°C to 85°C, this switch is suitable for a variety of industrial applications. The SPST contact configuration, with silver-plated brass contacts, ensures high conductivity and longevity. Panel mount installation with solder termination makes it easy to integrate into your system. Whether in a control panel or outdoor kiosk, the LP5-V71L312 is the perfect choice for reliable and secure switching.
