LP5-V71V312

OTTLP5_V71V312
Heilind Number:OTTLP5-V71V312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V71V312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

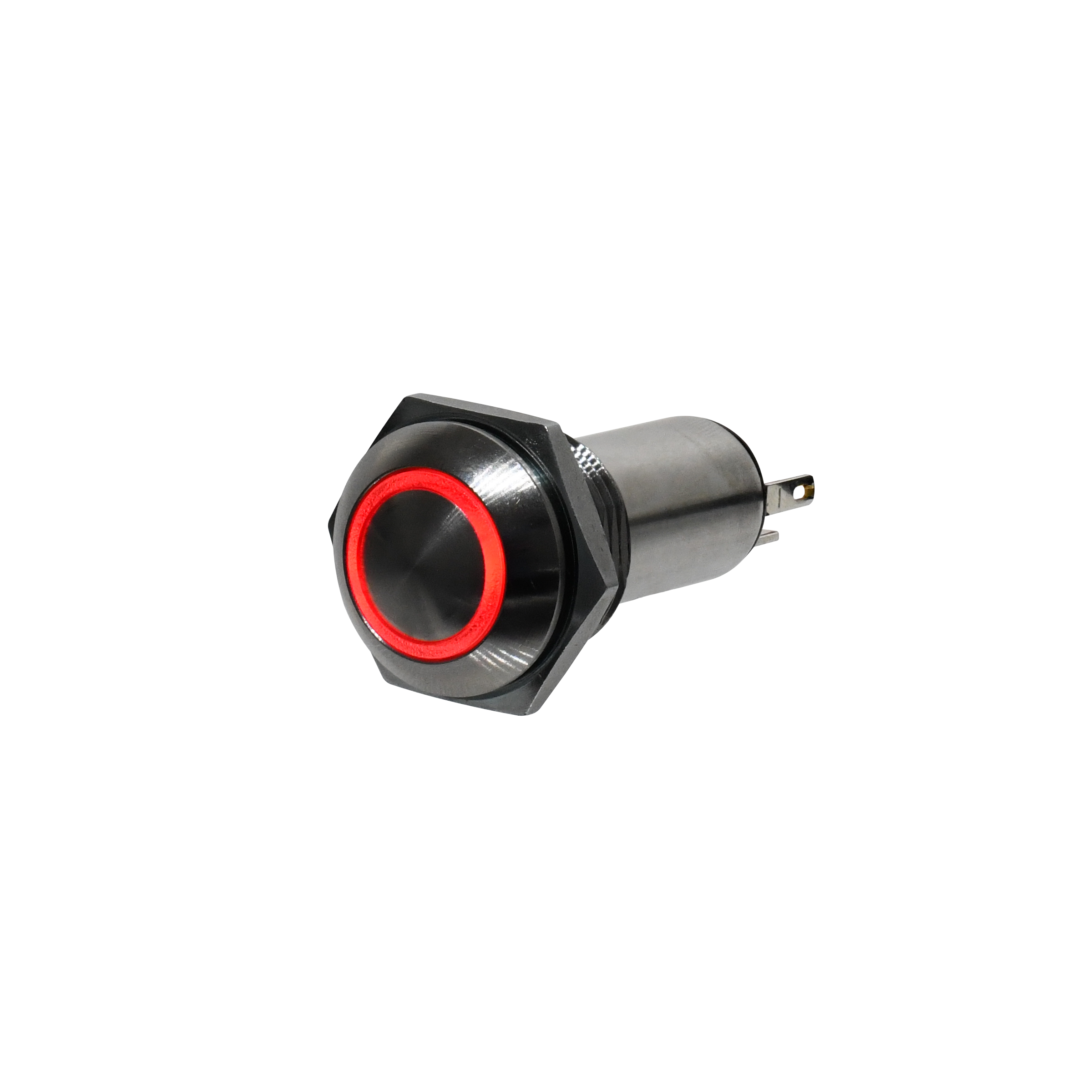

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V71V312
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:24 V
SKU:OTTLP5-V71V312

Detailed Description

The LP5-V series push button switch, SKU LP5-V71V312, is a durable and versatile option for a variety of applications. Featuring a high-profile curved button actuator and a round shape, this switch offers a comfortable and easy-to-use design. The clear cap and deep green illumination provide a visually appealing element while the stainless steel housing ensures vandal resistance. With an IP6K8S rating, this switch is sealed against dust and water ingress, making it suitable for harsh environments. The SPST contact configuration, silver contact plating, and brass contact material guarantee reliable performance. Operating at a voltage rating of 115VAC and 28VDC, this switch is suitable for a range of power systems. Panel mount installation with solder termination offers easy integration. With a durability rating of 25,000 cycles and an operating temperature range of -55°C to 85°C, this switch is built to last. Perfect for industrial, automotive, and marine applications, the LP5-V series push button switch is a top choice for high-reliability performance.
