LP5-V72G314

OTTLP5_V72G314
Heilind Number:OTTLP5-V72G314
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V72G314
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

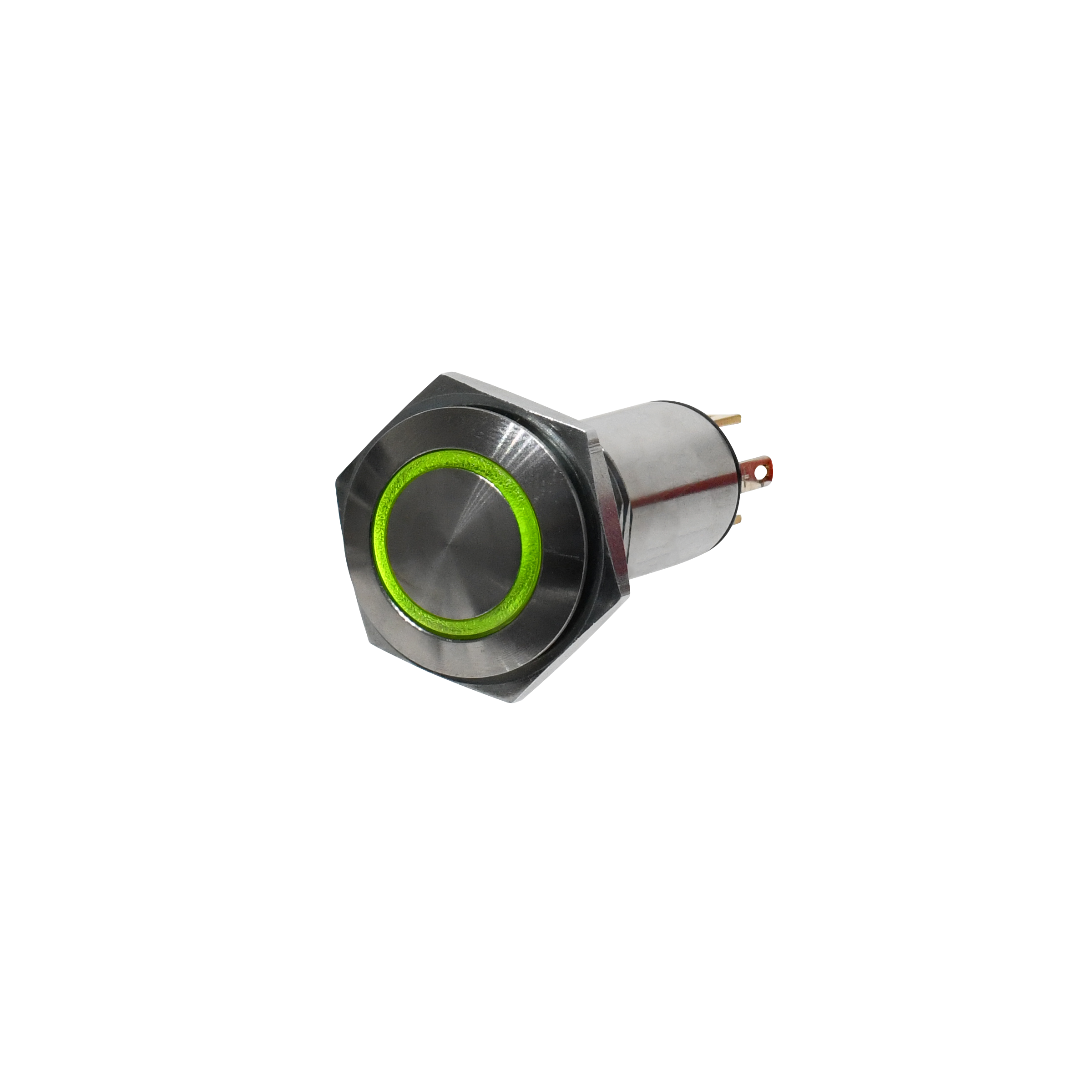

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V72G314
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Low Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.13 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-V72G314

Detailed Description

The LP5-V Series Illuminated Vandal Resistant Stainless Steel Pushbutton Switch, with SKU LP5-V72G314, is a robust and reliable component for panel-mounted applications. Featuring a clear button with a low profile curved design, this switch offers tactile feedback and easy actuation. The red LED illumination provides clear visibility in dimly lit environments, with a 12V voltage rating for efficient operation. The switch is sealed to IP6K8S standards, ensuring protection against dust and water ingress. With a durable stainless steel housing and brass contacts plated with silver, this switch is built for longevity, with a 25,000 cycle durability rating. It has a SPDT contact configuration, suitable for On-On switch functions, with a 5A current rating and 115VAC/28VDC voltage ratings. Operating temperature ranges from -55°C to 85°C, making it suitable for a wide range of environments. Perfect for industrial, automotive, or outdoor applications, the LP5-V Series switch guarantees reliable performance in demanding conditions.
