LP5-V74H314

OTTLP5_V74H314
Heilind Number:OTTLP5-V74H314
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V74H314
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

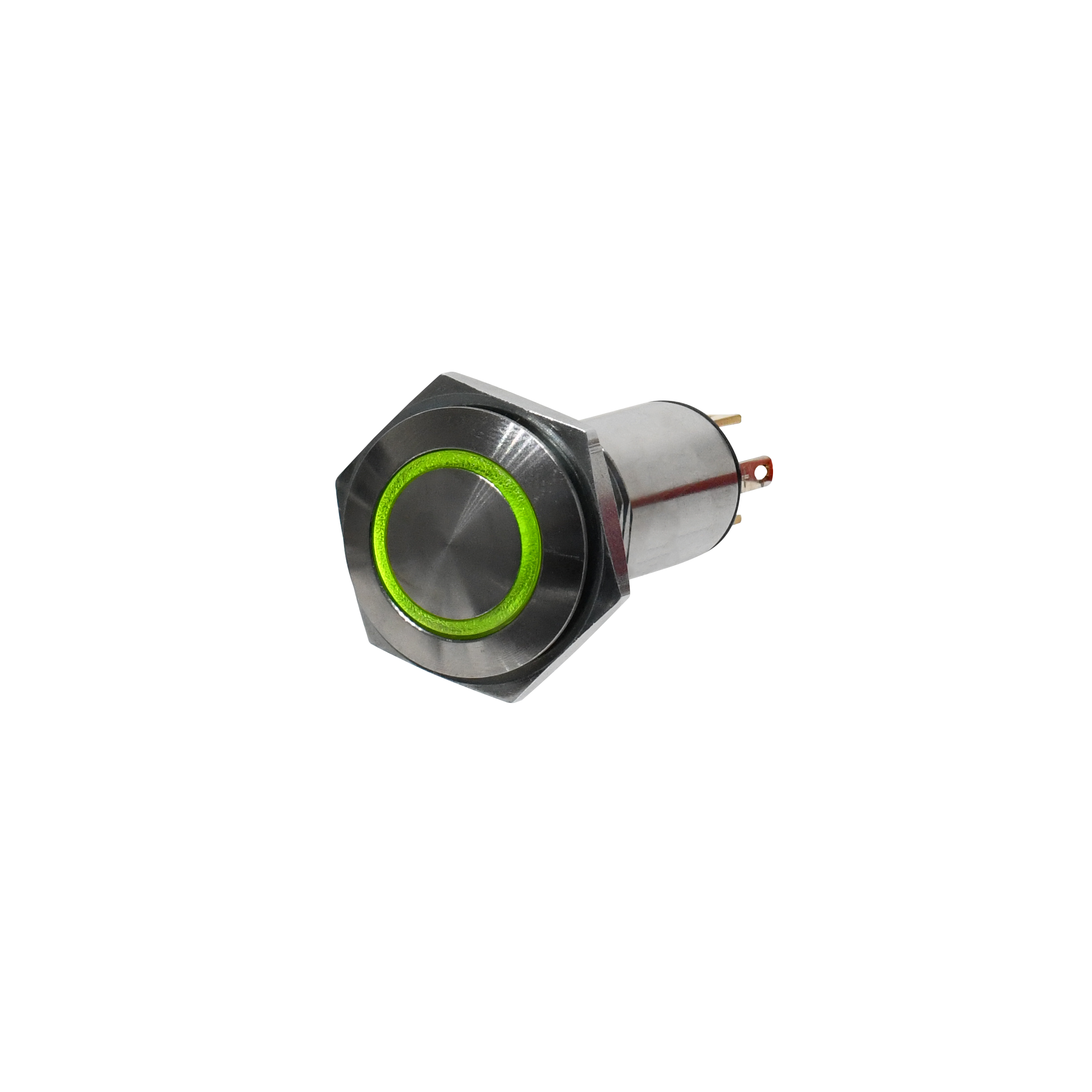

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V74H314
Series:LP5-V
Cap Color:Translucent
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Curved)
Actuator Shape:Round
Current Rating:10 mA
Mounting Style:Panel Mount
Actuator Length:.13 in
Contact Plating:Gold
Switch Function:On-On
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):200,000 Cycles
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-V74H314

Detailed Description

Illuminate your control panel with the LP5-V Series Vandal Resistant Pushbutton Switch, featuring a sleek translucent cap and durable stainless steel construction. Its low profile curved button, plated with gold, offers a smooth actuation experience. This sealed switch, rated for 200,000 cycles, is perfect for demanding environments. With an IP6K8S rating for dust and water resistance, it ensures reliable performance in any conditions. The green illuminated button, powered by a 12V voltage, adds a touch of sophistication while providing clear indication. Panel-mountable and solder-terminable, this switch is easy to integrate. Operating from -55°C to 85°C and rated for 5VDC, it guarantees functionality in a wide range of applications. Upgrade your control system with the LP5-V74H314 for a combination of style and durability.
