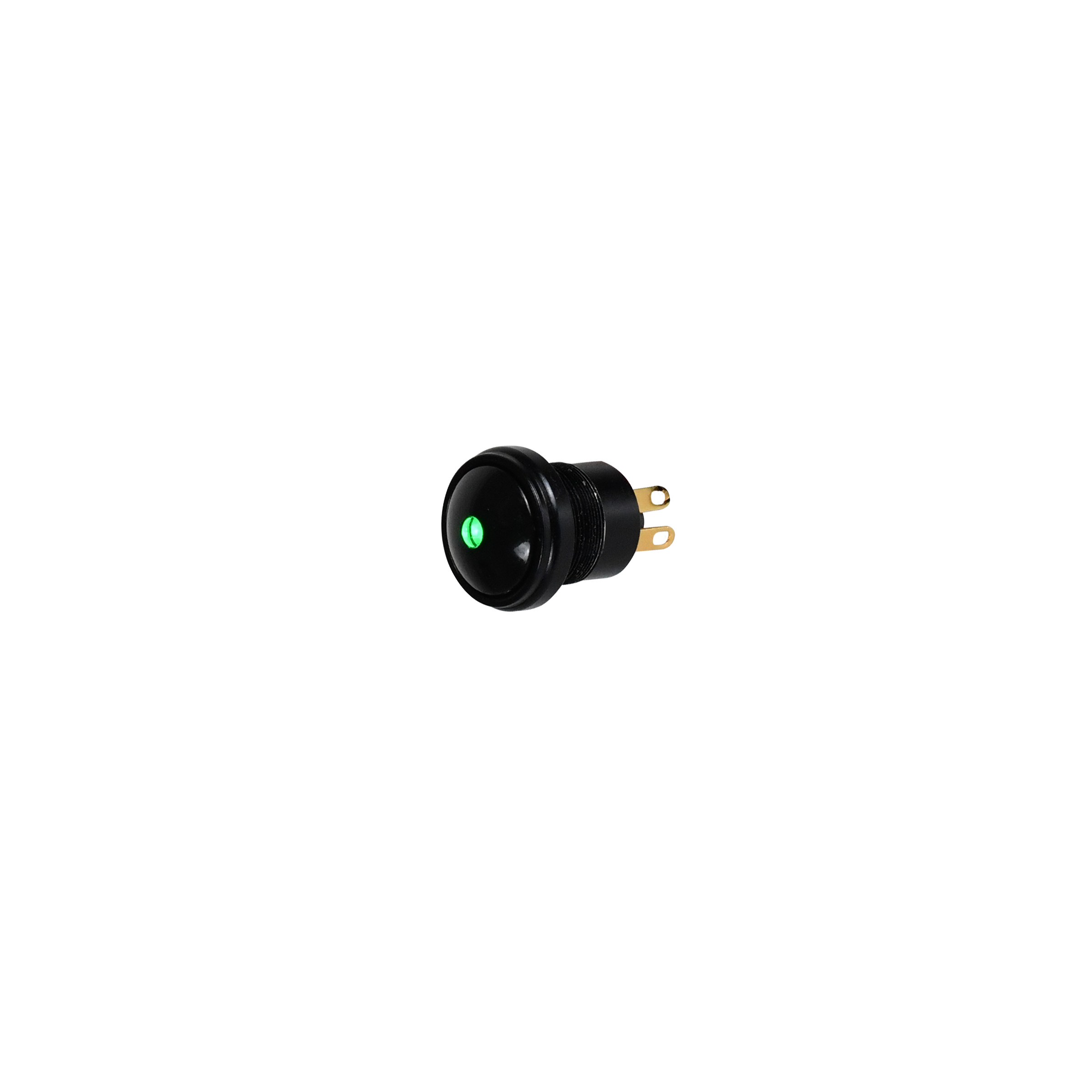

LP7-11112D22

OTTLP7_11112D22
Heilind Number:OTTLP7-11112D22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-11112D22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated Momentary Action Pushbutton

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-11112D22
Series:LP7
Housing Material:Aluminum
Contact Material:Gold Plated
Contact Plating:Gold Plated Silver Alloy
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flush Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.23 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):1,000,000 Cycles
Mounting Style:Panel Mount
Current Rating:1 - 100 mA
Voltage Rating (DC):1 - 28 VDC
Illumination Color:Blue
Illumination Voltage:2 V
SKU:OTTLP7-11112D22

Detailed Description

The LP7 series Push Button Switch, SKU LP7-11112D22, presents a sleek and durable design perfect for various applications. Featuring a black cap and case, this switch is not only visually appealing but also highly functional with an IP6K8S rating for dust and water resistance. Its round Flush Dome Lightpipe actuator, illuminated in blue, offers easy visibility and operation. With a contact configuration of SPST-NO and gold plating for enhanced conductivity, it guarantees reliable performance. The switch is sealed for added protection and boasts a durability rating of 1,000,000 cycles, making it a long-lasting solution. Suitable for panel mounting and solder termination, it is versatile and easy to install. Operating at a voltage range of 1-28 VDC and a current rating of 1-100 mA, it ensures efficient functionality. Whether in automotive, industrial, or electronic applications, this illuminated momentary action pushbutton switch is a must-have component.
